15-35kV 200A Epoxy Resin Loadbreak Bushing Insert for Pad-mounted Transformers with Extreme Climate Resistance
If you are interested in our products or need technical supports and service,please contact us as bellowing:
- Details

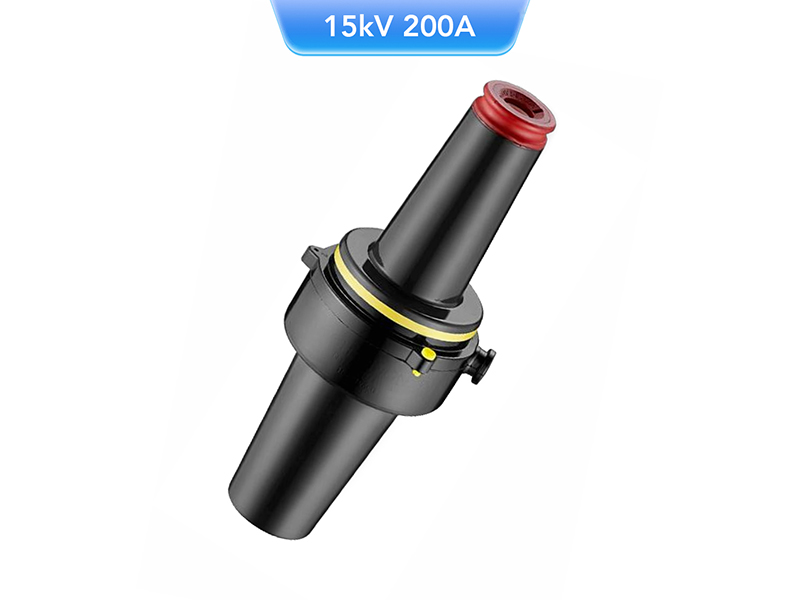

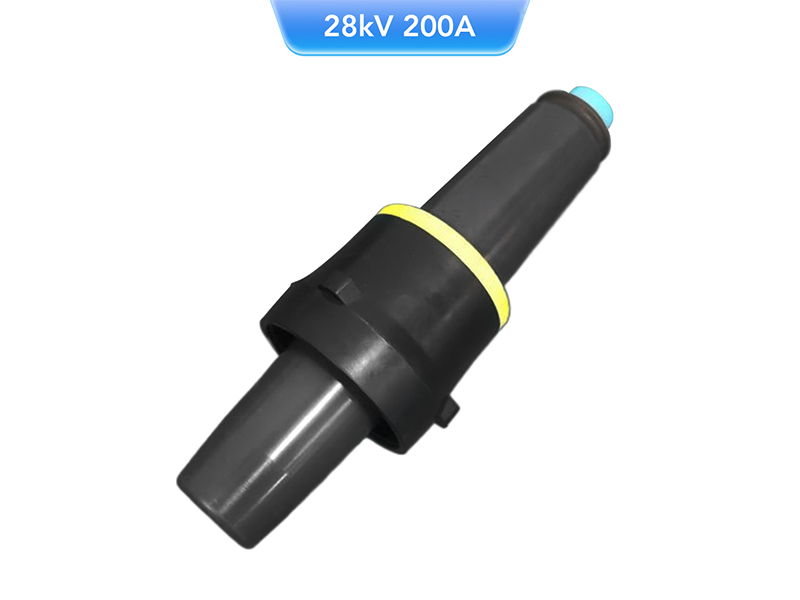

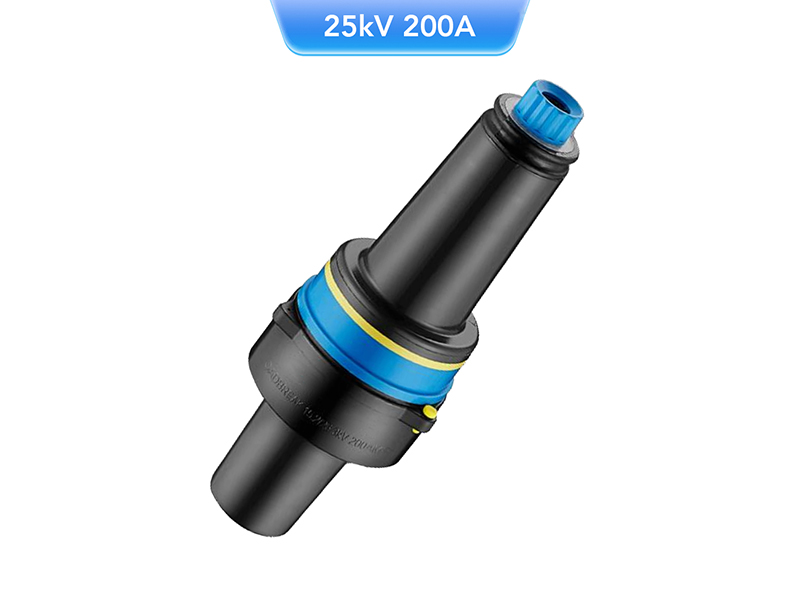

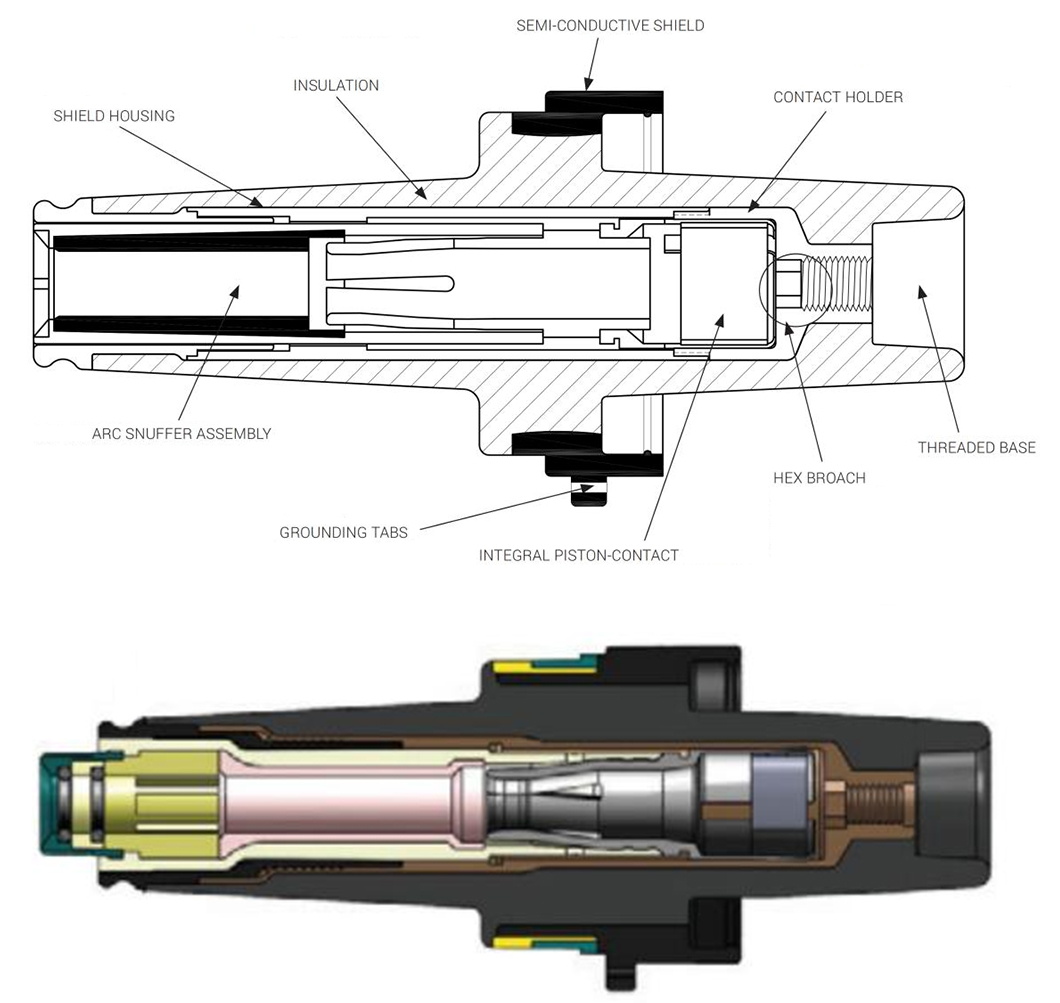

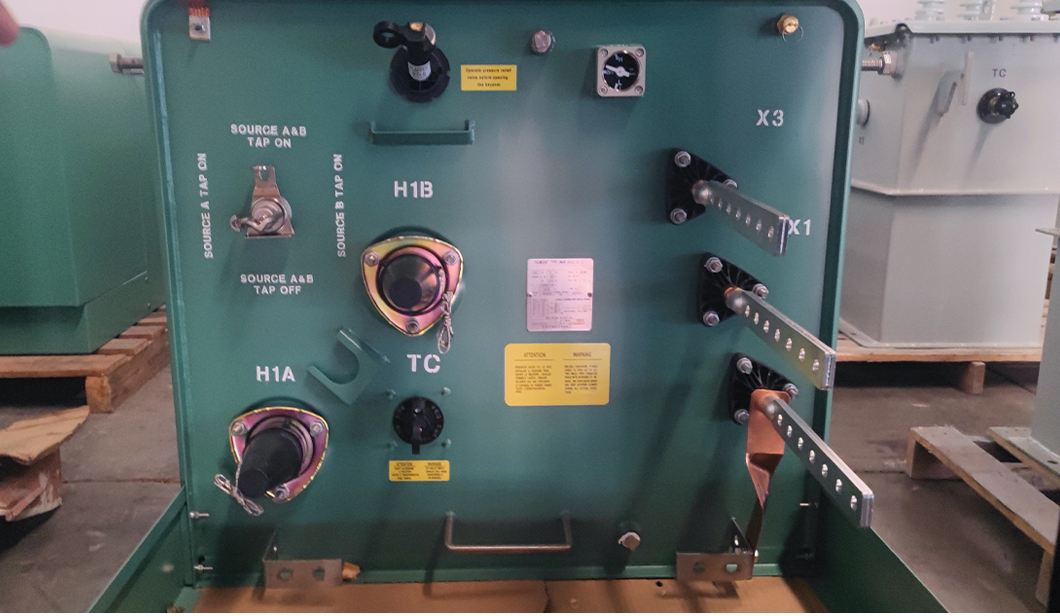

The Bushing Insert threads onto a standard 200A bushing well.The combination of the bushing well and bushing insert perform the same function as a one piece integral loadbreak bushing, while providing the flexibility to change the bushing insert in the field, without taking the transformer or other apparatus out of service. The bushing insert and loadbreak elbows are the primary components in all ANSI/IEEE loadbreak connections.
The Bushing Insert incorporates an all copper current path.This provides reliable and consistent performance under all conditions.
The Bushing Insert incorporates an all copper current path.This provides reliable and consistent performance under all conditions.
The Bushing Insert meets all the requirements of IEEE Standard 386,and is fully inter changeable with other products have the same interface. When installed with mating components, the bushing insert provides a fully shielded and fully submersible connection for loadbreak applications.
| Rated Voltage（Phase-to-Phase) | 15kV | 25kV | 25/28kV | 35kV |
| Withstand Voltage(50/60Hz) | 34kV/1min. | 40kV/1min. | 45kV/1min. | 50kV/1min. |
| BIL and Full Wave Crest | 95kV | 125kV | 125kV | 150kV |
| Minimum Corona Voltage Level | 11kV | 19kV | 21.5kV | 26kV |
| Continuous Current | 200A | 200A | 200A | 200A |
