1.2kV BIL 30kV 417-1200A Molded Integral LV Bushing For Pad-mounted Transformers
- Details
IEEE Certified Molded Integral LV Bushings for Pad-Mounted Transformers
1.2kV Low-Voltage Bushings | 417A, 630A & 1200A
These IEEE Certified molded integral low-voltage bushings are designed for pad-mounted distribution transformers. Combining a C11000 copper conductor with a glass-reinforced nylon resin insulation body, they provide an insulated connection between the transformer’s internal leads and external terminals.

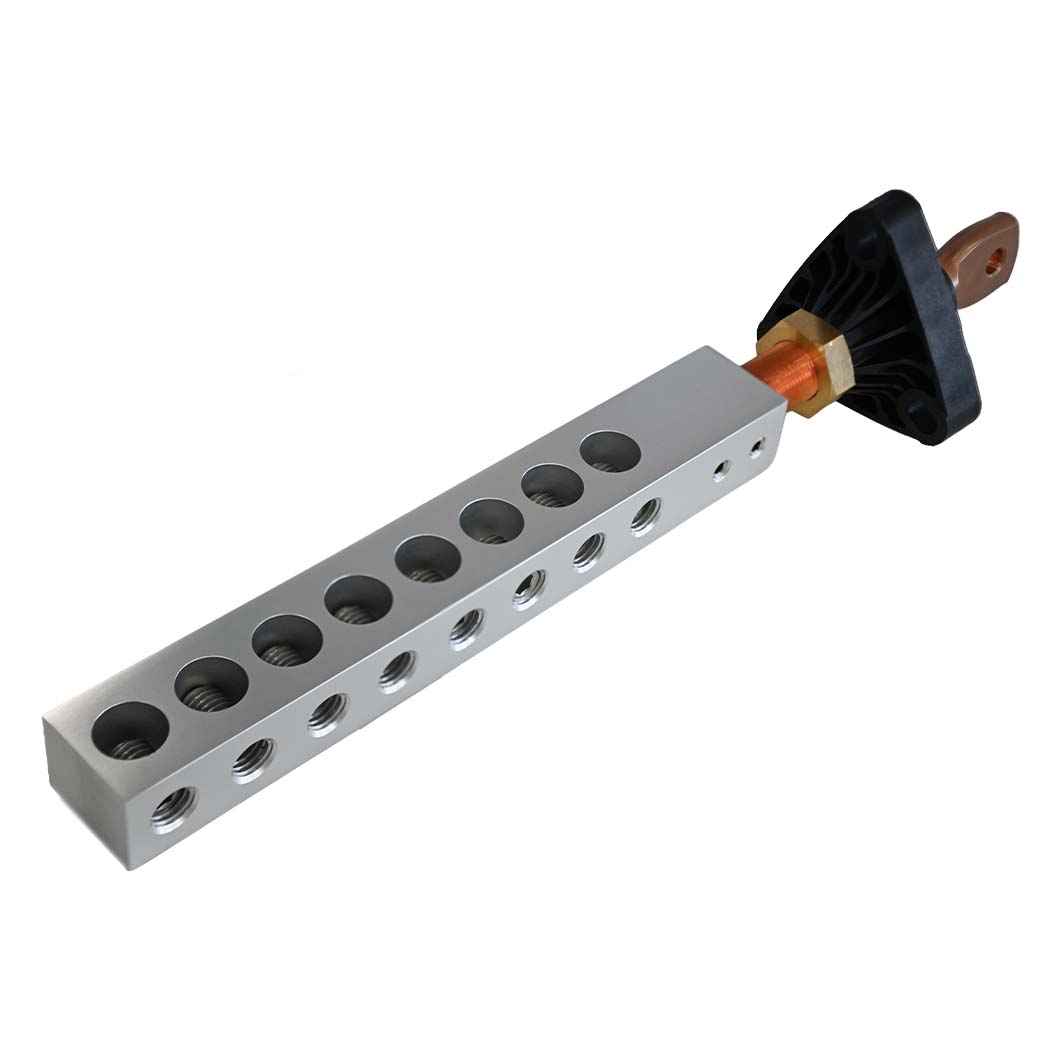

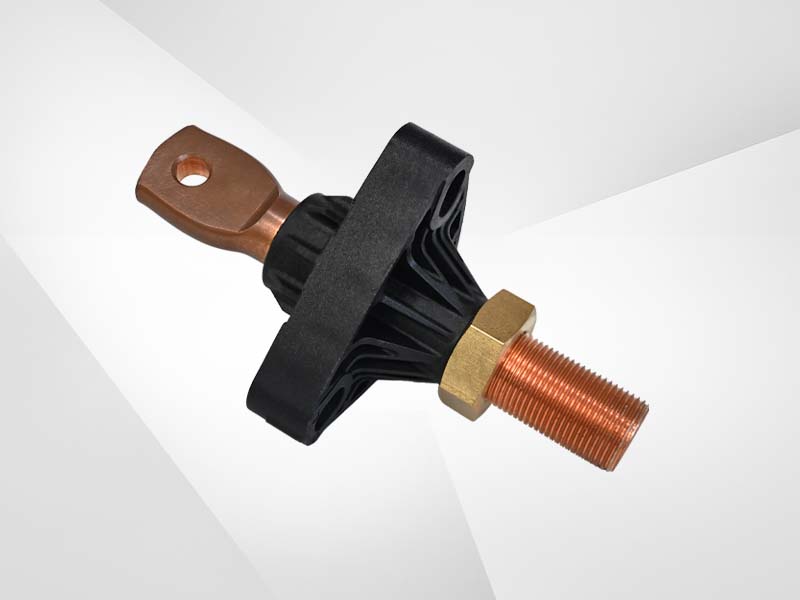

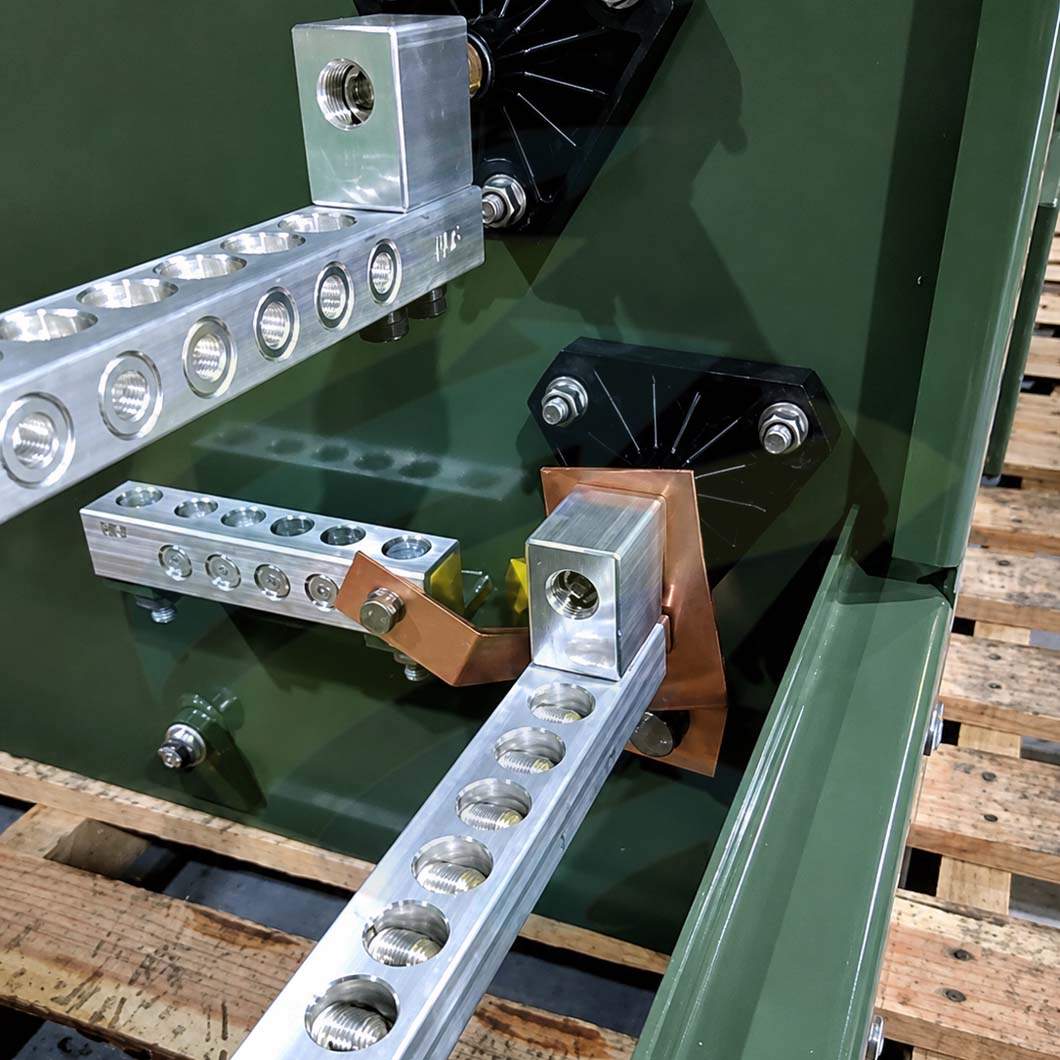

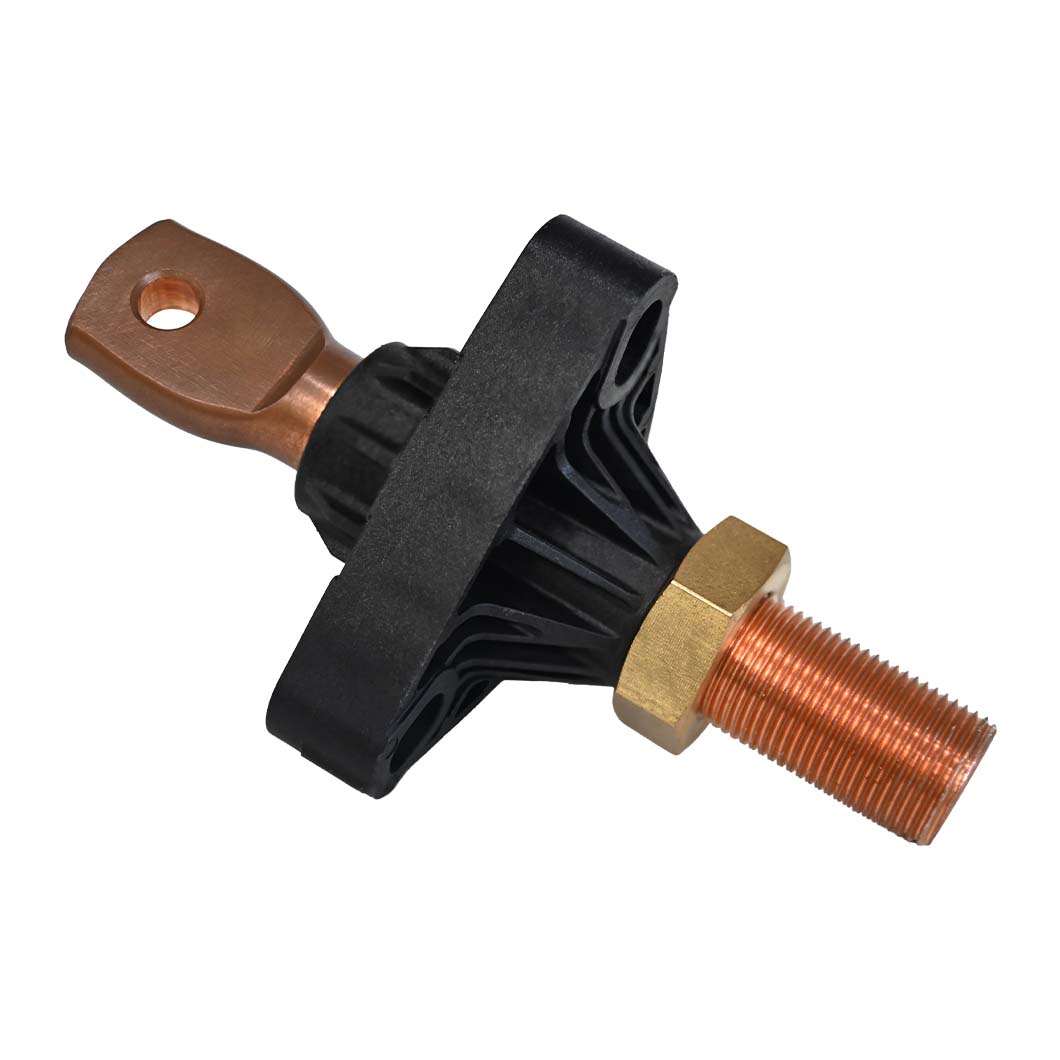

Each bushing features an integral triangular mounting flange, an internal single-hole spade terminal, and an external threaded stud. Three current ratings—417A, 630A, and 1200A—are available to suit different transformer requirements.
Key Features
Integral Mounting Flange
The triangular mounting flange is molded as part of the insulation body, eliminating the need for a separate mounting flange. The three-point mounting arrangement secures the bushing to the transformer tank wall.
Glass-Reinforced Nylon Insulation
The insulation body is molded from high-performance glass-reinforced nylon resin, selected for its mechanical strength, temperature stability, and low moisture absorption. The specified application temperature range is −40°C to +140°C.
C11000 Copper Conductor
The C11000 copper conductor incorporates an internal single-hole spade and an external threaded stud. Different thread sizes are available according to the current rating.
Enhanced Conductor-to-Insulation Bonding
Special copper stud surface treatment strengthens the bond between the conductor and insulation body, helping maintain sealing integrity during thermal cycling and long-term service.
Dimensional Compatibility
The bushings are designed with mounting and connection dimensions compatible with many similar bushings. Compatibility should be checked against the selected model’s drawing, including the mounting bolt pattern, tank opening, conductor dimensions, internal spade, and external thread.
Electrical Ratings
| Parameter | 417A Bushing | 630A Bushing | 1200A Bushing |
|---|---|---|---|
| Rated Current | 417A | 630A | 1200A |
| Rated Voltage | 1.2kV | 1.2kV | 1.2kV |
| Power-Frequency Withstand Voltage, 1 Minute, 50/60Hz | 10kV RMS | 10kV RMS | 10kV RMS |
| Basic Lightning Impulse Insulation Level (BIL) | 30kV | 30kV | 30kV |
| External Stud Thread | 5/8″-11 UNC-2A | 3/4″-16 UNF-2A | 1″-14 UNS-2A |
Materials and Construction
| Item | Specification |
|---|---|
| Certification | IEEE Certified |
| Insulation Material | Glass-Reinforced Nylon Resin |
| Conductor Material | C11000 Copper |
| Mounting Design | Integral Triangular Flange |
| Internal Connection | Single-Hole Spade |
| External Connection | Threaded Stud |
| Insulation Body Color | Black |
| Application Temperature | −40°C to +140°C |
| Application Environment | Indoor Use |
| Supplied Components | Bushing, Brass Nut, and NBR Sealing Gasket |
Customization and Quality Inspection
Internal spade dimensions, external threaded terminal dimensions, and conductor configurations can be customized to suit specific connection and installation requirements. Each bushing is tested and inspected before completion.
Request a Quote
Send us your required current rating, stud thread size, installation drawing, and connection dimensions. We can help you select a suitable low-voltage bushing or review your customization requirements.
