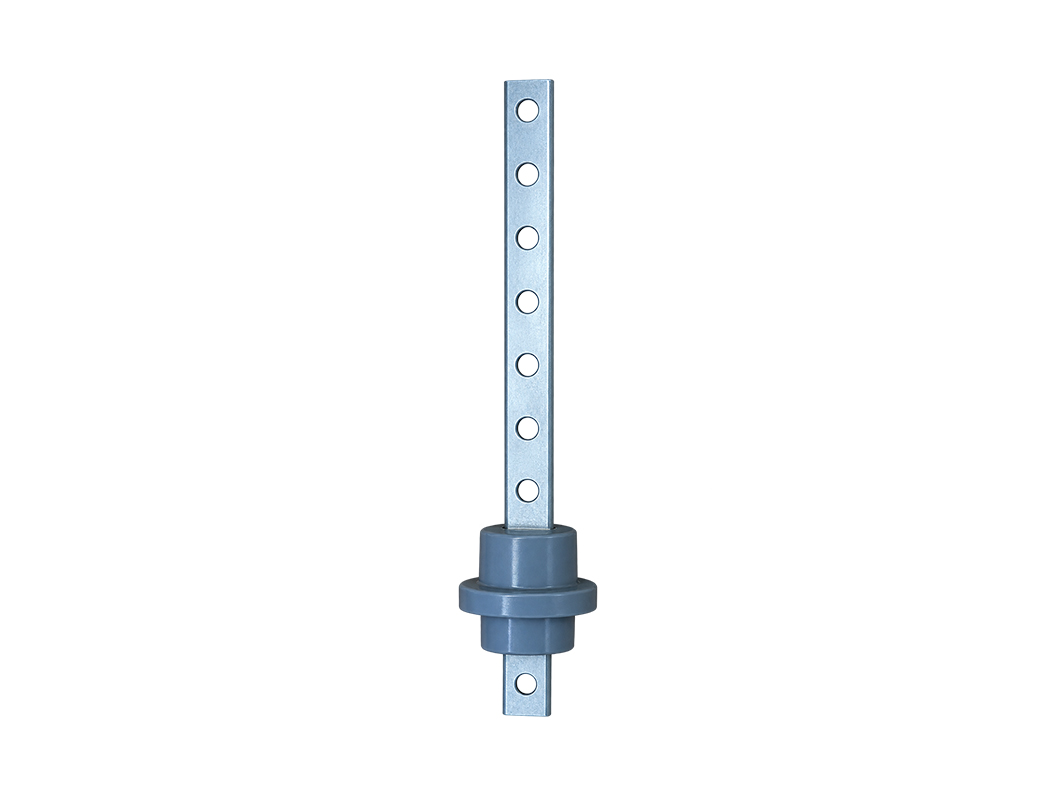

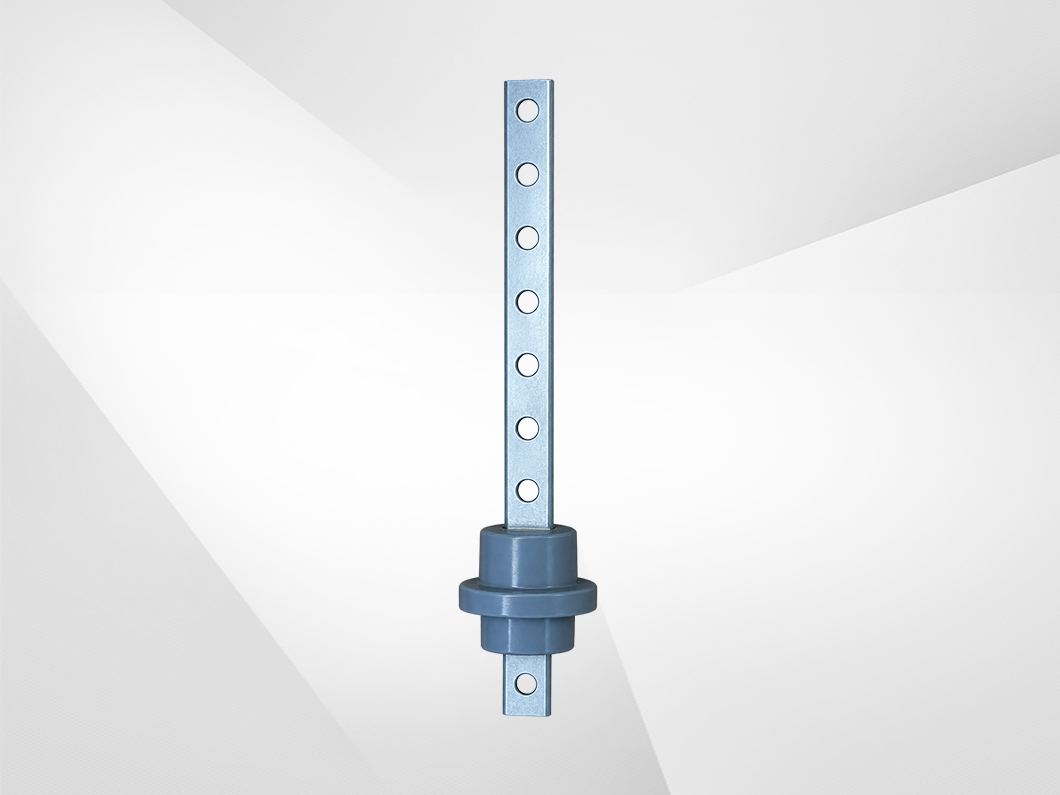

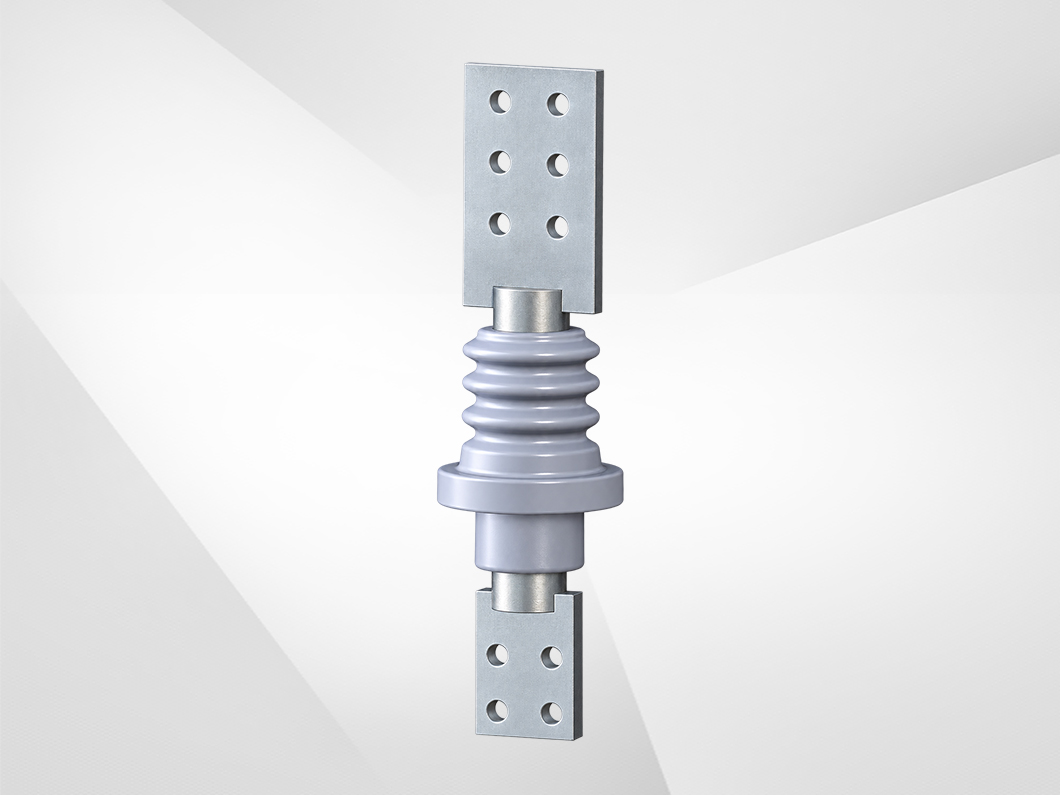

1.2kV BIL 30kV 800A 7-hole Epoxy Bushing
- Details
800A Epoxy Resin LV Bushing for Transformers | 1.2kV, 30kV BIL
Designed for transformer low-voltage connections, this epoxy resin bushing provides an insulated current path through the transformer tank wall. Rated at 800A and 1.2kV, it combines a tin-plated C11000 copper conductor, a high-performance epoxy insulation body, and a 304 stainless steel clamp.
Key Features
Tin-Plated C11000 Copper Conductor
The stud and spade are manufactured from C11000 copper, using a round-edge copper bar with a cross section of 1.25″ × 3/8″. The copper conductor supports efficient current transmission, while the tin-plated finish helps protect connection surfaces against oxidation.
High-Performance Epoxy Insulation
The gray epoxy resin body provides electrical insulation between the conductor and the transformer tank. The bushing has a rated voltage of 1.2kV and a Basic Lightning Impulse Insulation Level (BIL) of 30kV.
304 Stainless Steel Clamp

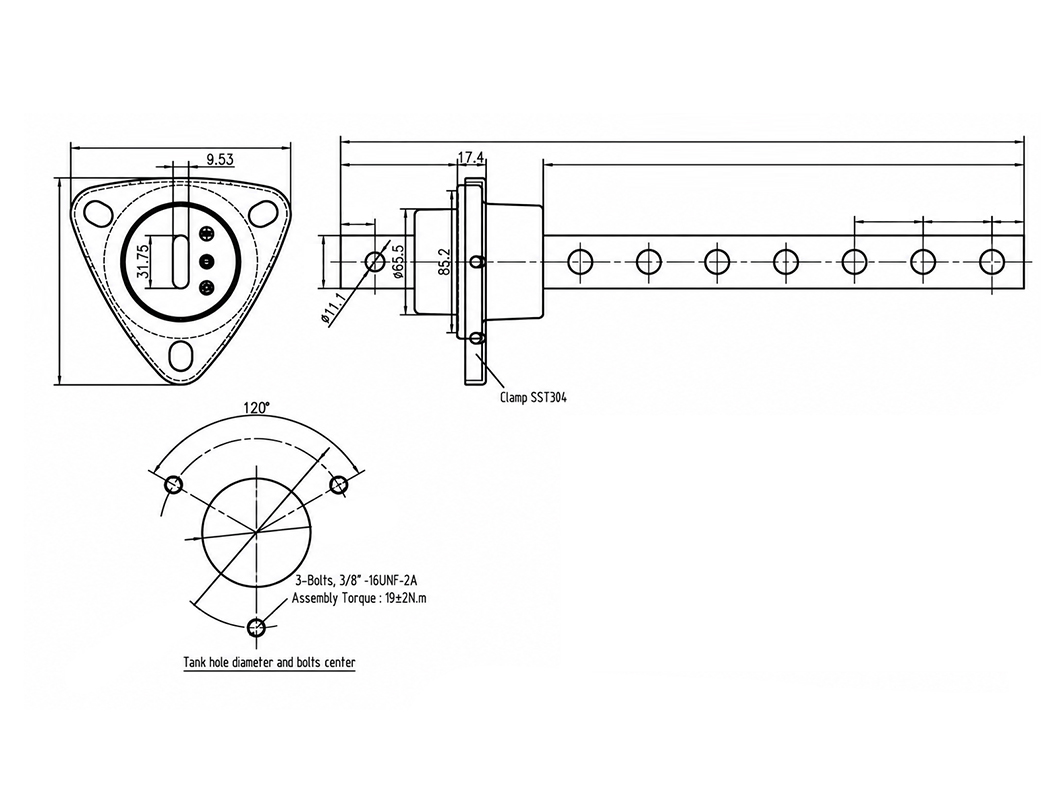

The 304 stainless steel clamp provides mechanical support for mounting and offers corrosion resistance. The bushing is designed for a 65.0mm tank opening; installation dimensions should be checked against the product drawing.
Wide Operating Temperature Range
The specified operating temperature range is −40°C to +130°C. Selection should take into account the transformer’s operating conditions, required current capacity, and terminal connection arrangement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Epoxy Resin Low-Voltage Bushing |
| Rated Voltage | 1.2kV |
| Rated Current | 800A |
| Basic Lightning Impulse Insulation Level (BIL) | 30kV |
| Stud and Spade Material | C11000 Copper, Tin-Plated |
| Conductor Profile | Round-Edge Copper Bar |
| Copper Bar Cross Section | 1.25″ × 3/8″ (31.75 × 9.525mm) |
| Clamp Material | 304 Stainless Steel |
| Insulation Material | High-Performance Epoxy Resin |
| Insulation Body Color | Gray |
| Operating Temperature | −40°C to +130°C |
| Tank Hole Diameter | 65.0mm |
Transformer Connection and Installation
This bushing is intended for transformer applications requiring an 800A low-voltage connection through the tank wall. Before ordering, confirm the tank opening, mounting arrangement, spade hole dimensions, and available connection space against the product drawing.
Request a Quote
Contact us with your required quantity, transformer application, and installation drawing. Include terminal dimensions and connection details to help us confirm the correct configuration for your project.
