500-7500kVA Three-phase Pad-mounted Transformer
- Details

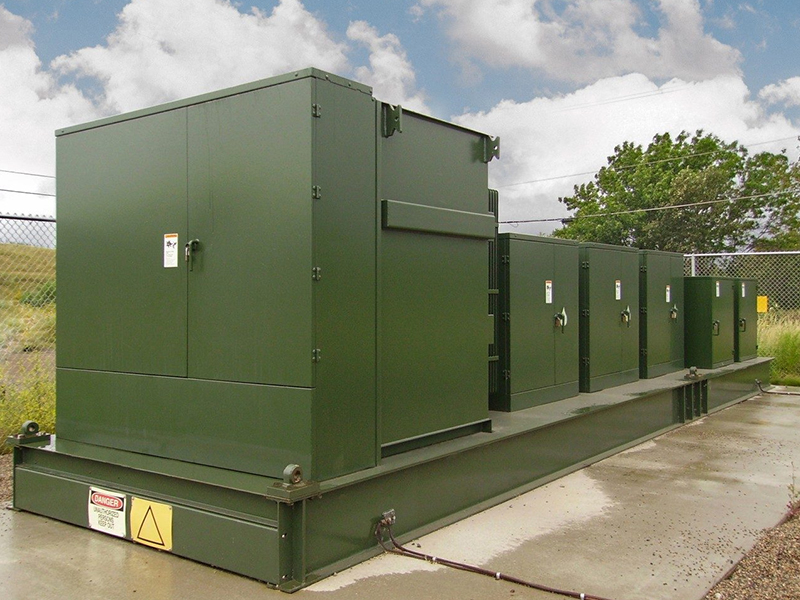

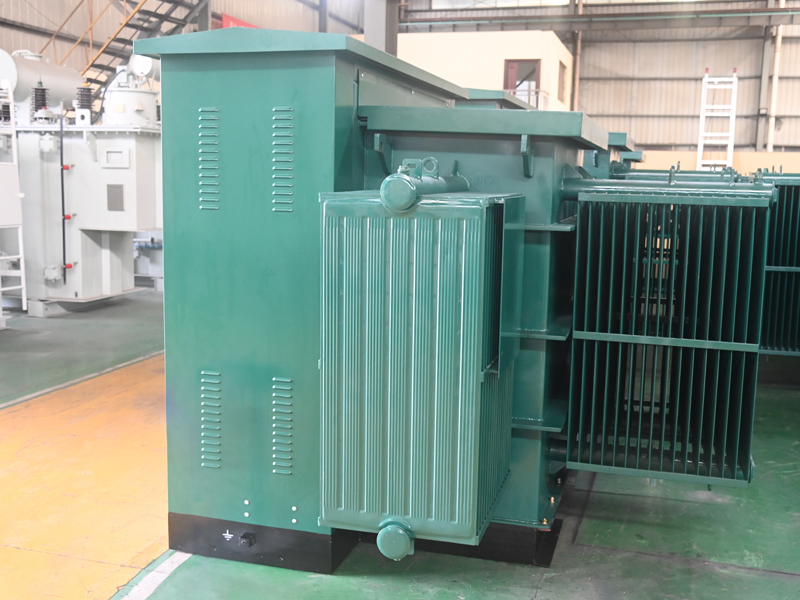

Three-phase pad-mounted transformers is oil-filled,three-phase,commercial pad mounteddistribution transformer specifically designed for outdoor installation on a concrete pad and provideunderground power distribution to commercial,industrial and institutional loads.It is availablein both livefront and dead front construction,for radial feed and loop feed applications,with or without taps,thetransformer uses aluminum or copper winding and is optimized to maximize efficiency and footprint.It hasmany advantages:such as high voltage,no drifting of neutral point,low loss,small volume,cost-effective,safety and environment protection and etc.
Standard Features
·50 Hzor 60 Hz operation.
·65℃ average winding rise.
·Radial&loop feed arrangements.
·Dead and live front type of HVterminals.

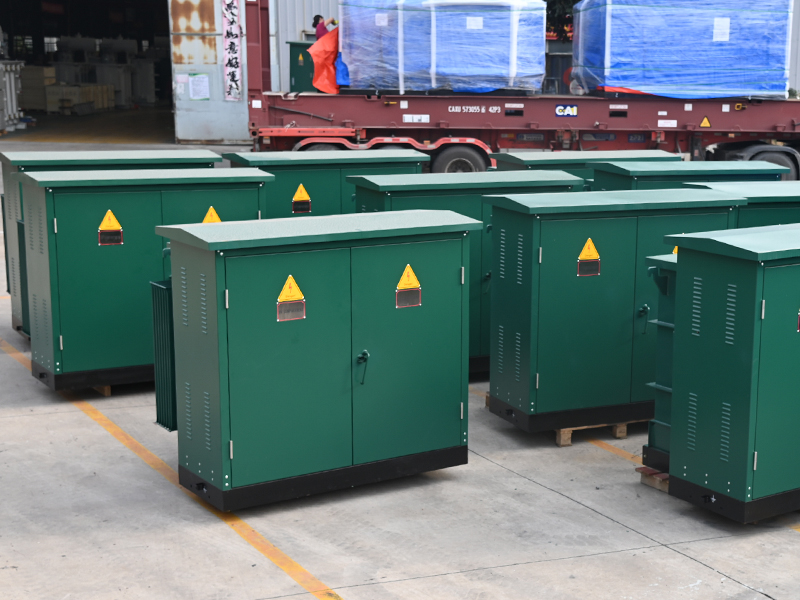

·Bolted-on cabinet with removable sill having the following depths:
-19"deep for 300kVA through 750 kVA
-22"deep for 1000kVA through 1500kVA
-24"deep for 2000 kVA through 3750kVA
-30"deep for 5000 Kva through 7500kVA
·Tank:Mild steel
·Steel HV/LV compartment barrier
·Padlocking facilitywith penta-head bolt on the HVand LV,Three-point latching mechanism.
·HVand LV compartment doors-hinged and lift-off type with 120°holding bars
·Stainless steel door hinges
·Removable sillfor easy installation
·Three-point latching door for security
·Permanent Nameplate per ANSI requirement.
·ANSI tank ground pads.
·One-inch drain valve and sampler.
·Self-actuating pressure relief valve.
·Four(4)lifting lugs
·Welded cover with hand hole
·Oil fll plug
·Removable LV neutral ground strap;as required
·Durable,corrosion-resistance powder coat paint finished Munsell Green 7GY3.29/1.5

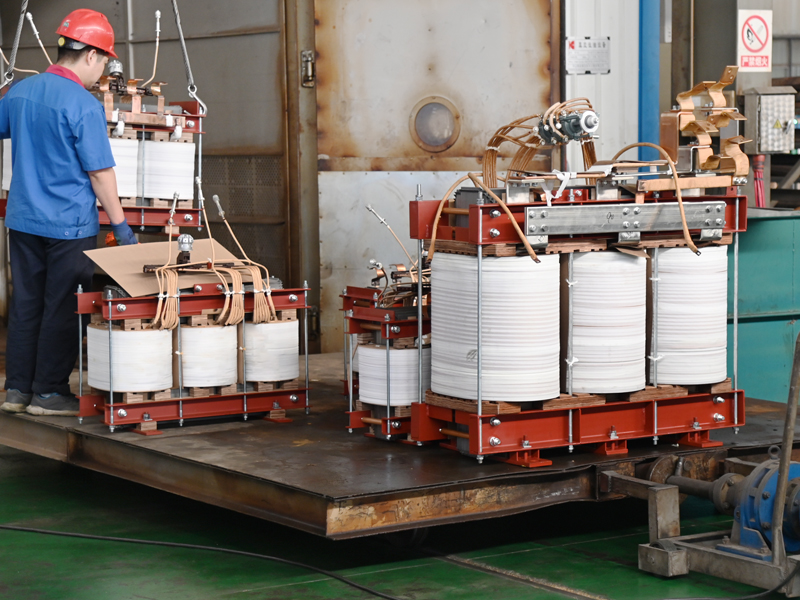

·Designed,manufactured and tested in accordance with the latest ANSI and IEEE standards.
| Hangzhou Giantway Import & Export Co., Ltd. | |||||||||
| DATA SHEET OF PAD-MOUNTED TRANSFORMER （Copy right: HZGW） | |||||||||
| Project Name | |||||||||
| S/N | Description | Unit | |||||||
| 1 | Rated capacity | kVA | 1000 | 1500 | 2000 | 2500 | 3000 | ||
| 2 | HV/Primary | V | 13800V Delta | 13800V Delta | 13800V Delta | 13800V Delta | 13800V Delta | ||
| 3 | LV/Secondary | V | 400V - Wye | 400V - Wye | 400V - Wye | 400V - Wye | 400V - Wye | ||
| 4 | Transformer Feed Type | Loop | Loop | Loop | Loop | Loop | |||
| 5 | Tap changer | NO-Load,5step,±2*2.5%， | NO-Load,5step,±2*2.5%， | NO-Load,5step,±2*2.5%， | NO-Load,5step,±2*2.5%， | NO-Load,5step,±2*2.5%， | |||
| 6 | vector group | Delta-Wye | Delta-Wye | Delta-Wye | Delta-Wye | Delta-Wye | |||
| 7 | Material of coil | Copper | Copper | Copper | Copper | Copper | |||
| 8 | Material of core | Silicon steel | Silicon steel | Silicon steel | Silicon steel | Silicon steel | |||
| 9 | No. of Phases | 3 | 3 | 3 | 3 | 3 | |||
| 10 | Frequency | （Hz） | 60 | 60 | 60 | 60 | 60 | ||
| 11 | Insulation Fluid | Mineral Oil | Mineral Oil | Mineral Oil | Mineral Oil | Mineral Oil | |||
| 12 | Insulation Class | A | A | A | A | A | |||
| 13 | Rated impedance | % | 5.75 | 5.75 | 5.75 | 5.75 | 5.75 | ||
| 14 | No-load loss at 20℃ | W | 996 | 1532 | 1782 | 2438 | 5385 | ||
| 16 | full load loss at 85℃，100%load | W | 7832 | 9880 | 12987 | 14356 | 28450 | ||
| 17 | Total Losses at 85°C | 8828 | 11412 | 14769 | 16794 | 33835 | |||
| 18 | Efficiency at 100% load | % | 99.12 | 99.24 | 99.27 | 99.33 | 98.88 | ||
| Standard(s) | IEEE C57/DOE2016 | ||||||||
| 19 | Temperature rise | ||||||||
| Oil surface temperature rise | K | 60 | 60 | 60 | 60 | 60 | |||
| Average winding temperature rise | K | 65 | 65 | 65 | 65 | 65 | |||
| Hotest point temperature rise | K | / | / | / | / | / | |||
| 20 | Basic lightning impulse insulation level(BIL) | ||||||||
| HV | kV | 95 | 95 | 95 | 95 | 95 | |||
| LV | kV | ||||||||
| 23 | Noise level | dBA | 62 | 62 | 62 | 62 | 62 | ||
| 24 | Ambient temperature | ℃ | Maximum Ambient Temp. 40℃ | Maximum Ambient Temp. 40℃ | Maximum Ambient Temp. 40℃ | Maximum Ambient Temp. 40℃ | Maximum Ambient Temp. 40℃ | ||
| 25 | Method of cooling | ONAN | ONAN | ONAN | ONAN | ONAN | |||
| 26 | Enclosure Rating: | NEMA 3R Weatherproof,Munsell™ 7.0 GY 3.29/1.5 Bell green | NEMA 3R Weatherproof,Munsell™ 7.0 GY 3.29/1.5 Bell green | NEMA 3R Weatherproof,Munsell™ 7.0 GY 3.29/1.5 Bell green | NEMA 3R Weatherproof,Munsell™ 7.0 GY 3.29/1.5 Bell green | NEMA 3R Weatherproof,Munsell™ 7.0 GY 3.29/1.5 Bell green | |||
| 27 | Housing Type | Compartmental Air-Filled Cabinet w/ Locking Doors, HV Compartment Left, LV Compartment Right, Steel Barrier Separation,Weatherproof and UV Resistant Epoxy Coating and Undercoating | Compartmental Air-Filled Cabinet w/ Locking Doors, HV Compartment Left, LV Compartment Right, Steel Barrier Separation,Weatherproof and UV Resistant Epoxy Coating and Undercoating | Compartmental Air-Filled Cabinet w/ Locking Doors, HV Compartment Left, LV Compartment Right, Steel Barrier Separation,Weatherproof and UV Resistant Epoxy Coating and Undercoating | Compartmental Air-Filled Cabinet w/ Locking Doors, HV Compartment Left, LV Compartment Right, Steel Barrier Separation,Weatherproof and UV Resistant Epoxy Coating and Undercoating | Compartmental Air-Filled Cabinet w/ Locking Doors, HV Compartment Left, LV Compartment Right, Steel Barrier Separation,Weatherproof and UV Resistant Epoxy Coating and Undercoating | |||
| 28 | Others requirements | / | / | / | / | / | |||
| 29 | nameplate | YES | YES | YES | YES | YES | |||
| 30 | package | Export wooden crate | Export wooden crate | Export wooden crate | Export wooden crate | Export wooden crate | |||
| 31 | dimension （width*depth*heigh） | mm | |||||||
| 32 | weight | KG | |||||||
| 33 | Altitude： | m | ＜1000 | ＜1000 | ＜1000 | ＜1000 | ＜1000 | ||
| 34 | manual | YES | YES | YES | YES | YES | |||
| language | English | English | English | English | English | ||||
| Accessories Manual | English | English | English | English | English | ||||
| 35 | Accessories | ||||||||
| Fill&Drain & Sample Valve | YES | ||||||||
| Load Break Switch | YES | ||||||||
| Thermometer | YES | ||||||||
| Liquid Level Gauge | YES | ||||||||
| Pressure Vacuum Gauge | YES | ||||||||
| Pressure Relief Valve | YES | ||||||||
| Rating & Diagram Plate | YES | ||||||||
| Internal Weak Link Fuses with CLFs | YES | ||||||||
