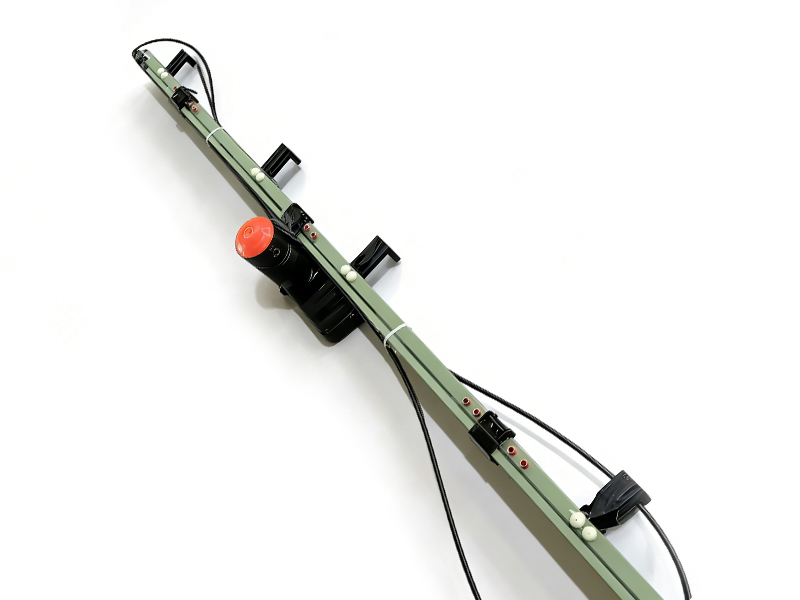

35kV 63A Off-Circuit Remote-Controlled Tap Changer
If you are interested in our products or need technical supports and service,please contact us as bellowing:
- Details
This switch is suitable for oil-immersed power transformers with a frequency of 50 or 60 Hz, a rated current of 63 A or less, and a rated voltage of 35 kV or less. The flange of the tap changer can be mounted directly onto the transformer tank cover or tank wall to facilitate voltage regulation. When operating the tap changer, the transformer must be disconnected from the power grid, thereby placing the transformer in a de-energized state.
Voltage Regulation Model
I : terminal point
II : central point
III : neutral point
IV : Y-△ conversion
V : series-parallel connection
Voltage Regulation Model
I : terminal point
II : central point
III : neutral point
IV : Y-△ conversion
V : series-parallel connection
Our Advantage
* High pressure capability
* Strong anti-aging ability
* Strong anti-lightning impact
* Strong protection
* Use smoothly
* Strong anti-aging ability
* Strong anti-lightning impact
* Strong protection
* Use smoothly
* Stable use
| Number of positions | Rated voltage | Rated current | L | B | C | n | φd1 | φd2 |
| 3 | 10kV | 30A | 180.5 | 61.5 | 55 | 3 | φ3.1 | φ5 |
| 63A | φ5.1 | φ7 | ||||||
| 24kV | 30A | 180.5 | 61.5 | 55 | 3 | φ3.1 | φ5 | |
| 63A | φ5.1 | φ7 | ||||||
| 36kV | 30A | 206 | 61.5 | 80 | 3 | φ3.1 | φ5 | |
| 63A | φ5.1 | φ7 | ||||||
| 5 | 10kV | 30A | 249.5 | 94.5 | 55 | 5 | φ3.1 | φ5 |
| 63A | φ5.1 | φ7 | ||||||
| 24kV | 30A | 249.5 | 94.5 | 55 | 5 | φ3.1 | φ5 | |
| 63A | φ5.1 | φ7 | ||||||
| 36kV | 30A | 275 | 94.5 | 80 | 5 | φ3.1 | φ5 | |
| 63A | φ5.1 | φ7 | ||||||
| 7 | 10kV | 30A | 319.5 | 128.5 | 55 | 7 | φ3.1 | φ5 |
| 63A | φ5.1 | φ7 | ||||||
| 24kV | 30A | 319.5 | 128.5 | 55 | 7 | φ3.1 | φ5 | |
| 63A | φ5.1 | φ7 | ||||||
| 36kV | 30A | 345 | 128.5 | 80 | 7 | φ3.1 | φ5 | |
| 63A | φ5.1 | φ7 |
