0.1kV 10kV Insulation Resistance Tester
If you are interested in our products or need technical supports and service,please contact us as bellowing:
- Details

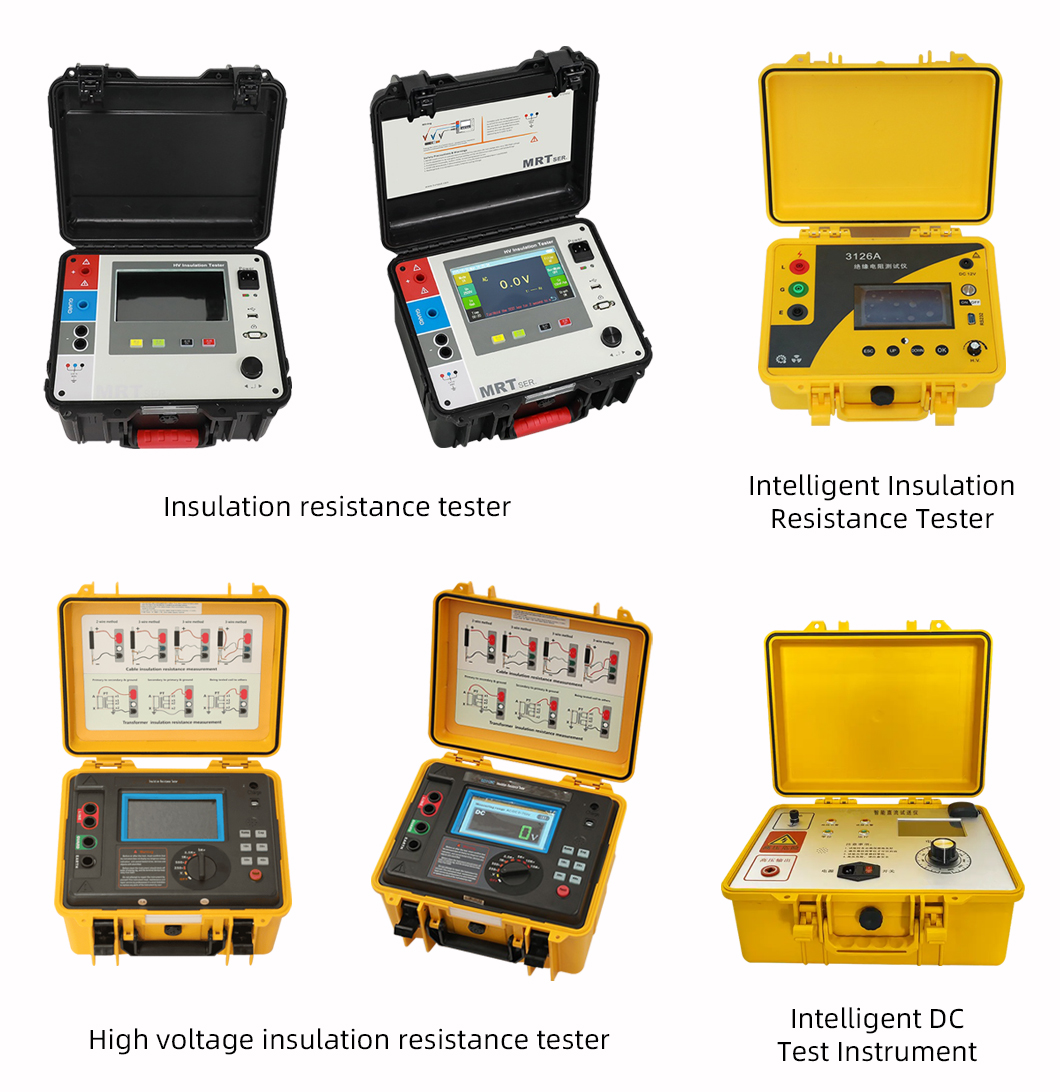

The insulation resistance tester is a professional instrument developed and produced in accordance with IEC 61010-1 and other relevant standards for measuring the insulation resistance of power transformers, cables, motors, lines and materials. Using high-voltage DC injection technology, the internal precision high-voltage generator outputs a stable DC voltage to the device under test, more accurately measures the leakage current and automatically calculates the insulation resistance value. It is suitable for scenarios in many fields such as power systems, industrial facilities, construction engineering, rail transit, and aerospace. It is a core tool for insulation status diagnosis and preventive maintenance of power equipment.
Features:
1. Covers IR/DAR/PI/DD/SV full-function test modes and realizes dual-mode calculation of DAR absorption ratio;
2. The three-in-one operation matrix of key control, touch screen, and knob and mouse greatly simplifies the operation link and makes testing more flexible and faster;
3. Multiple voltage ranges can be switched at will, and customized voltage modes are supported;
4. Real-time recording and visual presentation of insulation resistance-voltage-current time curve, supporting transient analysis of insulation status;
5. Equipped with AC and DC voltage measurement functions, which can automatically identify voltage types and measure AC frequency;
6. Equipped with cable length measurement function and equipped with controllable hardware and software filters, the anti-interference performance is significantly improved.
7. The three major safety barriers of independent discharge circuit, test sample breakdown protection, and arc detection not only protect the safety of the equipment, but also accurately locate insulation weak points to prevent problems before they occur;
8. Adopt a fully isolated structure for high and low voltage circuits to ensure the safety of operators;
9. With USB storage function, data can be exported to U disk in batches for easy backup and migration;
Features:
1. Covers IR/DAR/PI/DD/SV full-function test modes and realizes dual-mode calculation of DAR absorption ratio;
2. The three-in-one operation matrix of key control, touch screen, and knob and mouse greatly simplifies the operation link and makes testing more flexible and faster;
3. Multiple voltage ranges can be switched at will, and customized voltage modes are supported;
4. Real-time recording and visual presentation of insulation resistance-voltage-current time curve, supporting transient analysis of insulation status;
5. Equipped with AC and DC voltage measurement functions, which can automatically identify voltage types and measure AC frequency;
6. Equipped with cable length measurement function and equipped with controllable hardware and software filters, the anti-interference performance is significantly improved.
7. The three major safety barriers of independent discharge circuit, test sample breakdown protection, and arc detection not only protect the safety of the equipment, but also accurately locate insulation weak points to prevent problems before they occur;
8. Adopt a fully isolated structure for high and low voltage circuits to ensure the safety of operators;
9. With USB storage function, data can be exported to U disk in batches for easy backup and migration;
10. Supports RS232 (optional RS485) and Bluetooth communication to meet data interaction in different scenarios.
| Function Option | Parameter Specification | |
| Performance Parameters | Fixed Test Voltages | 100V, 250V, 500V, 1000V, 2500V, 5000V, 10000V |
| Corresponding Full-Scale Resistance Values | 200GΩ, 500GΩ, 1.00TΩ, 2.00TΩ, 5.00TΩ, 10.0TΩ, 20.0TΩ | |
| Custom Test Voltage | 50V ～ 10000V, minimum step 10V; with single-knob flywheel control, step value automatically switches between 10V, 100V, 200V based on rotation speed - higher speed results in larger steps. | |
| Voltage Output Accuracy | 0% ～ +10% | |
| Resistance Range & Resolution | 0 ～ 9.99kΩ 0.01kΩ; | |
| 10.0 ～ 99.9kΩ 0.1kΩ; | ||
| 100 ～ 999kΩ 1kΩ; | ||
| 1.00 ～ 9.99MΩ 10kΩ; | ||
| 10.0 ～ 99.9MΩ 100kΩ; | ||
| 100 ～ 999MΩ 1MΩ; | ||
| 1.00 ～ 9.99GΩ 10MΩ; | ||
| 10.0 ～ 99.9GΩ 100MΩ; | ||
| 100 ～ 999GΩ 1GΩ; | ||
| 1.0 ～ 9.99TΩ 10GΩ; | ||
| 10.0 ～ 20.0TΩ 100GΩ; | ||
| Short-Circuit Current | 1mA ～ 6mA, adjustable in 1mA steps | |
| Accuracy: ±5%, Continuous Output Power: 55W | ||
| Test Time | 10 seconds ～ 99 minutes adjustable | |
| Voltage Measurement | AC/DC 10V ～ 660V, ±(2% + 3 digits) | |
| AC Voltage Frequency | 25Hz ～ 85Hz, Resolution 0.1Hz, Accuracy ±0.2Hz | |
| Capacitance Measurement | 10nF ～ 25μF, Test Voltage ≥100V, Accuracy: ±10% ±5nF | |
| Capacitive Test Sample Discharge Rate | From 10kV to 50V, ≤0.47s/μF | |
| Others | Operating Temperature | -10℃ ～ 50℃ |
| Relative Humidity | <90%, non-condensing | |
| Dimensions | 320mm × 280mm × 200mm | |
| Weight | Approximately 4.2kg | |
