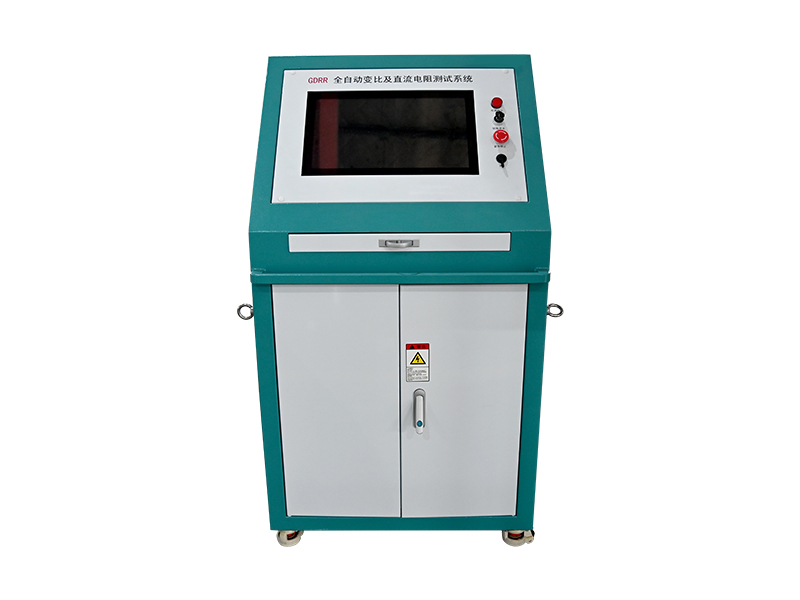

Transformer Energy Efficiency Grade Test System
If you are interested in our products or need technical supports and service,please contact us as bellowing:
- Details

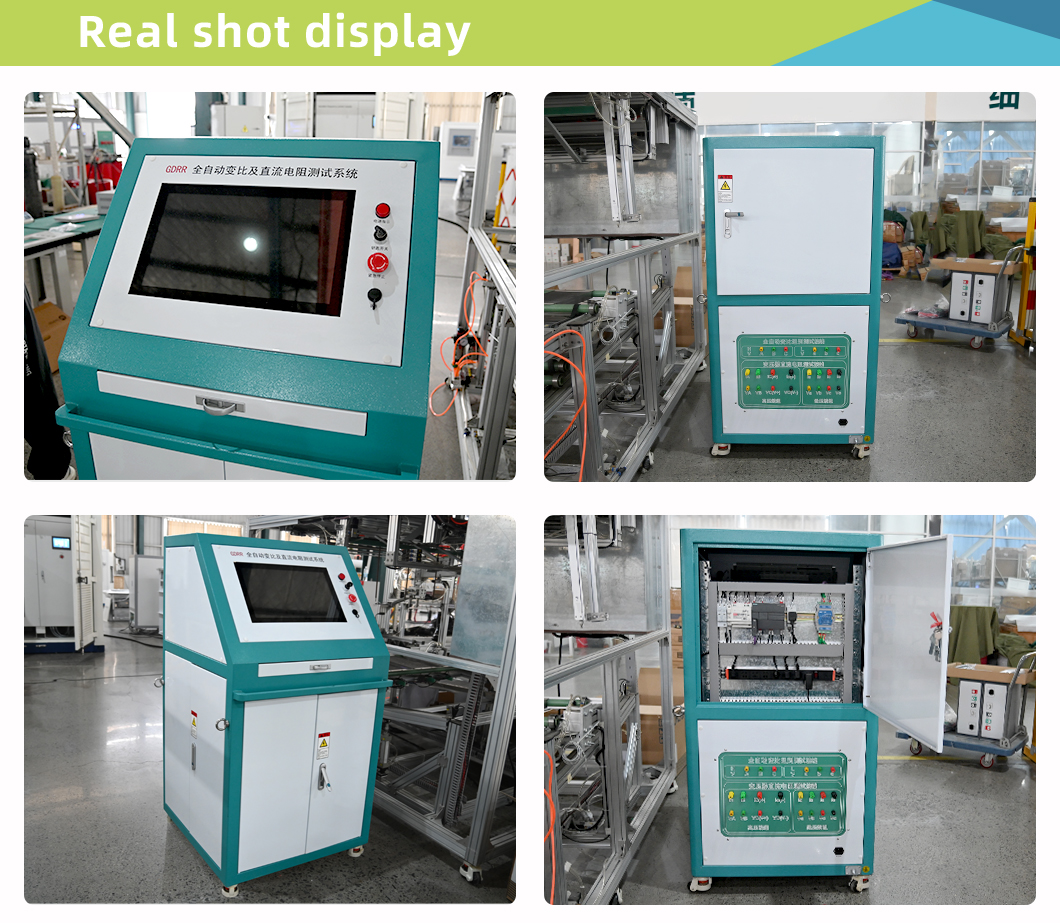

Product introduction:
The test system's control operations are based on a PLC programmable logic controller and a touch-operated integrated computer software interface. Through optimized software design, all test items can be completed automatically. The introduction of a data management system enables automatic storage of test results and generation of test reports for each test item, eliminating the need for test personnel to perform tedious operations such as recording and inputting data, thereby improving test efficiency. The system features intelligent test process control, intelligent line switching, intelligent data processing, intelligent data upload, and intelligent determination of energy efficiency levels.
The test system's control operations are based on a PLC programmable logic controller and a touch-operated integrated computer software interface. Through optimized software design, all test items can be completed automatically. The introduction of a data management system enables automatic storage of test results and generation of test reports for each test item, eliminating the need for test personnel to perform tedious operations such as recording and inputting data, thereby improving test efficiency. The system features intelligent test process control, intelligent line switching, intelligent data processing, intelligent data upload, and intelligent determination of energy efficiency levels.
Meets performance testing and energy efficiency certification for distribution transformers of 400kVA/10kV, 800kVA/10kV, 1600kVA/10kV, 2500kVA/10kV, and below (systems are customized based on different capacities).
| Test Items | Voltage Ratio Test | DC Resistance Test | Loss Test |
| Voltage ratio and connection group number measurement | Ratio measurement range: 0.8-20,000; | Output current: <5mA, 40mA, 200mA, 1A, 5A, 10A; | Voltage: 0-800V (expandable to 1200V); |
| Winding resistance measurement | Measurement accuracy: 0.1% (0.8-1000), 0.2% (1000-20,000); | Resolution: 0.1μΩ; | Current : 100A (expandable to 200A); |
| No-load loss and no-load current measurement | Range : 100Ω-20kΩ (<5mA range); | Frequency: 45Hz-65Hz; | |
| Short-circuit impedance and load loss measurement | 1Ω-250Ω (40mA range); | Measurement Accuracy: | |
| Energy efficiency rating certification | 100mΩ-50Ω (200mA range); | Voltage: ±(0.1% of reading + 0.1% of range) | |
| 5mΩ-10Ω (1A range); | Current: ±(0.1% of reading + 0.1% of range) | ||
| 1mΩ-2Ω (5A range); | Power: ±(0.2% of reading + 0.2% of range) | ||
| 0.5mΩ-0.8Ω (10A range); | Power Factor: ±(0.2% of reading + 0.2% of range) | ||
| Accuracy: 2‰; | Frequency: ±(0.25% of reading + 0.25% of range) |
