Turn-to-Turn Surge Tester/Inter-turn Impact Withstand Voltage Tester
If you are interested in our products or need technical supports and service,please contact us as bellowing:
- Details

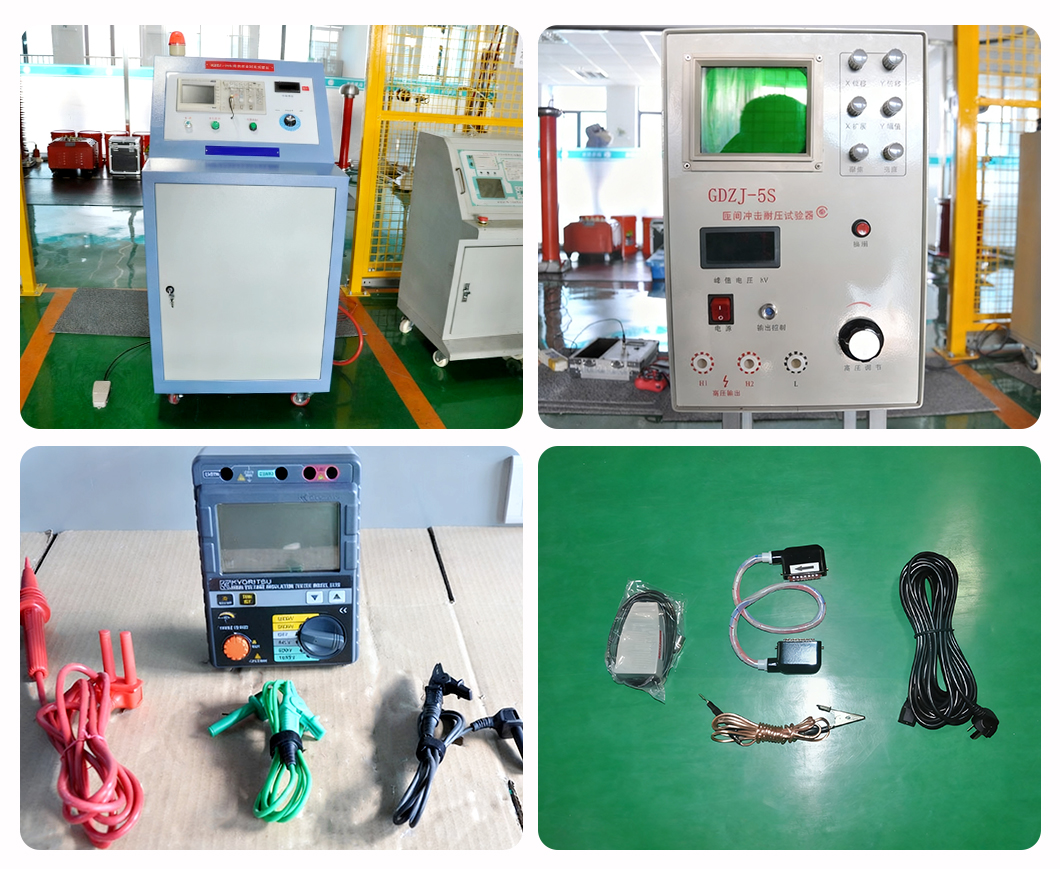

Turn-to-turn surge withstand tester uses pulse waveform comparison method,which generate high voltage pulse to
coil windings of motor or other equipment to conduct equivalent over-voltage simulation test. It can correctly and

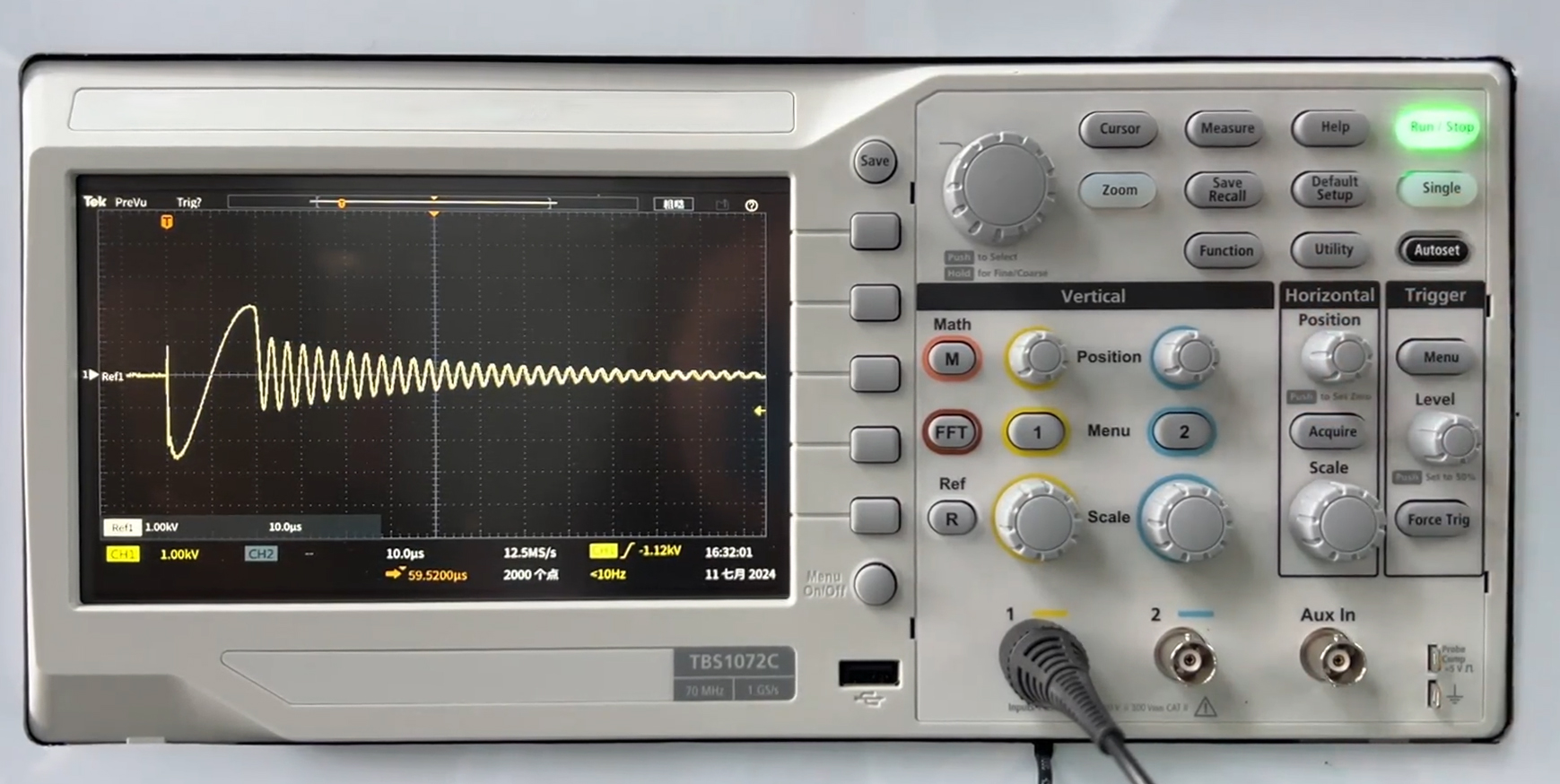

rapidly determine the quality of turn-to-turnin sulation by observing,comparing and analyzing the displayed waveform.
It can be used for inter-turn and inter-layer insulation strength testing of single-phase motors, three-phase small and
medium-sized motors, micro motors, special motors, power tool motors, transformers (including switching power supply
transformers), relays, and electrical appliances containing electromagnetic wire windings.
| Interturn Impulse Withstand Voltage Selection Table | |||||||
| Product Model | 5S | 10S | 15S | 30S | 35S | 40S | 45S |
| Product Purpose | Primarily used for interturn impulse withstand voltage testing of stator coils in motors of various voltage levels. | ||||||
| Target Equipment | Motors rated 220/380V and below (with a capacity less than 100 kW). | Motors rated 1140V and below (with a capacity greater than 100 kW and less than 1000 kW). | Motors rated 3.8 kV and below (with a capacity greater than 100 kW and less than 1000 kW). | Motors rated 10 kV and below. | Motors rated 10 kV and below (with a higher safety factor). | Motors rated 13.8 kV and below. | Motors rated 15 kV and below. |
| Interturn Impulse Withstand Voltage Standards | 1. GB/T 22714-2008 - Test Specification for Interturn Insulation of AC Low-Voltage Motor Formed Windings. 2. JB/T 10098-2000 - Impact Voltage Withstand Level of AC Motor Stator Formed Coils. 3. JB/T 9615.2-2000 - Test Limit for Interturn Insulation of Random-Wound Windings for AC Low-Voltage Motors. Test Voltage Up = K1 × K2 × Ug (Primarily for motors rated 1140V and below). 4. IEC 60034-15 (Second Edition) - Specifies a test voltage Up = 0.65 × (4Un + 5 kV) (Primarily for motors rated 3-15 kV). | ||||||
| Common Motor Voltage Levels | 220V、380V、660V、1140V、3800V、6600V、10000V、13800V、15000V。 | ||||||
