CRGO Electrical Silicon Steel Lamination Core
- Details

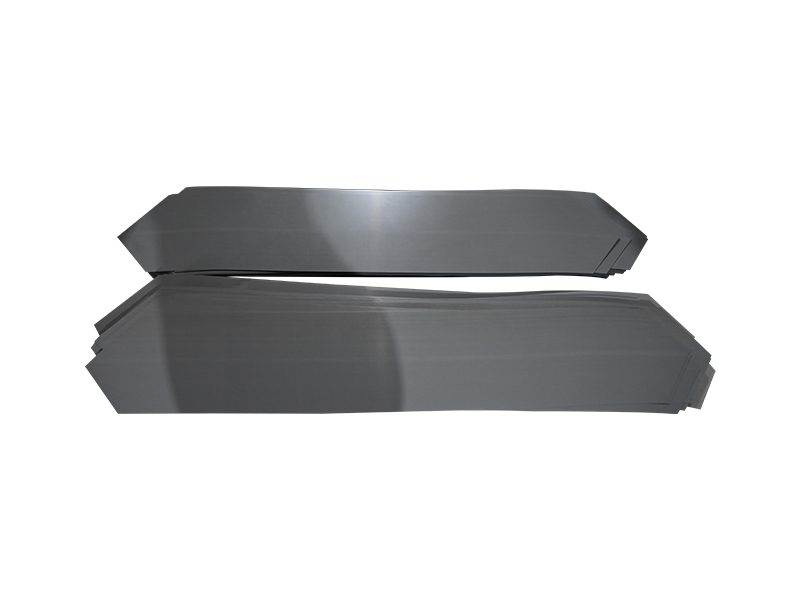

The Step-lap CRGO Transformer Laminations design leads to low no-load losses and a low noise level, lateral step-lap enables a favourable assembly for the upper yoke. Every type of CRGO Transformer Cores can be produced in a form of Step lap, over lap, 45° cut, with hole or without hole from every required quality electrical steel up to 800 mm width.Evergreen uses the newest, computerized version of Cut to Length Machines in order to produce Step-Lap CRGO Transformer Laminations Cores.
Transformer core lamination for power & distribution transformer is manufactured from various grades of cold rolled grain oriented steel.Lamination invarious shapes & size are slit and cut to required accurate geometrical shapes with 90° & 45° angle cutting system. As manufacturing of transformer lamination involves a high degree of precision engineering, we always strive hard for crucial quality checks of burr level, stack height, dimension and required weight. We have firmly positioned ourselves as one of the prevailing CRGO Transformer Lamination Core Manufacturers and Suppliers,based in jaipur.We manufacture Transformer Core Laminations for Power and Distrubution Transformer.We are able to deliver CRGO Transformer Lamination Cores as leg or sheet packet, according to your packing requirements, inside of wooden box or on the pallets.
| Type | Grade | Thickness (mm) | Density (kg/dm³) | Max Core loss(Wkg) | Min. Inducion (T) | Min. Lamination in factor | |
| P17/50 | P17/60 | ||||||
| Conventional type | C23Q110 | 0.23 | 7.65 | 1.10 | 1.45 | 1.82 | 0.945 |
| C23Q120 | 1.20 | 1.57 | 1.82 | ||||
| C27Q120 | 0.27 | 1.20 | 1.58 | 1.82 | 0.950 | ||
| C27Q130 | 1.30 | 1.68 | 1.82 | ||||
| C30Q120 | 0.30 | 1.20 | 1.58 | 1.82 | 0.955 | ||
| C30Q130 | 1.30 | 1.71 | 1.82 | ||||
| High inducion type | C23QG085 | 0.23 | 7.65 | 0.85 | 1.12 | 1.88 | 0.945 |
| C23QG090 | 0.90 | 1.19 | 1.88 | ||||
| C23QG095 | 0.95 | 1.25 | 1.88 | ||||
| C23QG100 | 1.00 | 1.32 | 1.88 | ||||
| C27QG090 | 0.27 | 0.90 | 1.19 | 1.88 | 0.950 | ||
| C27QG095 | 0.95 | 1.25 | 1.88 | ||||
| C27QG100 | 1.00 | 1.32 | 1.88 | ||||
| C27QG110 | 1.10 | 145 | 1.88 | ||||
| C30QG105 | 0.30 | 1.05 | 1.38 | 1.88 | 0.955 | ||
| C30QG110 | 1.10 | 1.46 | 1.88 | ||||
| C30QG120 | 1.20 | 1.58 | 1.88 | ||||
| Domain refined high induction type | C23QH080 | 0.23 | 7.65 | 0.80 | 1.06 | 1.88 | 0.945 |
| C23QH085 | 0.85 | 1.12 | 1.88 | ||||
| C23QH090 | 0.90 | 119 | 1.88 | ||||
| C23QH100 | 1.00 | 1.32 | 1.88 | ||||
| C27QH085 | 0.27 | 0.85 | 1.12 | 1.88 | 0.950 | ||
| C27QH090 | 0.90 | 1.19 | 1.88 | ||||
| C27QH095 | 0.95 | 1.25 | 1.88 | ||||
| C27QH100 | 1.00 | 1.32 | 1.88 | ||||
| C30QH095 | 0.30 | 0.95 | 1.25 | 1.88 | 0.955 | ||
| C30QH100 | 1.00 | 1.32 | 1.88 | ||||
| C30QH110 | 1.10 | 1.46 | 1.88 | ||||
