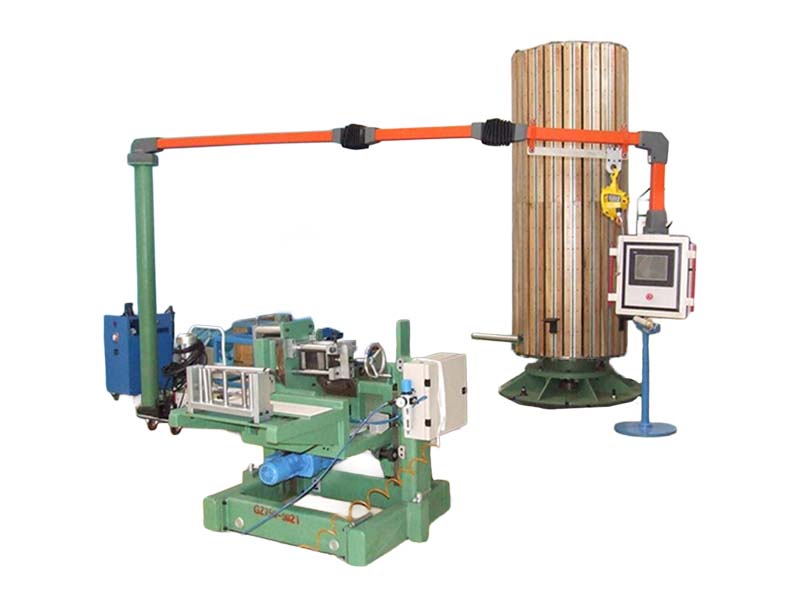

High Precision 30T Vertical Winding Machine for Power Transformer Coil_Transformer Making＆Test Equipment_Products_Hangzhou Giantway Import & Export Co., Ltd.

If you are interested in our products or need technical supports and service,please contact us as bellowing:

Details

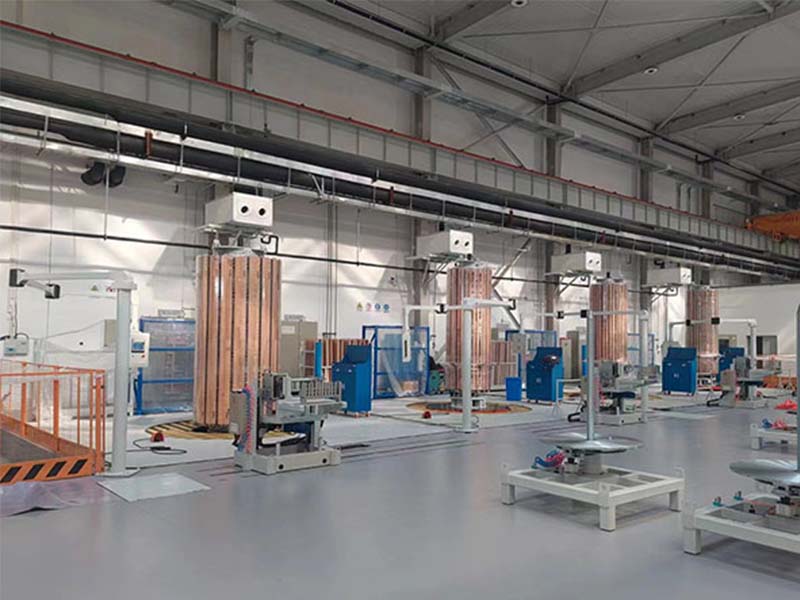

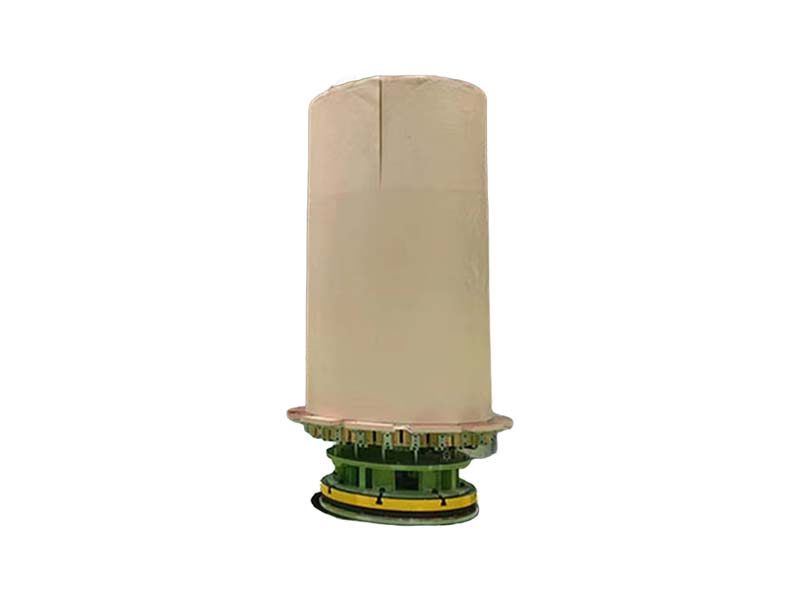

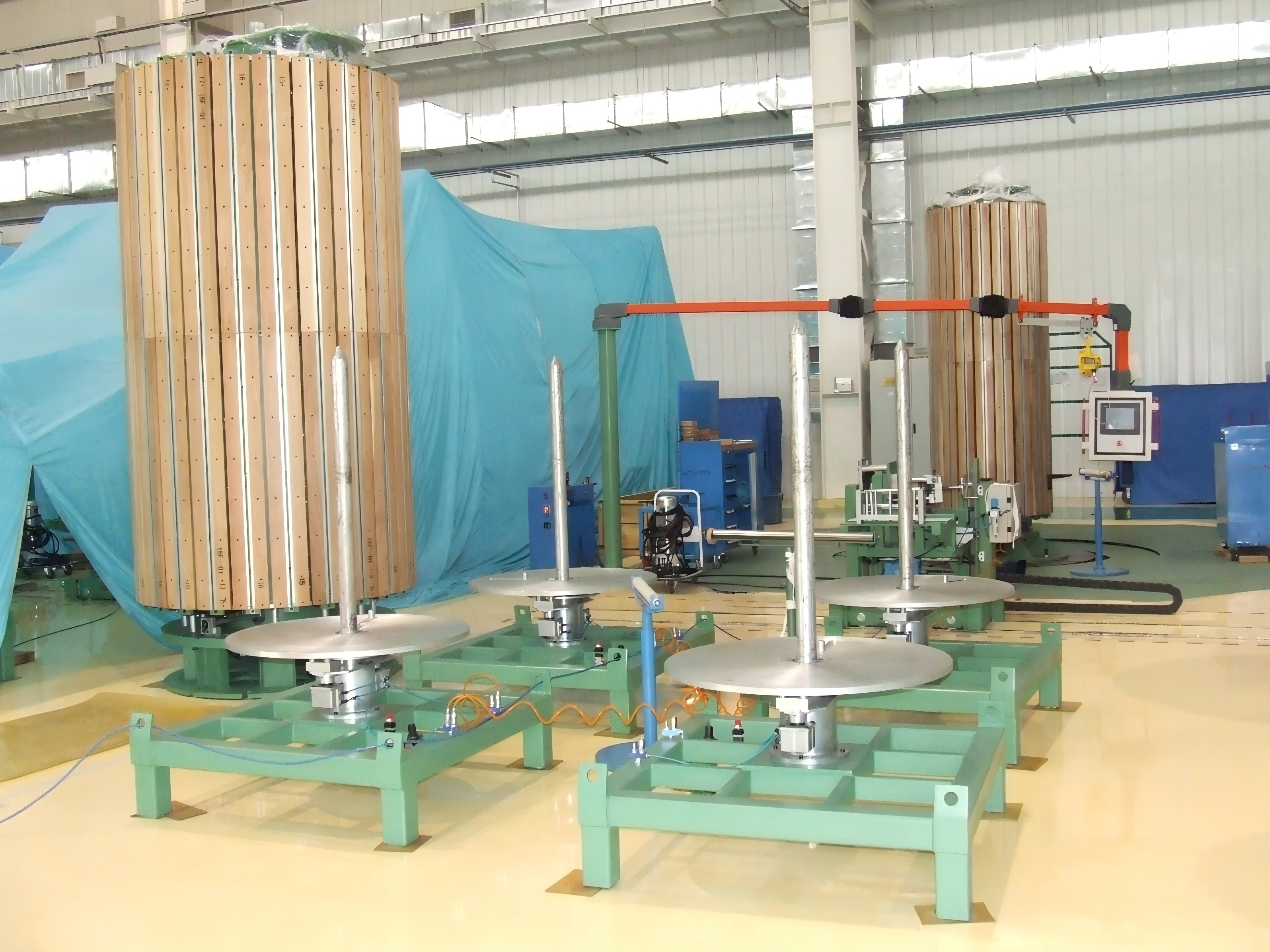

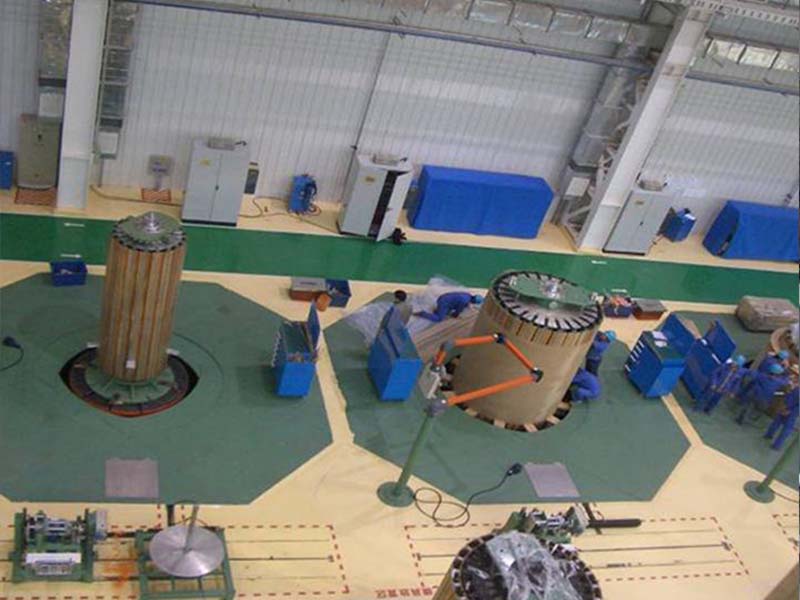

1.This machine is chuck elevation type (pit type), and the height of the winding coil can be arbitrarily adjusted according to the needs of the coil, the position of the operating platform is not changed, and
the operation is simple and convenient.

2.This machine is VF control speed, the speed start is smooth and the braking is reliable. The number of windings can be freely set, with a positive and reverse count and the power-off memory function. The pit cover can be freely expanded or shrunken according to the diameter of the coil, it is safe and reliable.

Model	JN-2002/3002/5002/	JN-2002/3002/5002-B	JN-1000/1300/1500	JN-300/400/500/800-Z
Shear length	1mm-99999mm	1mm-99999mm	10mm-5000mm	200-5000mm
Shear width	-	-	20mm-1300mm	-
Shear thickness	-	-	0.8-4.0mm	-
Shearing accuracy	+ 0.02mm	+ 0.02mm	+ 0.3mm	+0.2mm
Basic composition	20t parameters
Maximum load of the flower pan	20t
Flower disk diameter	(2000mm)
T-slot	Eight grooves, 28 mm wide
Maximum space diameter of rotation	3000mm
Movement cover plate extension speed	1m/min
Height of guy wire device	1000mm
Maximum clamping force of the wire	200-4000N; 30000N;
Compressed air source	0.5-0.7MPa
Maximum torque of the flower head	20000N/m
Noise at the operating position	Less than 75db
Flower disk rotation system (stepless speed control)	0-10 RPM
Flower pan lifting stroke	More than 3000mm, the flower disk rises to the top, the flower disk is more than 350mm above the ground, both sides are limited;
Rate of ascent	0.5m/min
service platform	The opening range is 1000-3050mm; the
