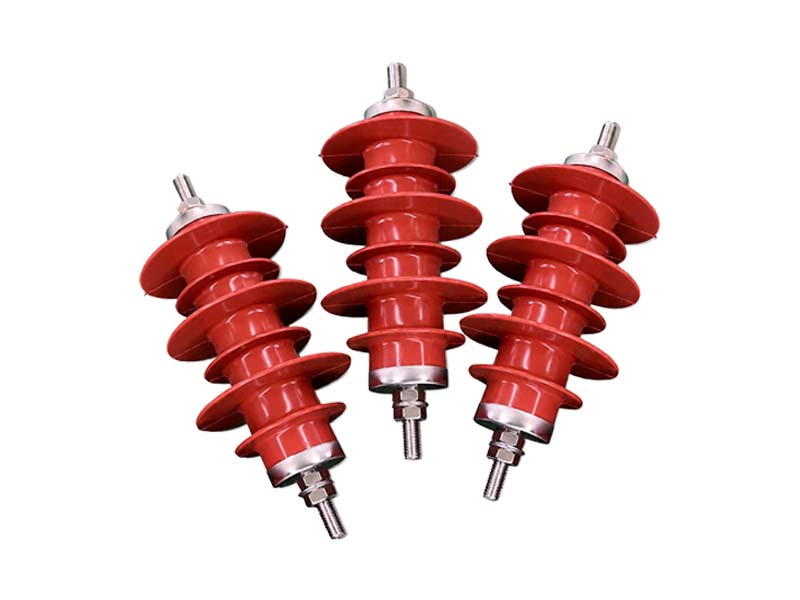

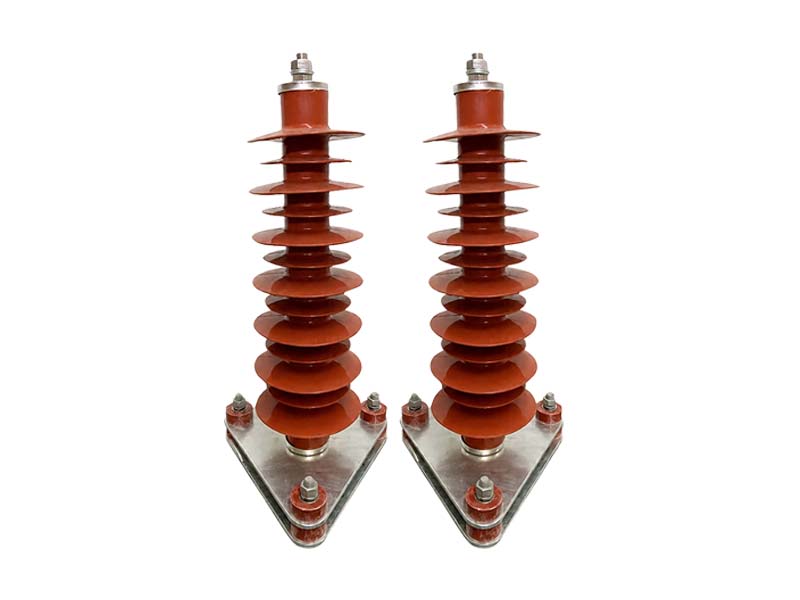

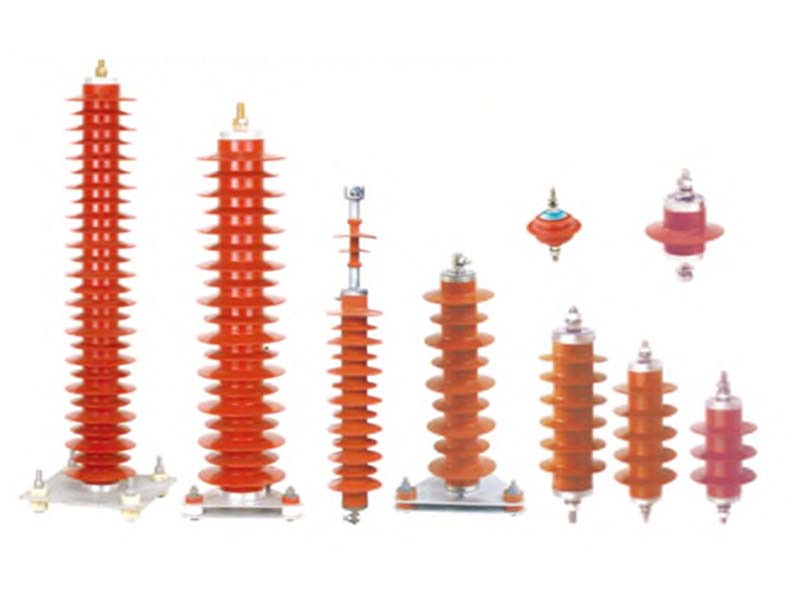

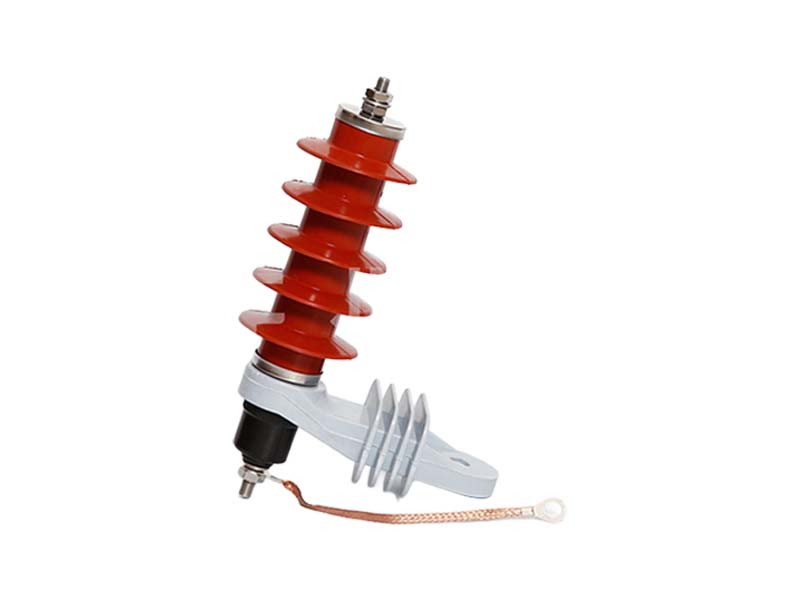

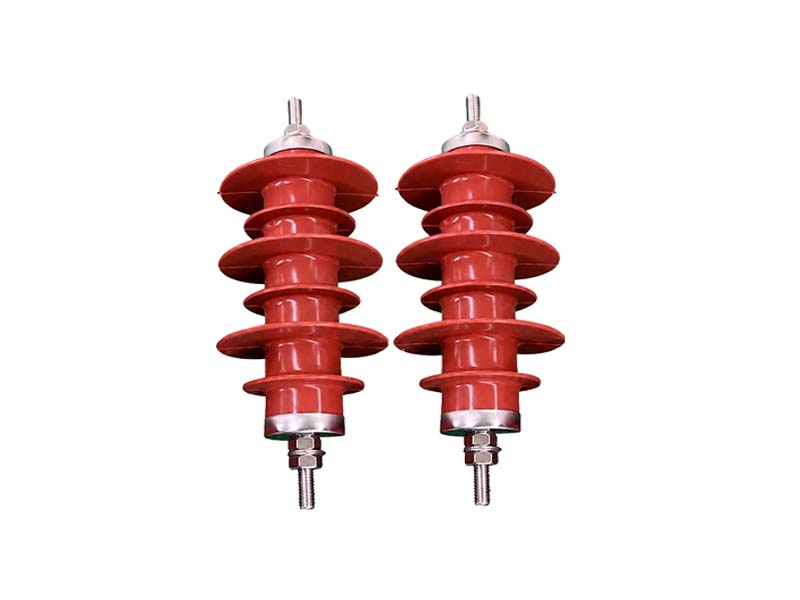

Zinc Oxide Surge Arrester for Power Transformer Protection
If you are interested in our products or need technical supports and service,please contact us as bellowing:
- Details

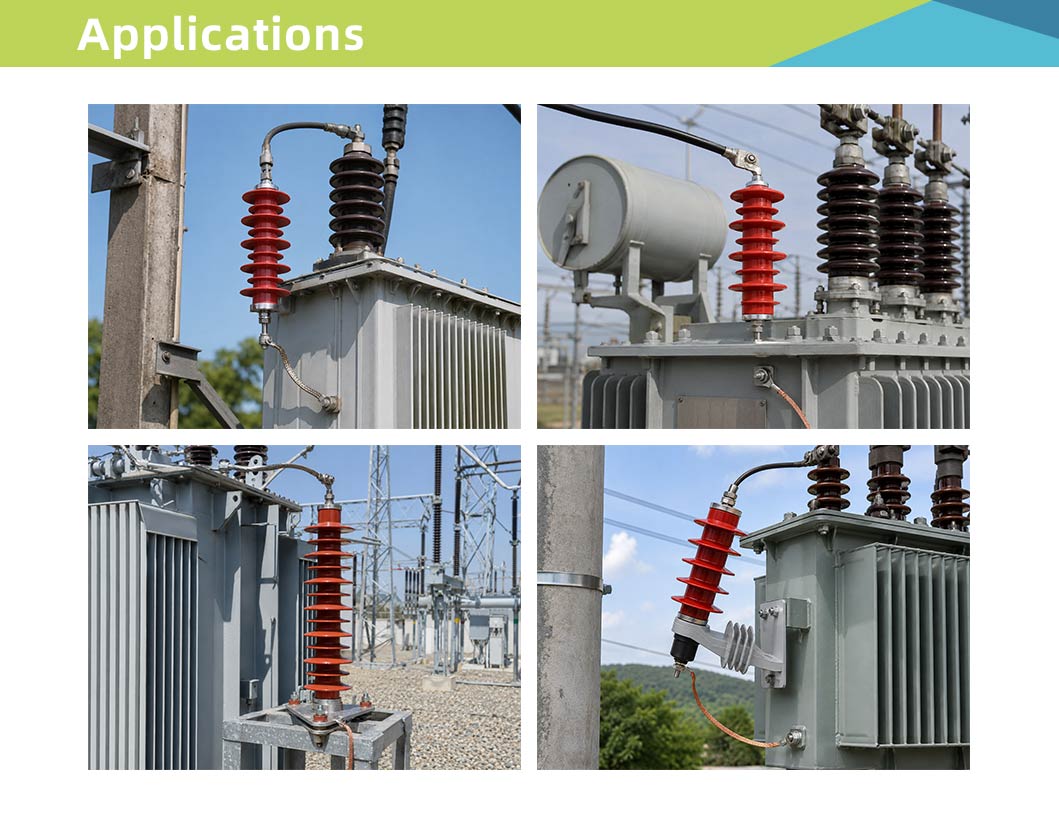

This zinc oxide surge arrester is used to protect transformers and electrical equipment from lightning surge and switching overvoltage. It features fast response, low leakage current, stable protection performance and reliable insulation strength. The product is suitable for power transformers, distribution transformers, compact substations, switchgear and power distribution systems.
| Voltage class | Service scope | Virtual value of arrester rated voltage (kV) | Gapless arrester | ||
| Virtual value of continuous voltage (kV) | 1mA reference voltage(kv) is no less than | MAX.leakage (uA)under 0.75 times Of D.C.reference voltage | |||
| 35kV | power model | 51 | 40.8 | 73 | 50 |
| 42 | 23.4 | 73 | 50 | ||
| 42 | - | - | - | ||
| capacitor model | 51 | 40.8 | 73 | 50 | |
| 42 | 23.4 | 73 | 50 | ||
| 42 | - | - | - | ||
| Line-type | 51 | 40.8 | 73 | 50 | |
| 54 | 43.2 | 77 | 50 | ||
| 42 | - | - | - | ||
| 42 | - | - | - | ||
| neutral point model | 30 | 24 | 44 | 50 | |
