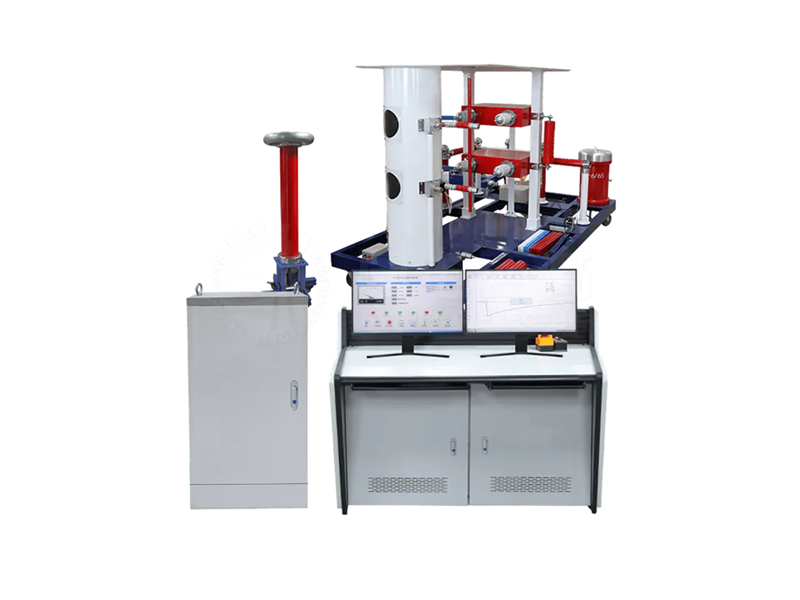

200kV/10kj Lightning Impulse Voltage Generator for Below 20kV Transformer Test
If you are interested in our products or need technical supports and service,please contact us as bellowing:
- Details
Impulse Voltage Test System can produce a wide range of voltage and energy to simulate waveform such as lightning impulse, lightning chopped wave,switching impulse,to carry out impulse test for high voltage power equipment.When using steep device,it can make steep wave test for insulators(insulator string).
1. Spring pressure type for the connector, easy to plug when adjusting wave.
2. Unified connector is used for connecting rod of the main body, easy connection.
3. Optical fiber isolated ethernet port communication between the computer control system and the main body.
4. Full wave and chopped wave are electronic circuit,to adjust delaying ignition triggering.
5. Trigger mode of three-gaps ball discharge,to ensure the reliability of the trigger.
1. Spring pressure type for the connector, easy to plug when adjusting wave.
2. Unified connector is used for connecting rod of the main body, easy connection.
3. Optical fiber isolated ethernet port communication between the computer control system and the main body.
4. Full wave and chopped wave are electronic circuit,to adjust delaying ignition triggering.
5. Trigger mode of three-gaps ball discharge,to ensure the reliability of the trigger.
6. Plate structure for adjustable wave resistor, non-inductive winding.
| DC Charging Set | |
| Component / Parameter | Specification |
| Charging Transformer | Fully insulated structure |
| Primary Voltage | 220 V |
| Secondary Voltage | 65 kV |
| Capacity | 6 kVA |
| Silicon Rectifier | Reverse Voltage 200 kV / 100 mA |
| Charging Method | Constant current charging |
| Charging Protection Resistor | Approximately 13 kΩ (or approximately 15 kΩ, two values provided) |
| Other Equipment | Equipped with two grounding electromagnets |
| GDCY-200kV/10kJ Impulse Voltage Generator Test Bench | |
| Component / Parameter | Specification |
| Main Generator | 2 stages total |
| Impulse Capacitors | Each stage consists of two 2×50kV/1.0μF capacitors in series |
| Charging Voltage per Stage | 100 kV |
| Rated Voltage | 200 kV |
| Rated Energy | 10 kJ |
| Charging Method | Asymmetrical voltage doubling circuit |
| Front Charging Resistor | 15 kΩ |
| Rear Charging Resistor | 30 kΩ |
| Waveform Resistors | 70 Ω / 150 Ω / 300 Ω / 400 Ω |
| Triggering Sphere Gaps | 2 pairs total |
| Triggering Method | The first-stage sphere gap uses a single-side pulse trigger |
| Adjustment Method | All sphere gaps are adjusted simultaneously by one synchronous motor |
| Resistive Voltage Divider | |
| High-Voltage Arm Resistor | 200 MΩ |
| Low-Voltage Arm Resistor | 20 kΩ |
| Division Ratio | 10000 : 1 |
| Weakly Damped Capacitive Divider | Model: G20221051245-1 |
| High-Voltage Arm Capacitance | 300 pF |
| Low-Voltage Arm Capacitance | 0.2 μF |
| Division Ratio | 798:01:00 |
| Rated Impulse Voltage | 200 kV |
