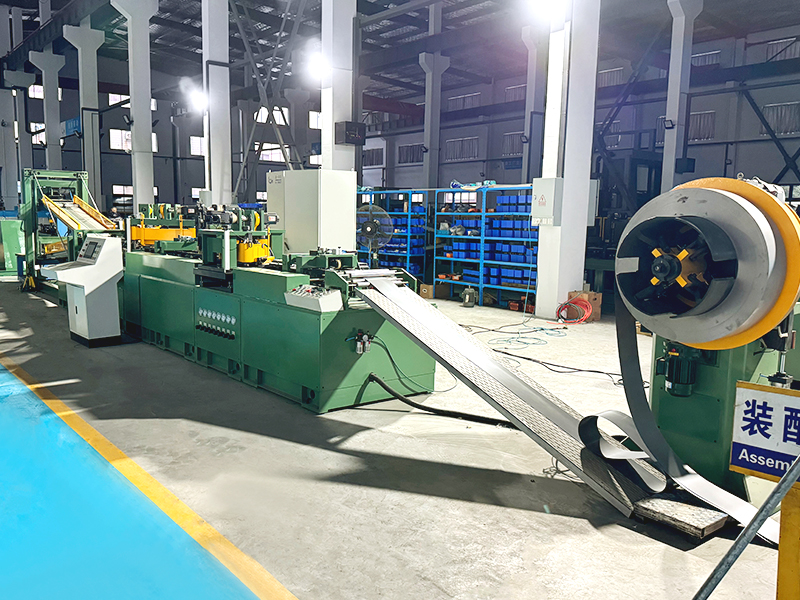

Two Shearing One Punching Silicon Steel Cutting Line
If you are interested in our products or need technical supports and service,please contact us as bellowing:
- Details
1. Produce all kinds of transformer lamination with Step-Lap
2. The numbers and movements of V-notch and hole punch are available for selection.
3. Fixed shears or swing shear are available for selection.
4. Cutting function software can be added or modified as required.
5. Precision stacking,pin stacking,roof stacking,2 sides stacking to choose from.
6. 2,4,or 6 Heads decoiler available to choose.
7. Easy to insall without groundwork and foundation pit
2. The numbers and movements of V-notch and hole punch are available for selection.
3. Fixed shears or swing shear are available for selection.
4. Cutting function software can be added or modified as required.
5. Precision stacking,pin stacking,roof stacking,2 sides stacking to choose from.
6. 2,4,or 6 Heads decoiler available to choose.
7. Easy to insall without groundwork and foundation pit
8. Fully electric operations,low noise level and energy conservation.
| Model | Cutting thickness | Cutting width (mm) | Cutting length (mm) | Feeding speed (m/min) | Cutting burr (mm) | Cutting anfle accuracy | Cutting length accuracy (mm) | Total motor power (KW) |
| XE-LL-300Z | 0.23-0.35 | 40-300 | 350-9999 | 180 | ≤0.02 | ±0.025 | ±0.1 | 20 |
| XE-LL-400Z | 0.23-0.35 | 40-400 | 350-9999 | 180 | ≤0.02 | ±0.025 | ±0.1 | 21.5 |
| XE-LL-400ZX | 0.23-0.35 | 40-400 | 350-9999 | 180 | ≤0.02 | ±0.025 | ±0.1 | 24 |
| XE-LL-600ZX | 0.23-0.35 | 60-600 | 600-9999 | 180 | ≤0.02 | ±0.025 | ±0.1 | 26 |
| XE-X-300 | 0.23-0.35 | 40-300 | 350-9999 | 180 | ≤0.02 | ±0.025 | ±0.1 | 12 |
| XE-X-400 | 0.23-0.35 | 40-400 | 350-9999 | 180 | ≤0.02 | ±0.025 | ±0.1 | 13.5 |
| XE-X-600 | 0.23-0.35 | 60-600 | 600-9999 | 180 | ≤0.02 | ±0.025 | ±0.1 | 13.5 |
| XE-X-200M | 0.23-0.35 | 30-200 | 330-2000 | - | - | - | - | 6.5 |
| XE-X-300M | 0.23-0.35 | 30-300 | 440-2000 | - | - | - | - | 6.5 |
