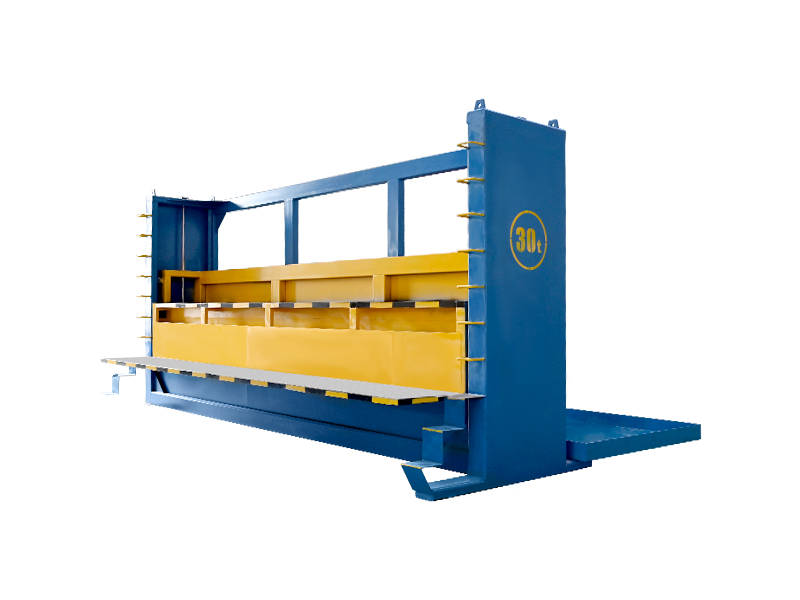

2.No special pit and foundation are required, which does not occupy the working space and is economical.

3.The flipping ability is strong. No additional energy is required except for the workshop crane. This saves energy, reduces the investment in auxiliary equipment and foundation, and has a good performance-price ratio.

4.It is convenient to implement the process without yoke placement. Since the modular structure is not restricted by a fixed

large platform, auxiliary tooling such as iron placement positioning device and iron core placement table can be installed as needed, which brings great convenience to the realization of the process and comprehensive capabilities and high efficiency of iron placement.

5.It is convenient to use the ribbon tensioning device to tie the core when lying down, eliminating the need for auxiliary clamps when standing up.

6.Safe and stable flipping, good synchronization, no deformation of the core, high reliability

7.The center distance is adjustable, and the table size is designed according to customer requirements

8.The overall deformation of the table during flipping is less than 3mm, and the verticality of the stacking table and the flip beam is less than 2mm before and after flipping.

9.Finite element analysis using internationally advanced design software ensures sufficient strength and rigidity. Hot-rolled steel or low-carbon steel welded structure is used. To ensure flatness, key positions are machined. Aging treatment is also required for welded structures. Flip legs are installed on the longitudinal beam. Opening the legs after the core flips 90° can prevent the core from flipping unstably.
