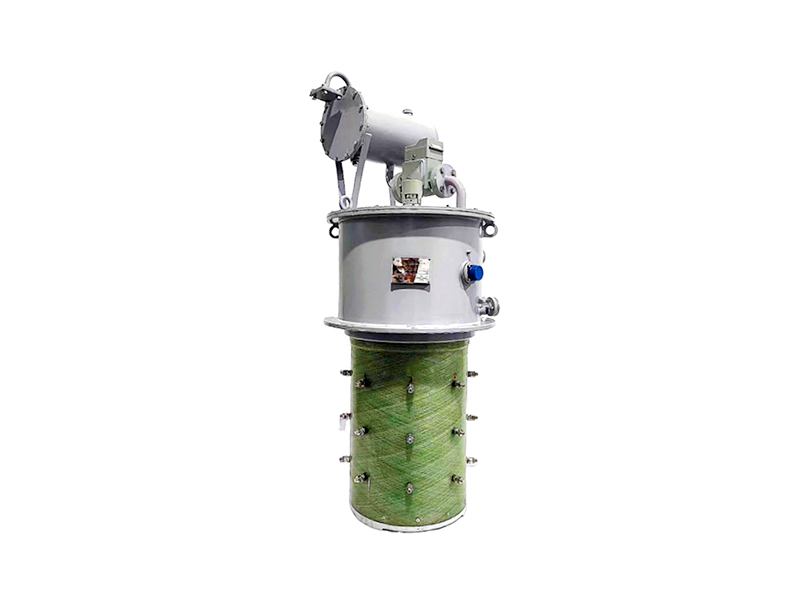

10kv 35kv 1500A Oil-Immersed Composite Vacuum on-Load Tap Changer
If you are interested in our products or need technical supports and service,please contact us as bellowing:
- Details
Whether used in distribution systems, substations, or other power equipment, this series of on-load tap-changers provides a stable and reliable voltage regulation solution to meet the needs of diverse scenarios. Whether in industry, agriculture, or construction, it delivers superior voltage control performance for your power equipment, ensuring the normal operation of your power supply system.
Tap-changer operating conditions:
1. The installation location must be free of heavy dust, explosive gases, and corrosive gases.
2. The switch should be stored in an ambient temperature range of -25°C to 45°C.
3. The switch should be used in transformer oil, and the oil temperature should be between -25°C and 100°C.
4. When the switch is mounted on the transformer, the vertical tilt should not exceed 2%.
Key Features and Advantages:
1. High Reliability
High-quality materials and advanced manufacturing processes ensure product stability and reliability, making it less prone to failure during long-term operation.
2. Flexible Adjustment
Through tap-changing operations, the line voltage can be flexibly adjusted according to actual needs, meeting voltage regulation requirements under varying load conditions.
3. Precise Control
A sophisticated tap-changing mechanism and reliable control system ensure accurate control and stability of the tap position.
4. Safety and Reliability
Multiple safety protection devices, such as overcurrent protection and short-circuit protection, ensure safe and reliable operation.
5. High Energy Efficiency
Tap-changer operating conditions:
1. The installation location must be free of heavy dust, explosive gases, and corrosive gases.
2. The switch should be stored in an ambient temperature range of -25°C to 45°C.
3. The switch should be used in transformer oil, and the oil temperature should be between -25°C and 100°C.
4. When the switch is mounted on the transformer, the vertical tilt should not exceed 2%.
Key Features and Advantages:
1. High Reliability
High-quality materials and advanced manufacturing processes ensure product stability and reliability, making it less prone to failure during long-term operation.
2. Flexible Adjustment
Through tap-changing operations, the line voltage can be flexibly adjusted according to actual needs, meeting voltage regulation requirements under varying load conditions.
3. Precise Control
A sophisticated tap-changing mechanism and reliable control system ensure accurate control and stability of the tap position.
4. Safety and Reliability
Multiple safety protection devices, such as overcurrent protection and short-circuit protection, ensure safe and reliable operation.
5. High Energy Efficiency
Precisely adjusting the line voltage reduces energy consumption and losses, improving system efficiency.
| No. | Category | ||||||
| MZ-III600 | MZ-I600 | MZ-I800 | MZ-I1200 | MZ-I1500 | |||
| 1 | Maximum rated through-current (A) | 600 | 600 | 800 | 1200 | 1500 | |
| 2 | Rated frequency (Hz) | 50 | |||||
| 3 | Number of phases and connection method | Three-phase Y connection | Single-phase arbitrary connection mode | ||||
| 4 | Maximum step voltage (V) | 3300 | |||||
| 5 | Rated step capacity (kVA) | 1500 | 1980 | 2640 | 3500 | 3500 | |
| 6 | Short circuit resistance（kA） | Thermal stability (3-second RMS value) | 8 | 8 | 16 | 24 | 24 |
| Dynamic stability (peak value) | 20 | 20 | 40 | 60 | 60 | ||
| 7 | Number of work positions | The sheave has 10, 12, 14, 16 and 18 gears. The maximum gear is 18 without a polarity selector and 35 with a polarity selector. | |||||
| 8 | Switch insulation level | Unit (kV) | Insulation level | ||||
| 35 | 60 | 110 | 220 | ||||
| Maximum Operating Voltage | 40.5 | 72.5 | 126 | 252 | |||
| Power Frequency Test Voltage (1 min) | 85 | 140 | 230 | 460 | |||
| Impact Test Voltage (1.2/50) | 200 | 350 | 550 | 1050 | |||
