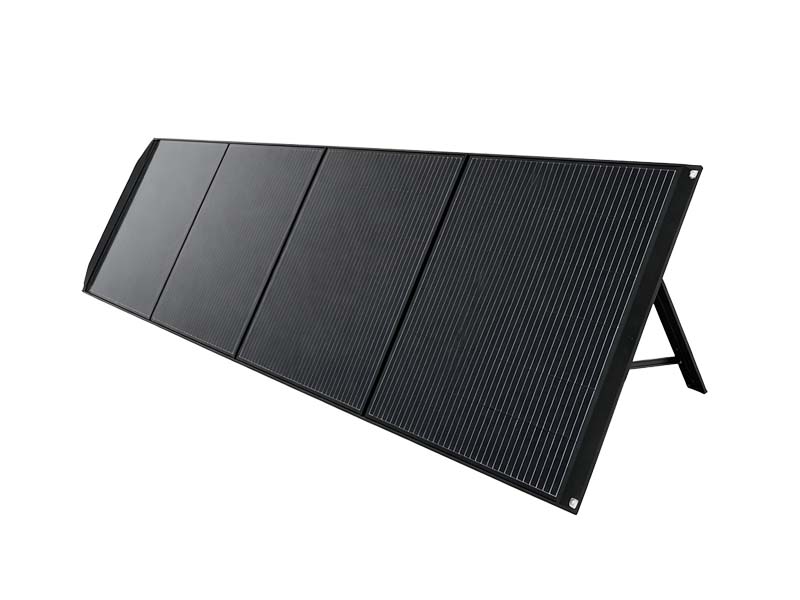

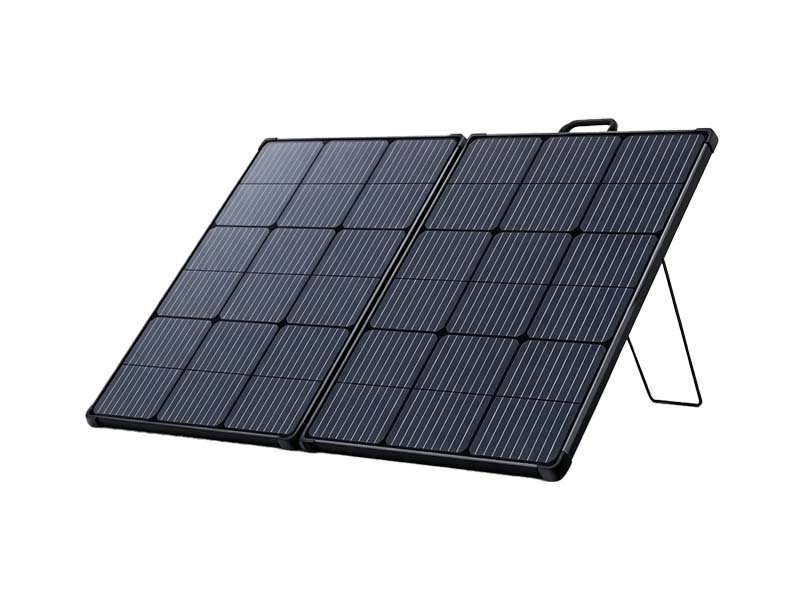

High Efficiency Portable Foldable Solar Panel for Camping RV Outdoor Power Station
If you are interested in our products or need technical supports and service,please contact us as bellowing:
- Details
PRODUCT FEATURES
1. Exquisite structure-Aluminum ally frame and stable supporting leg realize a good tit angle, also foldable design. convenient to open and fold
2. Light weight-Glass-free, the weight is relatively light with thin Aluminum frame
3. Waterproof- No fabric, IP65 Waterproof
4. Long lifetime-ETFE surface and Aluminum frame encapsulate solar cells inside to define a long lifetime
1. Exquisite structure-Aluminum ally frame and stable supporting leg realize a good tit angle, also foldable design. convenient to open and fold
2. Light weight-Glass-free, the weight is relatively light with thin Aluminum frame
3. Waterproof- No fabric, IP65 Waterproof
4. Long lifetime-ETFE surface and Aluminum frame encapsulate solar cells inside to define a long lifetime
5. Warranty 5 year
| ELECTRICAL PERFORMANCE | |||||
| Module Type | CSUL-50W | CSUL-100W | CSUL-210W | CSUL-300W | CSUL-400W |
| Maximum Power (Wp) | 50W | 100W | 210W | 300W | 400W |
| Open Circuit Voltage (Voc) | 21.83V | 22.42V | 22.42V | 21.24V | 42.48V |
| Short Circuit Current (Isc) | 2.97A | 5.79A | 12.16A | 18.33A | 12.22A |
| Maximum Power Voltage (Vmp) | 18.5V | 19V | 19V | 18V | 36V |
| Maximum Power Current (Imp) | 2.7A | 5.26A | 11.05A | 16.67A | 11.11A |
| Maximum Series Fuse | 10A | 10A | 10A | 10A | 10A |
| Cell Efficiency | 23% | 25.20% | 25.20% | 25.20% | 25.20% |
| Cell Type | Mono 182*45.5mm | Mono 210*70mm | Mono 210*70mm | Mono 210*105mm | Mono 210*70mm |
| Net Weight | 1.5 | 3 | 5.9 | 7.7 | 11.5 |
| Output | 0.27m Cable MC4 Connector | 0.27m Cable MC4 Connector | 0.27m Cable MC4 Connector | 0.27m Cable MC4 Connector | 0.27m Cable MC4 Connector |
| Unfolded Size | 1022x408x15mm | 1154x604x15mm | 2108x604x15mm | 2582x664x15mm | 3006x748x15mm |
| Folded Size | 408x415x30mm | 604x475x30mm | 604x485x40mm | 664x580x40mm | 748x700x40mm |
| Power Tolerance | ±3% | ||||
| Junction Box (Protection Degree) | IP64 | ||||
| Maximum System Voltage | 1000V/DC | ||||
