300-1000W 12V/24V 10-30A Sine Wave Output Power Inverter

If you are interested in our products or need technical supports and service,please contact us as bellowing:
This is an error tips
This is an error tips
This is an error tips
This is an error tips
This is an error tips
  • Details

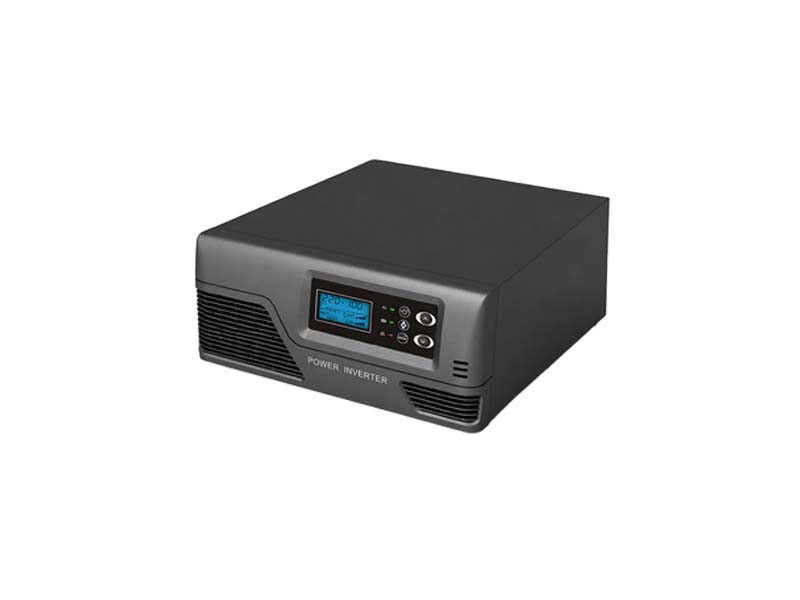

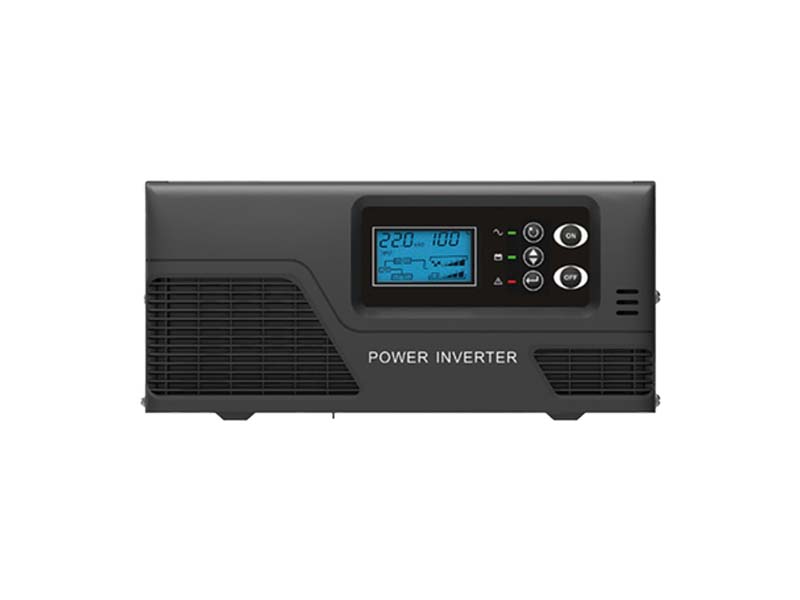

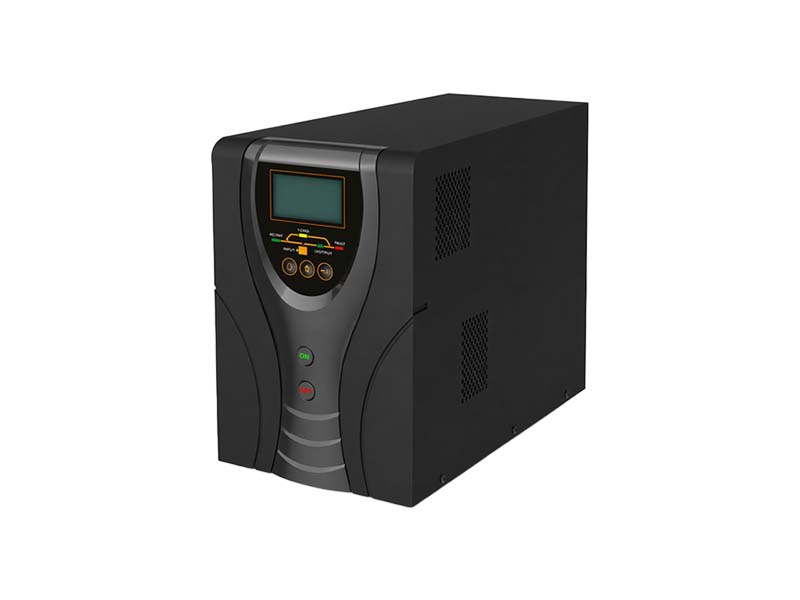

EP2000 PRO series inverter is a cost effective, intelligent with UPS function. The comprehensive LCD offers user-configurable and easy-accessible button adjustment such as battery charge current, battery charge voltage, frequency, buzzer etc. It's perfect for the user who need a simple and economical inverter,with user-friendly installnation and setting.Tower and rack design available for different choices

1. Rated power 300W to 1000W
2. Pure sine wave output
3. Smart LCD setting(frequency,charge voltage,charge curent,etc).
4. 3 steps charging algorithm
5. Built in AVR function
6. Overload and short-circuit protection
7. Battery reverse polarity protection (Optional)
8. Deep discharge protection

9. Cold start function

MODELEP20-0312 PROEP20-0612 PROEP20-0812 PROEP20-1012 PROEP20-0324 PROEP20-0624 PROEP20-0824 PROEP20-1024 PRO
Default Battery System Voltage12VDC24VDC
INVERTER OUTPUT
Rated Power300W600W800W1000W300W600W800W1000W
Surge Rating900VA1800VA2400VA3000VA900VA1800VA2400VA3000VA
WaveformPure sine wave
Voltage RegulationBattery mode:220 or 230VAC Line mode:220~240VAC
Output Frequency50Hz/60Hz
Inverter Frequency (Peak)>75%>81%
Bypass Efficiency>95%
Output Transfer TimeTypical:8ms 12ms(max)
AC INPUT
Voltage220/230/240VAC
Selectable Voltage Range140~280VAC±5%
Low Battery Alarm140VAC±5%
Low Voltage Recover150VAC±5%
High Battery Alarm280VAC±5%
High Voltage Recover270VAC±5%
Low Frequency Alarm45±5Hz
Low Frequency Recover46±5Hz
High Frequency Alarm65±5Hz
High Frequncy Recover64±5Hz
Nominal Input Range50Hz/60Hz±5Hz
AC Auto RestartYES
BATTERY
Minimum Start VoltageLow Battery Voltage Cutoff+0.5VLow Battery Voltage Cutoff+1.0V
Low Battery Voltage AlarmLow Battery Voltage Cutoff+0.5VLow Battery Voltage Cutoff+1.0V
Low Battery Voltage Cut Off10-12.0VDC20.0-24.0VDC
High Battery Voltage Alarm(13.8-14.5V)+1V for 12VDC mode(*2 for 24VDC)
AC CHARGE
Floating Voltage13.5-14.5VDC27-29VDC
Boost Voltage13.8~14.5VDC27.6~29VDC
Maximum Charge Current300W600W800W1000W300W600W800W1000W
10A20A25A30A5A10A15A15A
BYPASS &PROTECTION
Input WaveformPure sine wave
Input Frequency50Hz or 60Hz
Overload Protection110%~125%Load foult affter 60s;125%~150%Load foult affter 3s;>150%Load fault after 500ms
Over Temperature Protection≥90℃
Bypass Output Protection10A 250VAC
Output Circuit ProtectionYES
Battery Reverse ProtectionOptional
Battery Low Voltage ProtectionYES
Battery High Voltage ProtectionYES
Bypass Breaker Rating10A
Maximum Bypass Current10A
MECHANICAL SPECIFICATION
Machine Dimension(W*H*D)(mm)315*145*210
N.W(kg)300W600W800W1000W300W600W800W1000w
7.5 10.7 12.5 13.5 7.5 10.7 12.5 13.5
Package Dimension (W*H*D)(mm)420*280*225
G.W(kg)300W600W800W1000W300W600W800W1000W
8 11.5 13 14.0 8 11.5 13 14
OTHER
Operating Temperature0°℃~40℃ 0~90%relative humidity(non-condensing)
Storage Temperature-15℃ to 55℃
Altitude≤1000M
Audible Noise≤60dB
DisplayLED+LCD
Cooling ModeFan cooling
Fan Starting
Communication45C          statnsocosin


Feature Products
2-12kw High Frequency Sine Wave Output Solar Inverter
IP54 14kw Commercial Dual-Gun Vertical AC Fast EV Charger Ocpp Charging Station
Us Eorupean Standard 30-400kw Ocpp Commercial DC Fast EV Charger with Dual Gun

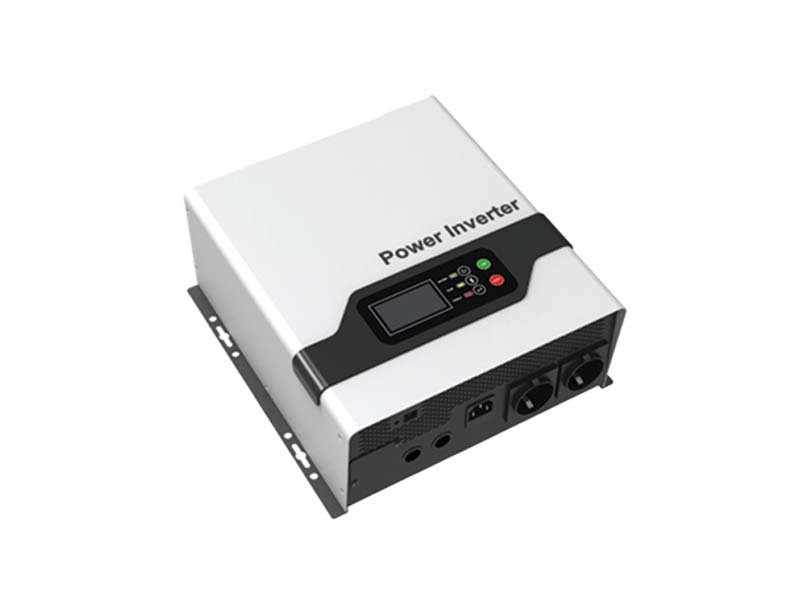

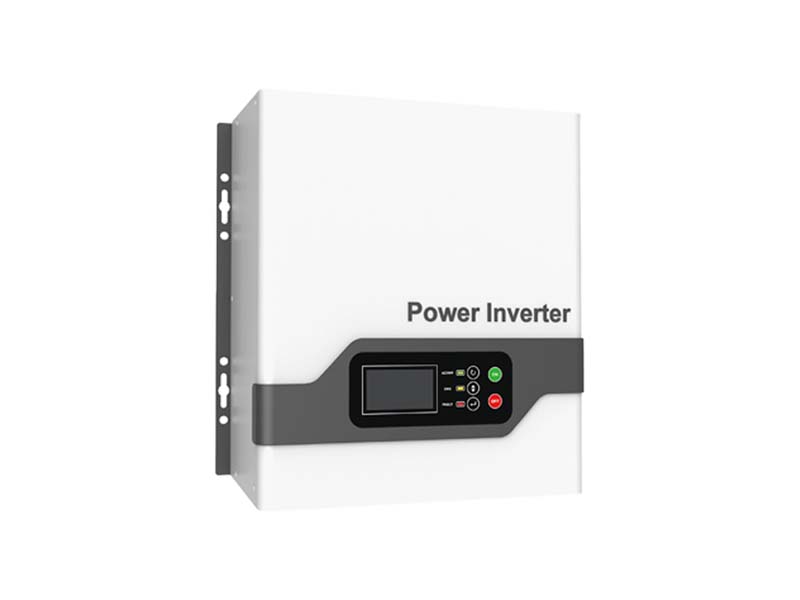

0.6-2.4kVA 12V/24V High Frequency Power Pure Sine Wave Inverter/Charger
