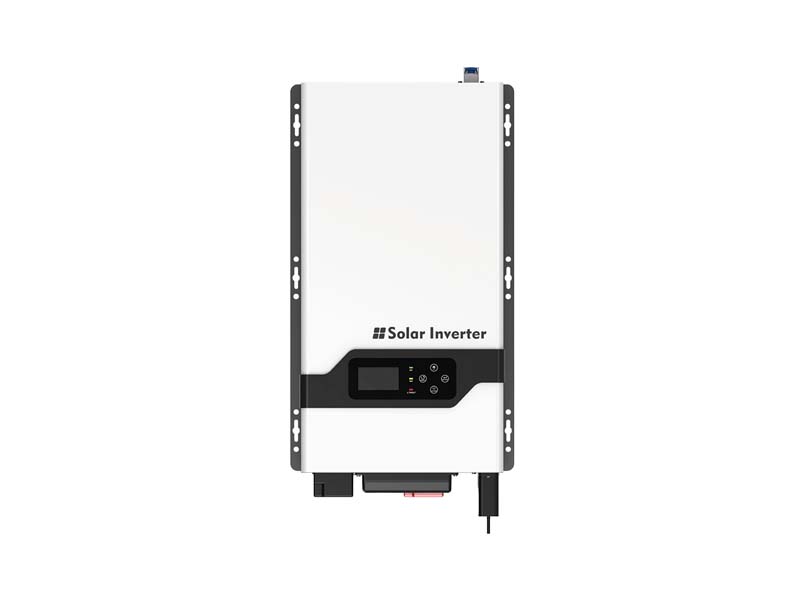

Low Frequency Pure Sine Wave Output Utility Priority/Battery Priority Solar Inverter
If you are interested in our products or need technical supports and service,please contact us as bellowing:
- Details
PV3000 VPM series is very economical pure sine wave solar inverter, inbuiltwith 60A MPPT Charger and AC Charger from 20A to 60A; Solar/AC priorityis configurable, when setting solar priority, solar will charge batteries as firstpriority, and AC can also charge batteries when solar charger current is toolower, in this way system charge is optimazed best. It enables inverter tooperate with all kinds of home appliances.
1. 3 Steps charging
1. 3 Steps charging
2. Overload and short-circuit protection
3. Set charging voltage/charging current
4. Battery low voltage shutdown point can be set to 10/10.5/11/11.5/12V Power-save mode
5. Set utility priority/battery priority
6. Set utility input wide/narrow range
7. Inverter voltage can be set to 110V/115V/120V or 220V/230V/240V
8. Inverter frequency can be set to 50Hz/60Hz
9. Set utility charging on/off switch
10.Inbuilt with 60A MPPT Solar Charge Controller
11.Add or Lithium Select
11.Add or Lithium Select
12.WIFI remote monitoring (optional)
13.With BMS lithium battery communication function (CAN port)
| MODEL | PV30-1012 VHM | PV30-1014 VHM | PV30-1512 VHM | PV30-1524 VHM | PV30-2012 VHM | PV30-2024 VHM | PV30-3024 VHM | PV30 -3048 VHM | PV30-4024 VHM | PV30-4048 VHM | PV30-5048 VHM | PV30-6048 VHM |
| Nominal Battery System Voltage | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 24VDC | 48VDC | 24VDC | 48VDC | 48VDC | 48VDC |
| INVERTER OUTPUT | ||||||||||||
| Rated Power | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | |||||
| Surge Rating | 3000VA | 4500VA | 6000VA | 9000VA | 12000VA | 15000VA | 18000VA | |||||
| Capable Of Starting Electric Motor | 1HP | 1HP | 1HP | 2HP | 3HP | |||||||
| Waveform | Pure sine wave/same as input(bypass mode) | |||||||||||
| Nominal Output Voltage RMS | 220V/230V/240VAC(±10%RMS) | |||||||||||
| Output Frequency | 50Hz/60Hz±0.3Hz | |||||||||||
| Inverter Efficiency (Peak) | >88% | |||||||||||
| Line Mode Efficiency | >95% | |||||||||||
| Power Factor | 1.0 | |||||||||||
| Typical Transfer Time | 10ms(max) | |||||||||||
| Overload | 100%<Load<110%(alarm 5min then stop output and fault code 07) 110%<Load<125%(alarm 60s then stop output and fault code 07) Load>125%(alarm 10s then stop output and fault code 07) | |||||||||||
| AC INPUT | ||||||||||||
| Voltage | 230VAC | |||||||||||
| Selectable Voltage Range | 155~265VAC(For personal computers) | |||||||||||
| Frequency Range | 50Hz/60Hz(Auto sensing)40~80Hz | |||||||||||
| BATTERY | ||||||||||||
| Minimum start voltage | (10V/10.5V/11V/11.5V/12V)+0.5V for 12VDC mode(*2 for 24VDC,*4 for 48VDC) | |||||||||||
| Low Battery Voltage Alarm | (10V/10.5V/11V/11.5V/12V)+0.5V for 12VDC mode(*2 for 24VDC,*4 for 48VDC) | |||||||||||
| Low Battery Voltage Cut Off | 10V/10.5V/11V/11.5V/12V for 12VDC mode(*2 for 24VDC,*4 for 48VDC) | |||||||||||
| High Battery Voltage Alarm | (12-14.5V)+1V for 12VDC mode(*2 for 24VDC,*4 for 48VDC) | |||||||||||
| High Battery Voltage Recover | (12-14.5V)+0.5V for 12VDC mode(*2 for 24VDC,*4 for 48VDC) | |||||||||||
| Energy Saving Mode | Load ≤50±20W(120V)/100±20W(220V) | |||||||||||
| CHARGER | ||||||||||||
| Output Voltage | Depends on battery type | |||||||||||
| Overcharge Protection S.D. | 15.7VDC for 12VDC mode(*2 for 24VDC mode,*4 for 48VDC mode) | |||||||||||
| Maximum Charge Current | 30A | 20A | 45A | 25A | 60A | 30A | 40A | 20A | 60A | 30A | 35A | 40A |
| PAYPASS &PROTECTION | ||||||||||||
| Input Voltage Waveform | Sine wave(grid or generator) | |||||||||||
| Nominal Input Frequency | 50Hz or 60Hz | |||||||||||
| Overload Protection (SMPS Load) | Circuit breaker | |||||||||||
| Output Short Circuit Protection | Circuit breaker | |||||||||||
| AC Input Breaker | 1-3K/30A | 4-6K/50A | ||||||||||
| SOLAR CHARGER | ||||||||||||
| Maximum PV Array Power | 1250W | 2500W | 1250W | 2500W | 1250W | 2500W | 2500W | 5000W | 2500W | 5000W | 5000W | 5000w |
| Maximum PV Charge Current | 80A±4A | |||||||||||
| DC Voltage | 12V/24V auto work | 24V/48V auto work | ||||||||||
| MPPT Range @Operating Voltage | 15~95VDC@12V/30~230VDC@24V | 30~230VDC @24V/60~230VDC @48V | ||||||||||
| Maximum PV Array Open Circuit Voltage | 245VDC | |||||||||||
| Standby Power Consumption | <2W | |||||||||||
| MECHANICAL SPECIFICATIONS | ||||||||||||
| Mounting | Wall Mount | |||||||||||
| Machine Dimension(W*H*D)(mm) | 303*493*200 | 305*531*202 | ||||||||||
| Package Dimensions(W*H*D)(mm) | 615*400*319 | 686*400*319 | ||||||||||
| N.W(kg) | / | / | ||||||||||
| G.W(kg) | / | / | ||||||||||
| OTHER | ||||||||||||
| Operating Temperature Range | 0℃to 40℃ | |||||||||||
| Storage Temperature | -15℃to 60℃ | |||||||||||
| Audible Noise | 60dB MAX | |||||||||||
| Display | LED+LCD | |||||||||||
| Standard Warranty | 2 year | |||||||||||
| CERTIFICATION &STANDARDS | ||||||||||||
| CE-EMC+LVD(EN6100-6-3:2007,EN6100-6-1:2017+EN IEC62109-1:2010,EN IEC62109-2:2011) | ||||||||||||
