Details

Features:

1. Excellent oil resistance; stable performance of transformer oil in hot oil (150ºC);

2. Excellent resistance to weathering, UV aging, and ozone aging; service life in equipment is over 20 years, pioneering maintenance-free transformers in China;

3. Excellent high-temperature resistance;

4. Operating temperature: -30ºC~180ºC or -40ºC~180ºC.

Applicable Environment:

1. Ambient temperature: -30ºC~180ºC or -40ºC~180ºC;

2. Areas with strong ultraviolet radiation;

3. Parts exposed to air.

Applicable Equipment:

Suitable for oil-immersed transformers, instrument transformers, and other power transmission and transformation equipment and their supporting components.

Applicable Medium:

Transformer oil.

Product Name	outer diameter	inner diameter	high	Matching rubber pad	outer diameter	inner diameter	high
High-pressure rubber beads	29	12	17	rubber pad	90	65	6
Low-pressure rubber beads	25	12	15	rubber pad	45	28	6
Low-pressure rubber beads	35	16	15	rubber pad	72	45	6
Low-pressure rubber beads	35	20	15	rubber pad	72	45	6
Low-pressure rubber beads	40	24	18	rubber pad	85	55	6
Low-pressure rubber beads	50	30	18	rubber pad	85	55	6
Low-pressure rubber beads	50	33	18	rubber pad	85	55	6
Low-pressure rubber beads	72	42	24	rubber pad	96	66	6
Low-pressure rubber beads	72	45	24	rubber pad	96	66	6
Low-pressure rubber beads	72	48	24	rubber pad	110	88	8
Low-pressure rubber beads	80	56	24	rubber pad	120	85	8

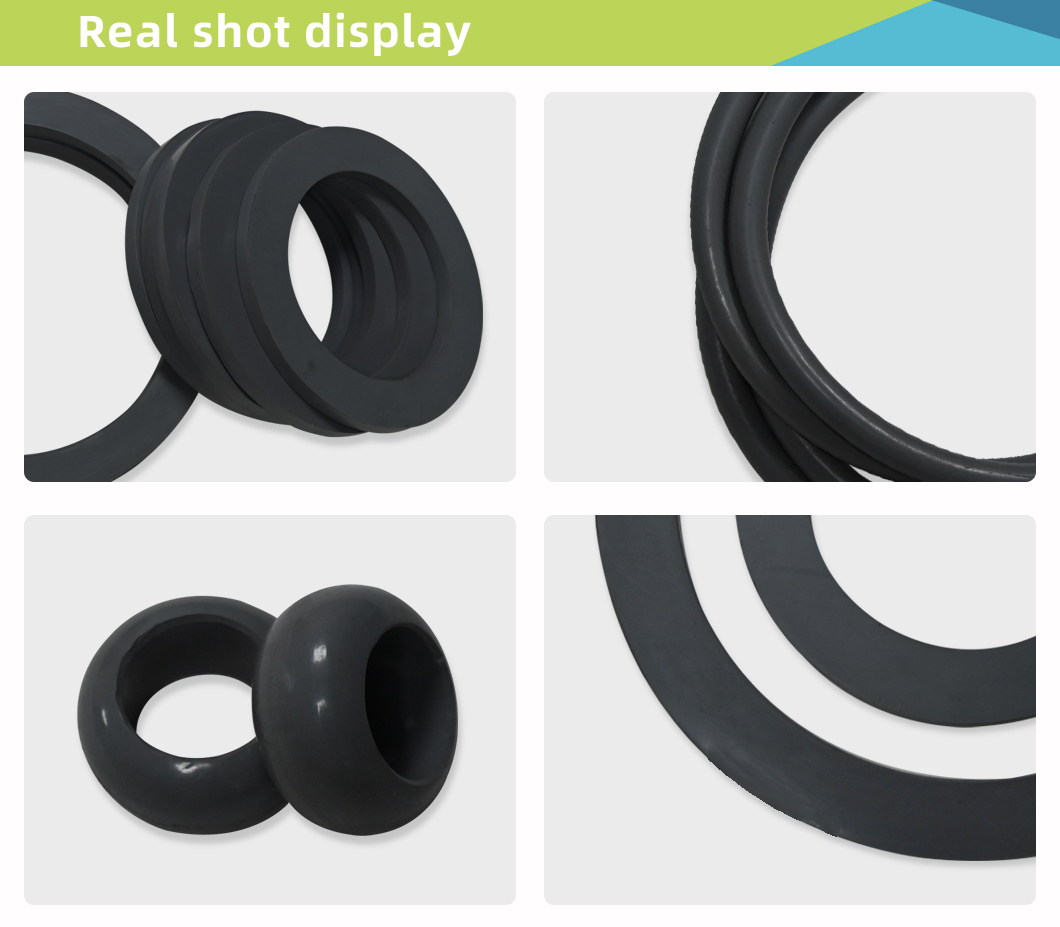

xq_04
