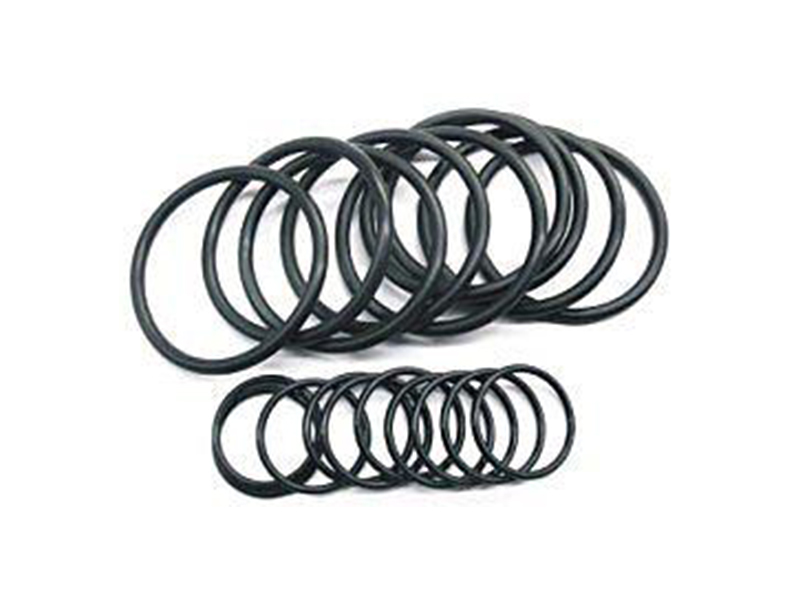

Transformer Nitrile Rubber Acrylic Rubber Insulator Washer for Oil Seal
If you are interested in our products or need technical supports and service,please contact us as bellowing:
- Details
Acrylic rubber:
Features:
1. Excellent oil resistance, with stable performance even in hot transformer oil (150°C);
2. Excellent resistance to weathering, UV aging, and ozone aging, resulting in a service life of over 20 years in equipment
3. Excellent high-temperature resistance;
4. Operating temperature: -30°C to 180°C or -40°C to 180°C.
Applicable Environments:
1. Ambient temperatures of -30°C to 180°C or -40°C to 180°C;
2. Areas with strong UV rays;
3. Areas exposed to air.
Applicable Equipment:
Suitable for oil-immersed transformers, instrument transformers, and other power transmission and transformation equipment, as well as their associated components.
Applicable Media:
Transformer oil.
Nitrile rubber:
Features:
1. Excellent oil resistance, including resistance to transformer oil and dodecylbenzene oil;
2. Operating temperature: -30°C to 105°C or -40°C to 105°C.
Applicable Environment:
1. Ambient temperature not exceeding -40°C to 105°C;
2. Low UV exposure;
3. Suitable for use inside equipment with no exposure to external air.
Applicable Equipment:
Suitable for oil-immersed transformers, instrument transformers, switches, capacitors, and other power transmission and transformation equipment and their associated components.
Applicable Media:
Transformer oil, dodecylbenzene oil.
Basic Properties:
Features:
1. Excellent oil resistance, with stable performance even in hot transformer oil (150°C);
2. Excellent resistance to weathering, UV aging, and ozone aging, resulting in a service life of over 20 years in equipment
3. Excellent high-temperature resistance;
4. Operating temperature: -30°C to 180°C or -40°C to 180°C.
Applicable Environments:
1. Ambient temperatures of -30°C to 180°C or -40°C to 180°C;
2. Areas with strong UV rays;
3. Areas exposed to air.
Applicable Equipment:
Suitable for oil-immersed transformers, instrument transformers, and other power transmission and transformation equipment, as well as their associated components.
Applicable Media:
Transformer oil.
Nitrile rubber:
Features:
1. Excellent oil resistance, including resistance to transformer oil and dodecylbenzene oil;
2. Operating temperature: -30°C to 105°C or -40°C to 105°C.
Applicable Environment:
1. Ambient temperature not exceeding -40°C to 105°C;
2. Low UV exposure;
3. Suitable for use inside equipment with no exposure to external air.
Applicable Equipment:
Suitable for oil-immersed transformers, instrument transformers, switches, capacitors, and other power transmission and transformation equipment and their associated components.
Applicable Media:
Transformer oil, dodecylbenzene oil.
Basic Properties:
Nitrile rubber has excellent oil resistance, second only to polysulfide rubber and fluororubber, and offers excellent wear resistance and airtightness. However, Nitrile rubber is not resistant to ozone and aromatic, halogenated hydrocarbons, ketones, and ester solvents, making it unsuitable for use as an insulating material.

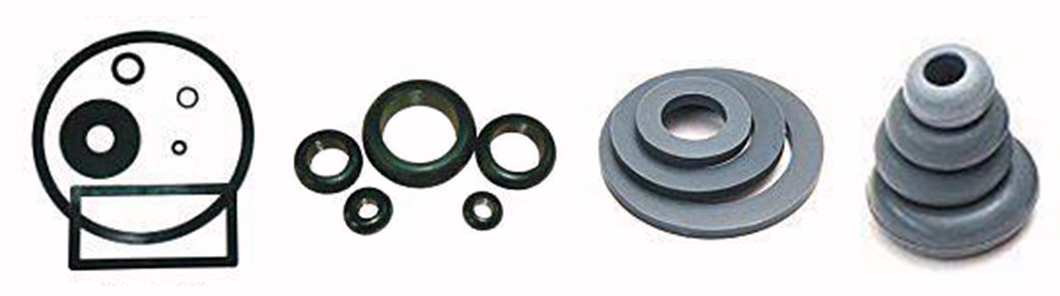

| Product Name | outer diameter | inner diameter | high | Matching rubber pad | outer diameter | inner diameter | high |
| High-pressure rubber beads | 29 | 12 | 17 | rubber pad | 90 | 65 | 6 |
| Low-pressure rubber beads | 25 | 12 | 15 | rubber pad | 45 | 28 | 6 |
| Low-pressure rubber beads | 35 | 16 | 15 | rubber pad | 72 | 45 | 6 |
| Low-pressure rubber beads | 35 | 20 | 15 | rubber pad | 72 | 45 | 6 |
| Low-pressure rubber beads | 40 | 24 | 18 | rubber pad | 85 | 55 | 6 |
| Low-pressure rubber beads | 50 | 30 | 18 | rubber pad | 85 | 55 | 6 |
| Low-pressure rubber beads | 50 | 33 | 18 | rubber pad | 85 | 55 | 6 |
| Low-pressure rubber beads | 72 | 42 | 24 | rubber pad | 96 | 66 | 6 |
| Low-pressure rubber beads | 72 | 45 | 24 | rubber pad | 96 | 66 | 6 |
| Low-pressure rubber beads | 72 | 48 | 24 | rubber pad | 110 | 88 | 8 |
| Low-pressure rubber beads | 80 | 56 | 24 | rubber pad | 120 | 85 | 8 |
