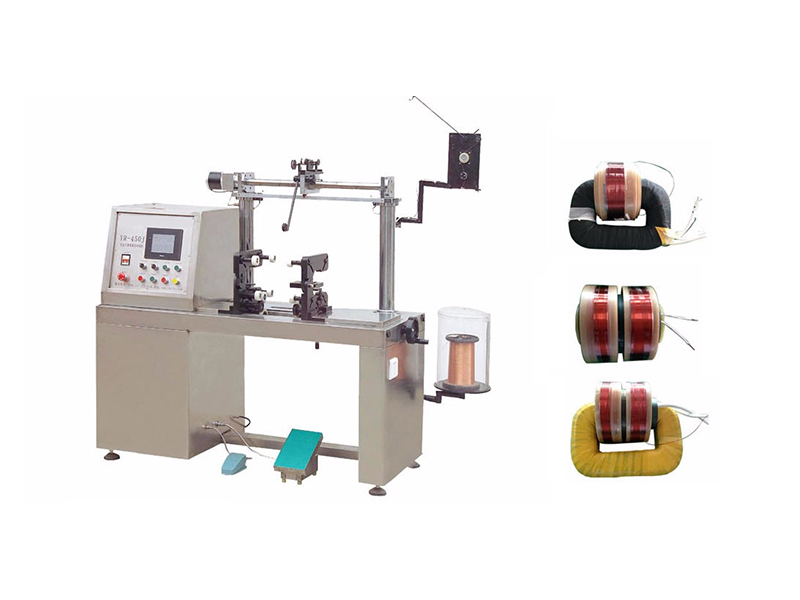

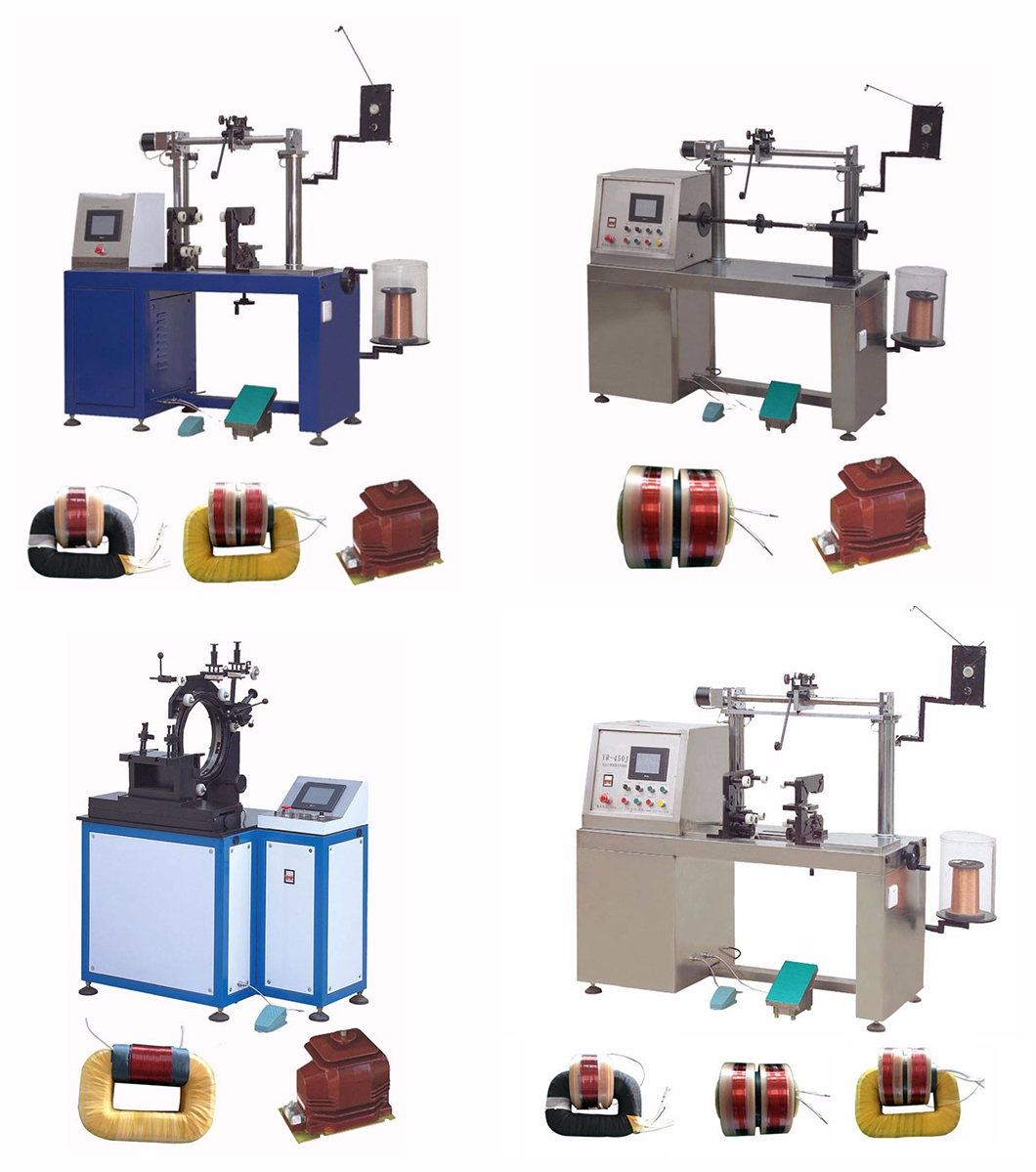

Voltage Transformer Coil Winding Machine
- Details
This machine adopts the international most advanced PLC control technology,with the advantages of complete function and simple operation. It can perform the forward and reversal winding and counting operation,power failure protection, wire disconnection protection, stop brake, setup of winding position, location and fault prompt,meanwhile,it can set the procedures and display the operation state through the touch panel,and, its interface can properly display the wire diameter, rotation speed, number of turns and number of layer. Its main shaft control adopts the frequency-conversion stepless speed adjustment,with the characteristics of short driving chain,large driving torque,wide speed adjustment range, low noise and so on; its speed control has two modes:automatic setup and foot switch speed adjustment,which take the great convenience for user's operation.Its wire arranging operation is finished by the stepping motor and high-precision ball spline,the control precision can reach as high as 0.001mm.The counting operation adopts the light-grid rotary encoder,the output rotation speed and angle signal are traced with the data,so as to keep the main shaft rotation and wire arranging motion very precise, the error is within ±0.1%.
| Model | 240J | 360J |
| Nominal diameters of enameled wire | φ0.1~1.5mm | φ0.1~1.5mm |
| Max rotation diameter of coil | φ240mm | φ360mm |
| Min rotation diameter of coil | φ50mm | φ50mm |
| Max winding breadth | 210mm | 350mm |
| Winding rotation speed range | 1390rpm | 1390rpm |
| Machine tool power | 0.75kW | 1.5KW |
| Input power of machine tool | 220V±10% | 220V±10% |
| Outline size of machine tool | 1300x550x1300mm | 1300x550x1400mm |
| Model | YB-300F | YB-300FM |
| Diameter of Windable Electromagnetic Wire | φ 0.5~2.6 mm | φ 0.5~2.6 mm |
| Length of Wound Coil | 300 mm | 300 mm |
| Width of Wound Coil | 200 mm | 200 mm |
| Height of Wound Coil | 80 mm | 80 mm |
| Maximum Winding Rotation Speed | 100 rpm | 100 rpm |
| Maximum Power of Winding Motor | 1.5 kW | 1.5 kW |
| Maximum Outline Size of Machine Tool | 700 × 1000 × 1300 mm | 800 × 1100 × 1300 mm |
