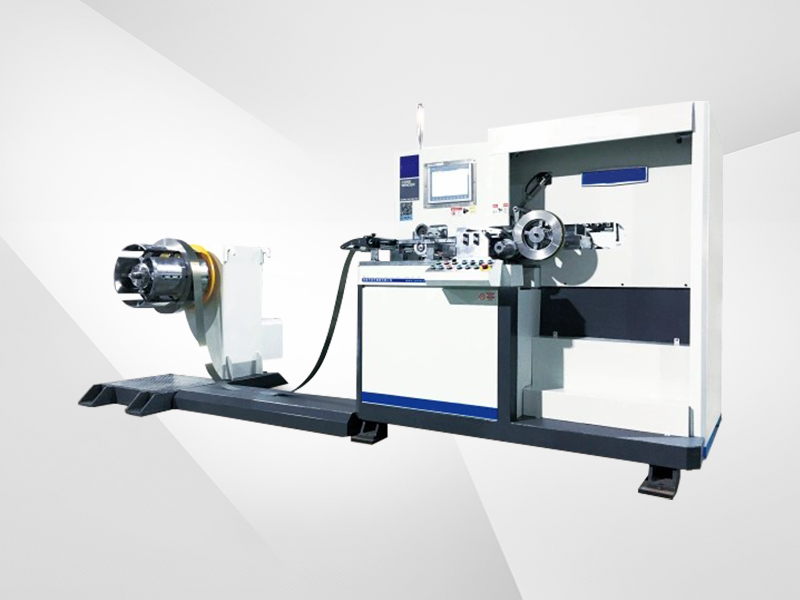

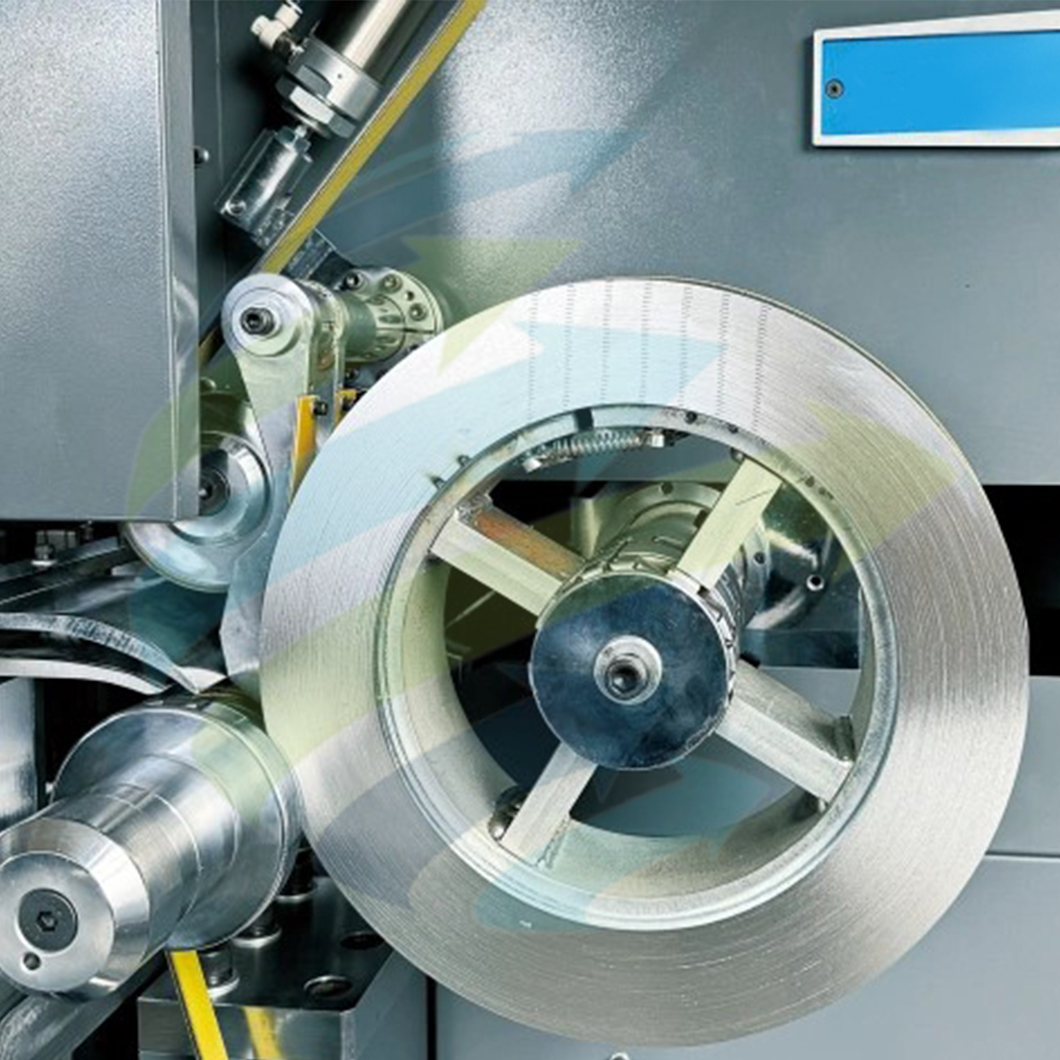

Wound Core Winder Machine Transformer Wound Core Forming Machine
If you are interested in our products or need technical supports and service,please contact us as bellowing:
- Details
1. Fully automatic cutting and winding.
2. Two models,800 &1400,equipped with hydraulic forming machines.

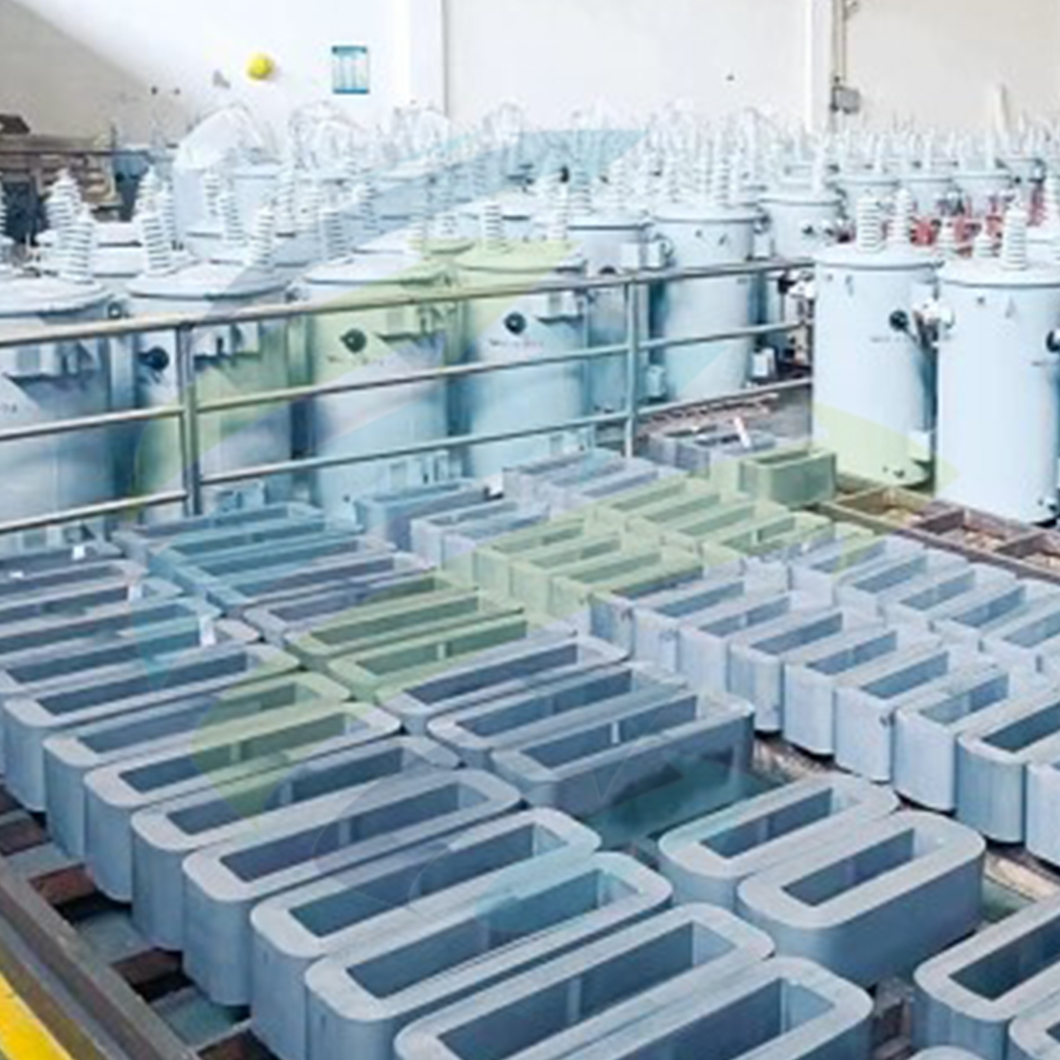

3. Produce both Distributed Gap Core and Toroidal Core.
4. With vertical 2-15 steps,1-3 pieces per step.
5. The gap size and tension can be adjustable on the HMI.
2. Two models,800 &1400,equipped with hydraulic forming machines.
3. Produce both Distributed Gap Core and Toroidal Core.
4. With vertical 2-15 steps,1-3 pieces per step.
5. The gap size and tension can be adjustable on the HMI.
6. Automatic robotic arms for material unloading are optional.
| Model | RCW800-250 | RCW1400-400 |
| Maximum Processing Diameter | 800mm | 1400mm |
| Die Diameter | 115-750mm | 150-1350mm |
| Steel Strip Width | 40-250mm | 100-400mm |
| Steel Strip Thickness | 0.18-0.35mm | 0.18-0.35mm |
| Step Quantity | 2-15mm | 2-15mm |
| Opening Gap Range | 3-6mm | 5-8mm |
| Maximum Core Weight | 400kg | 500kg |
| Production Speed | 60m/min | 60m/min |
| Uncoiler (Hydraulic Expansion) | ||
| Maximum Material Outer Diameter | 1200mm | 1200mm |
| Inner Diameter Expansion Range | 495-508mm (Standard) | 495-508mm (Standard) |
| Maximum Load Capacity | 2000kg | 3000kg |

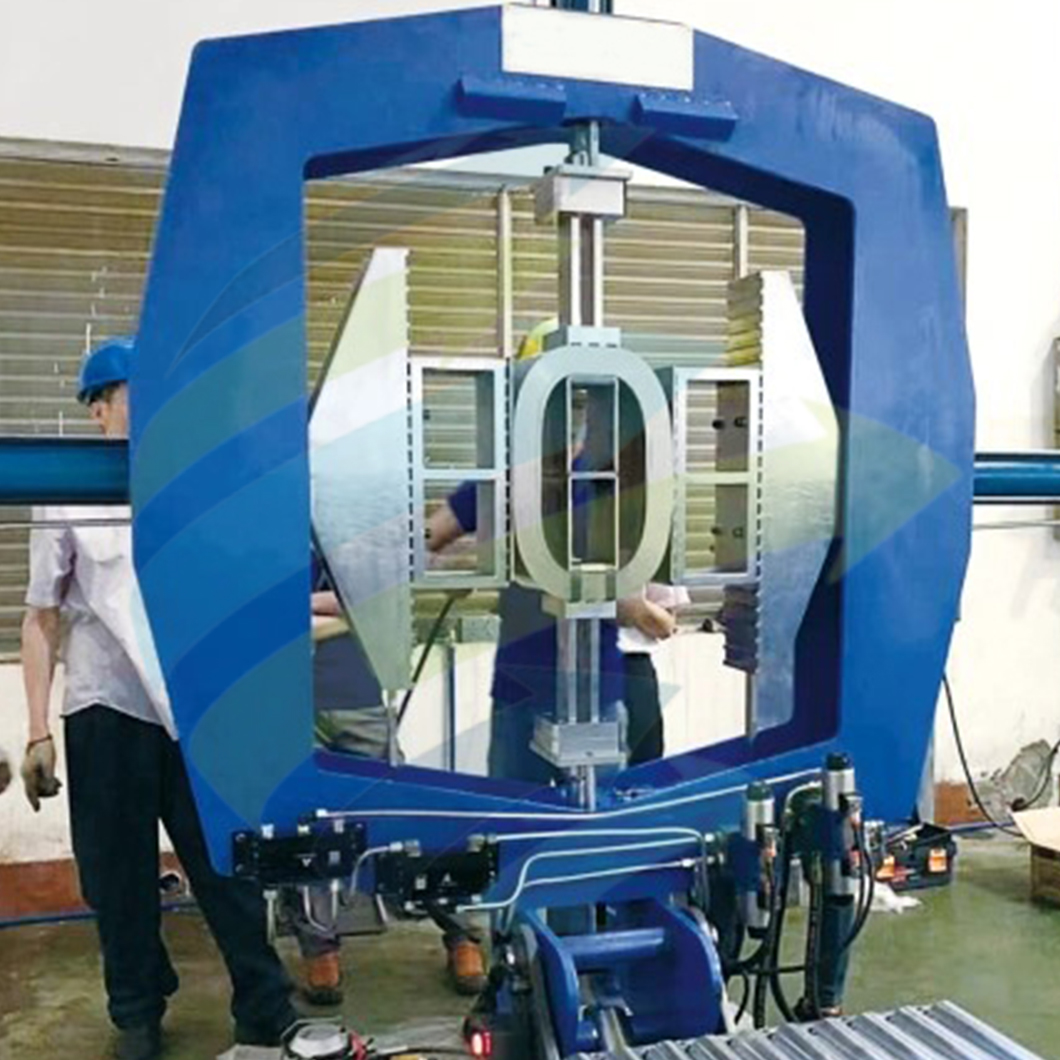

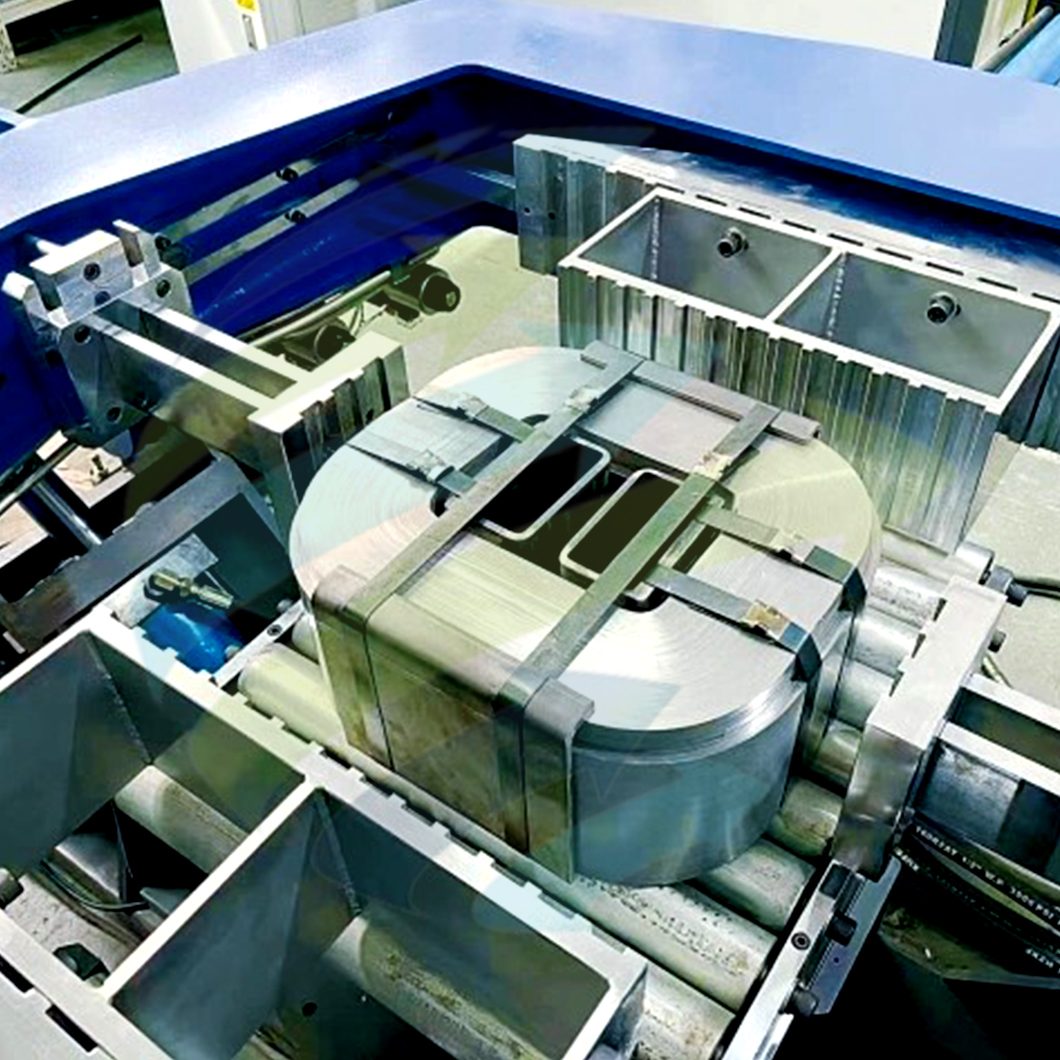

| Hydraulic Core Forming Press | ||
| Equipment Model | SCP-900 | SCP-1500 |
| Forming Range | 1100x960mm | 1500x1500mm |
