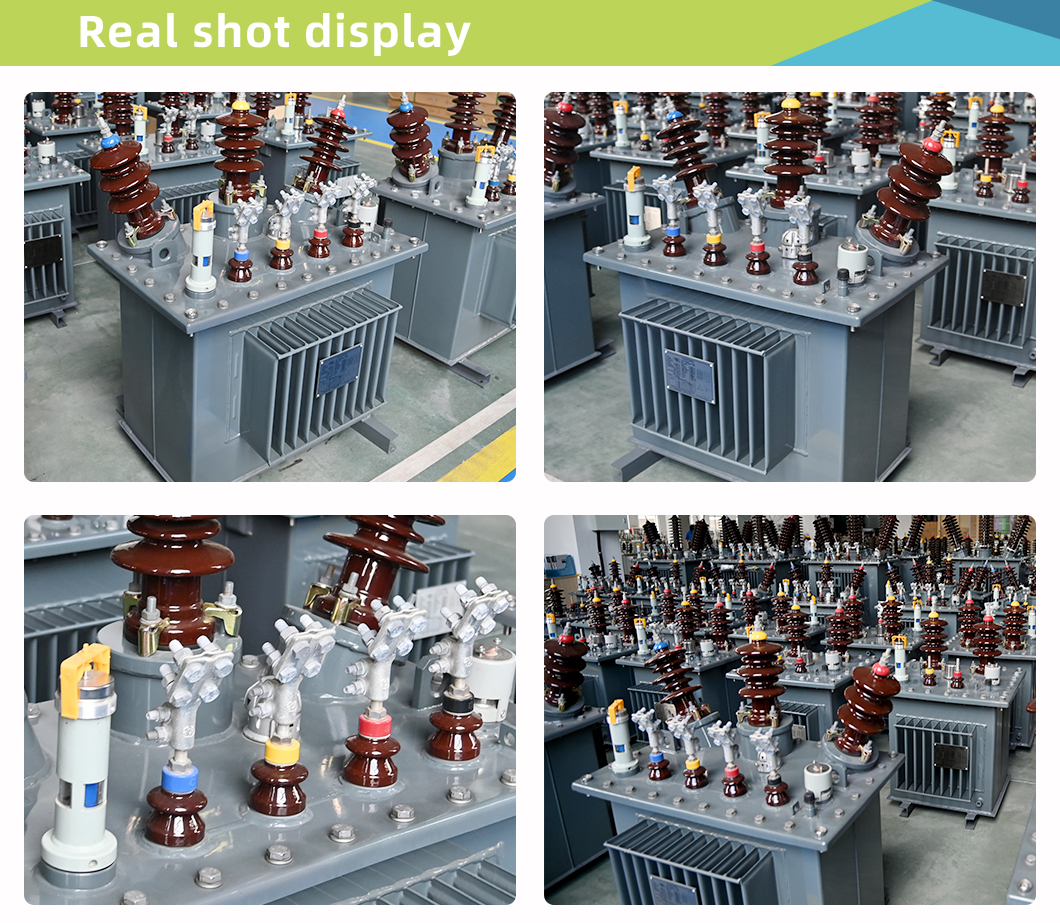

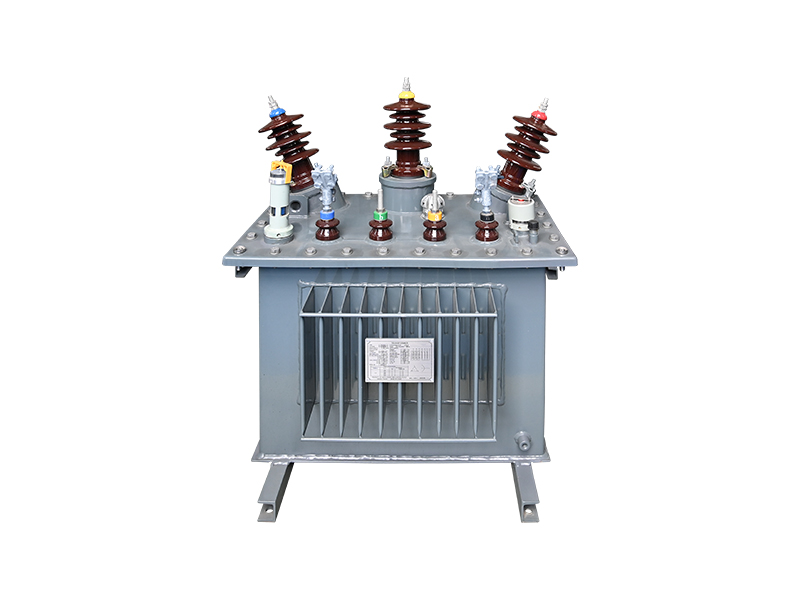

10kv 35kv Oil-Immersed Three-Phase Distribution Transformer
- Details
Oil-immersed power transformers are electrical appliances that use insulating oil as the insulating medium and are composed of cores, coils, voltage regulator switches, oil tanks, etc.to change voltage and transmit AC power.It has the characteristics of small size and strong weather resistance. Applicable to power systems, industrial and mining enterprises, transportation, post &telecommunications and scientific research bureaus, etc.It is divided into flat stacked core series, three-dimensional rol-core series, amorphous alloy series and other products below 35kV.The structure is flexible and diverse,the appearance is good-looking,and it can mee the needs of different users.
| 10kV PRODUCTS |
| S11(S13,S20,S22)series three-phase oil-immersed self-cooling double winding non-excitation voltage regulating distribution transformer |
| S13(S20,S22)-M.RLseries three-phase oil-immersed three-dimensional roll-core self-cooling double winding non-excitation voltage regulating distribution transformer |
| SH15(SH21,SH25)series three-phase oil-immersed self-cooling amorphous alloy core double winding non-excitation voltage regulating distribution transformer |
| 20kV PRODUCTS |
| S11 series 20kV three-phase oil-immersed self-cooling double winding non-excitation voltage regulating distribution transformer |
| S13 series 20kV three-phase oil-immersed self-cooling double winding non-excitation voltage regulating distribution transformer |
| 35kV PRODUCTS |
| S11 series 35kV three-phase oil-immersed self-cooling double winding non-excitation voltage regulating distribution transformer |
Note:if you need other types of single-phase and three-phase oil-immersed distribution transformers of 10-35kV, please contact our for specific technical parameters and requirements.
NORMAL USE CONDITIONS OF THE PRODUCT
| Ambient air temperature:+40ºC--45ºC; |
| Monthly average hot temperature:+30ºC; |
| Annual average hot temperature:+20ºC; |
| Altitude:≤1000m; |
| Pollution level:class 3; |
| Power supply voltage waveform:approximately sine wave; |
Note:If the use condition is more special than the above-mentioned conditions,please contact our transformer team for specific technical parameters and requirements
.
