Details

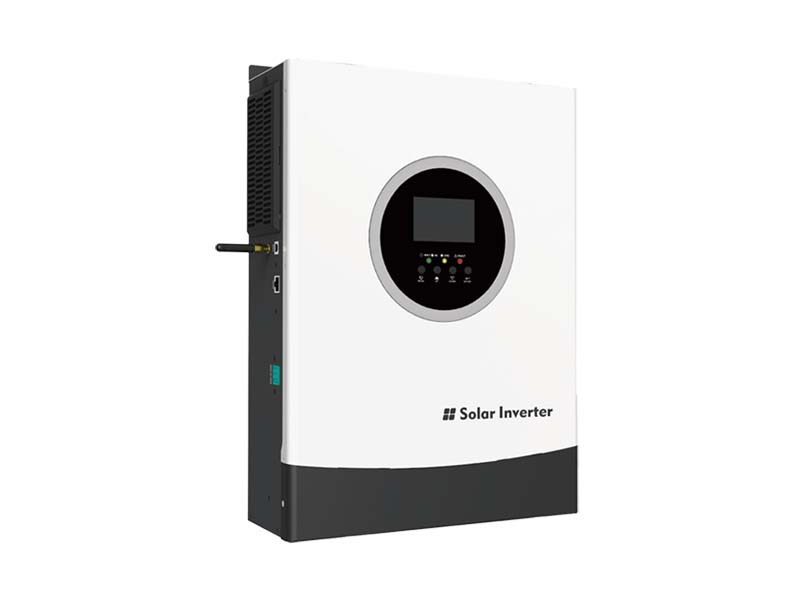

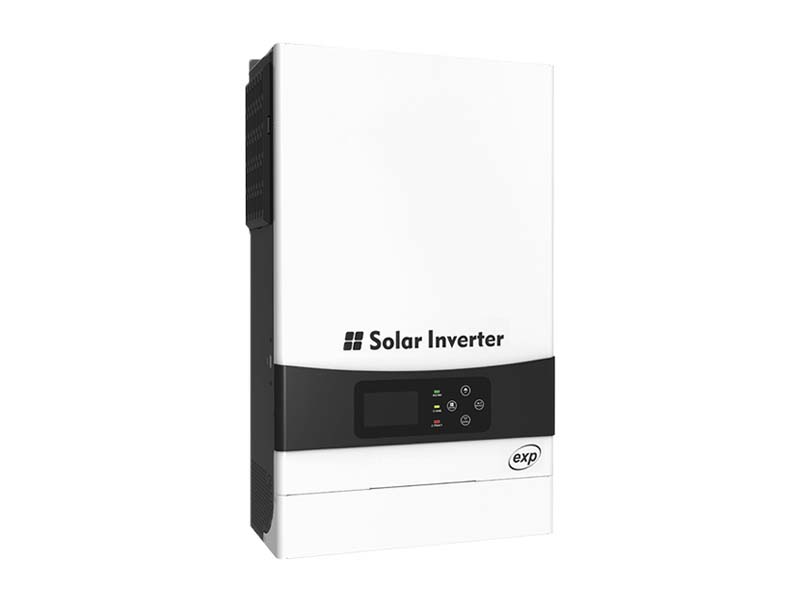

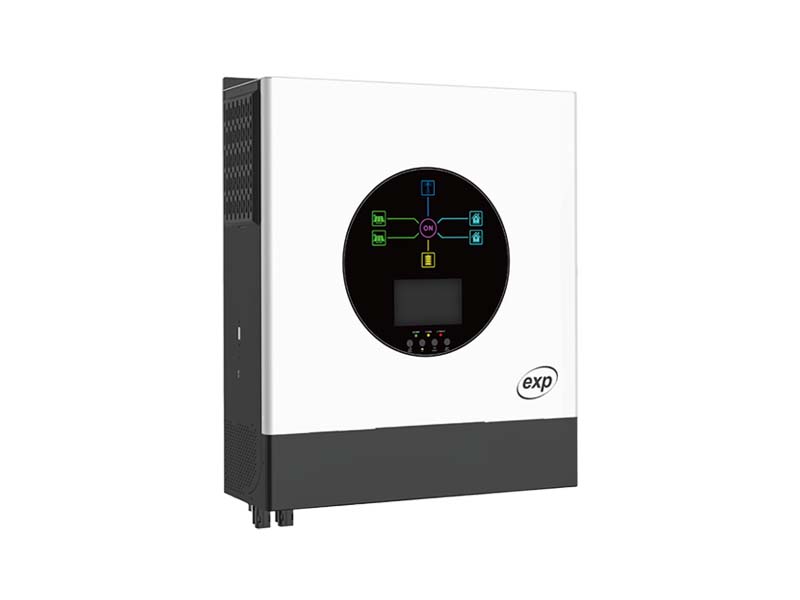

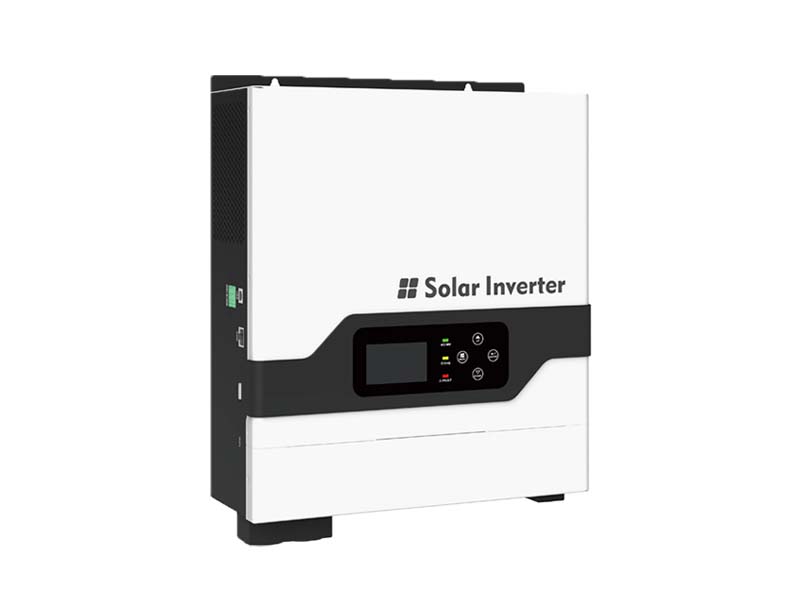

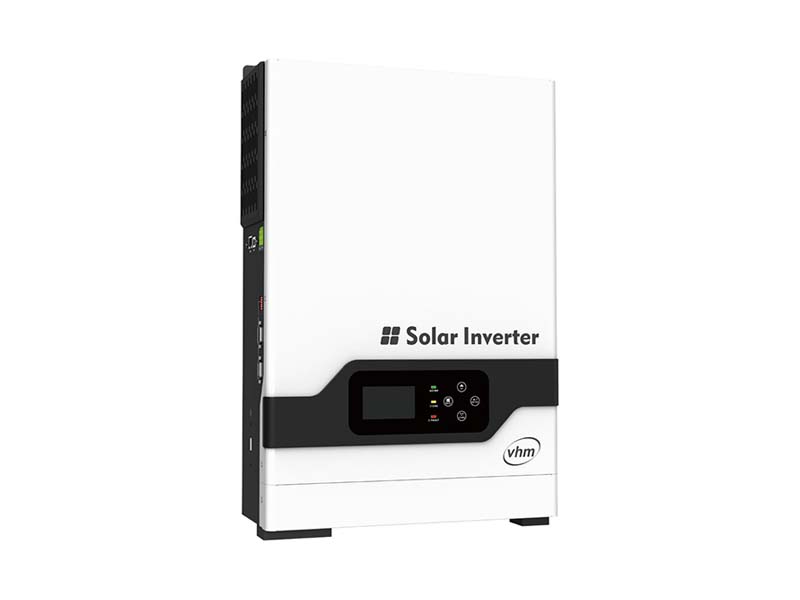

This is a Multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. Can run without battery. The Maximum PV input voltage can reach 400V/450V/500V, which can help customers make full use of solar energy.

1. Provide OEM Services: Appearance and Color

2. Complete Solar System for Sale (Optional)

3. Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).

4. Built-in MPPT solar charge controller

5. Wide PV input voltage range

6. Can provide the power to the load without battery

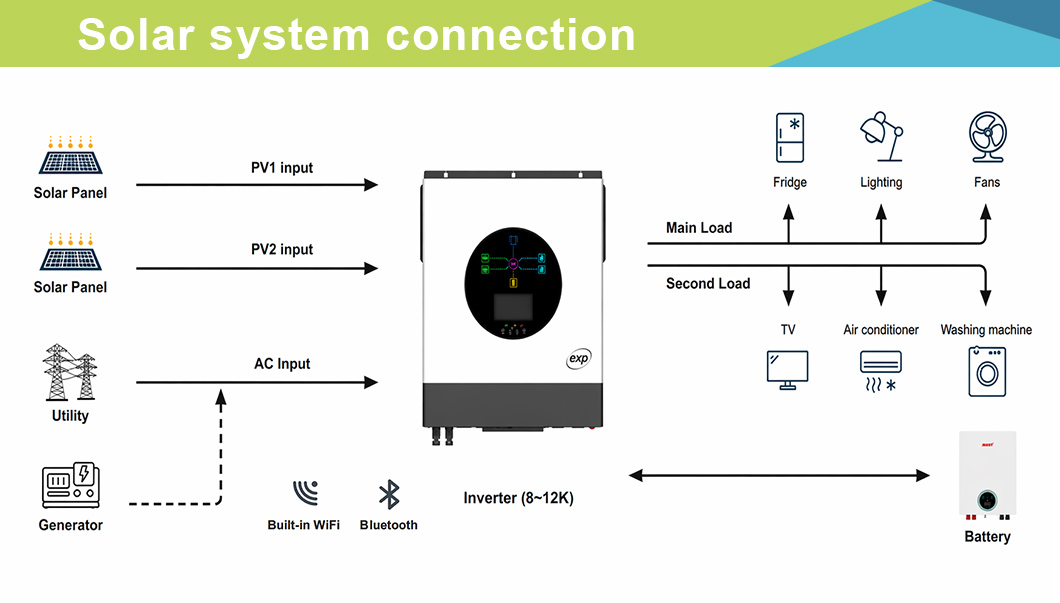

7. Combining solar system, AC utility, and battery power source to supply continuous power

8. Overload, short circuit and Deep discharge protection

9. Cold start function

10.Support RS485,CAN monitoring function
11.Dual outputs for smart load management

12.Can communicate with lithium batteries (CAN port)

MODEL	2012	3624	4024	6048	6248	8048	10048	12048
Nominal Battery System Voltage	12VDC	24VDC	24VDC	48VDC	48VDC	48VDC	48VDC	48VDC
INVERTER OUTPUT
Rated Power (Main+Second Load)	2000VA/ 2000W	3600VA/ 3600W	4000VA/ 4000W	6000VA/ 6000W	6200VA/ 6200W	8000VA/ 8000W	10000VA/ 10000W	12000VA/ 12000W
Battery Mode (Main+Second Load)	2000VA/ 1600W	3000VA/ 3000W	3500VA/ 3500W	5500VA/ 5500W	6200VA/ 6200W	8000VA/ 8000W	10000VA/ 10000W (Battery current limited)	12000VA/ 12000W (Battery current limited)
Surge Power	3200W	6000W	7000W	11000W	12400W	16000W	20000W	24000W
Waveform	Pure sine wave
AC Voltage Regulation (Batt.Mode)	230VAC±5%(Setting)
Inverter Efficiency(Peak)	90~93%
Transfer Time	10ms(UPS/VDE4105)/20ms (APL)
AC INPUT
Voltage	230VAC±5%
Selectable Voltage Range	170~280VAC(UPS)/90~280VAC(APL)/184~253VAC(VED4105)
Frequency Range	50Hz/60Hz(Auto sensing)
BATTERY
Normal voltage	12VDC	24VDC	24VDC	48VDC	48VDC	48VDC	48VDC	48VDC
Floating Charge Voltage	13.7VDC	27.4VDC	27.4VDC	54.8VDC	54.8VDC	54.8VDC	54.8VDC	54.8VDC
Overcharge Protection	15VDC	30VDC	30VDC	60VDC	60VDC	60VDC	60VDC	60VDC
SOLAR CHARGER &AC CHARGER
Maximum PV Array Open Circuit Voltage	400VDC	400VDC	450VDC	450VDC	500VDC	500VDC	500VDC	500VDC
Maximum PV Input Current	16A	18A	18A	28A	28A	18A*2	27A*2 (40A max)	27A*2 (40A max)
Charging Algorithm	3-Step(Flooded Battery,AGM/GEL/LEAD Battery),4-Step (Li)
Maximum PV Array Power	2000W	4000W	4000W	6000W	6200W	4000W*2	5000W*2	6000W*2
PV Array MPPT Voltage Range (Typ.)	30~320VDC		60~360VDC		120~450VDC	90~450VDC
Maximum Solar Charge Current	80A	100A	100A	100A	120A	120A	150A	150A
Maximum AC Charge Current	80A	60A	60A	100A	100A	120A	150A	150A
Maximum Charge Current	80A	100A	100A	100A	120A	120A	150A	150A
MECHANICAL SPECIFICATIONS
Machine Dimension (WHD)(mm)	290367111	318454122.5				425527145
Package Dimension (WHD)(mm)	446187394	544.5200410				631.5*257548
N.W(kg)	6.0	7.8	8.0	9.0	10.0	17.9	18.0	18.0
G.W (kg)	7.2	9.3	9.5	10.2	11.6	20.5	20.6	20.6
OTHER
Humidity	5%to 95%Relative humidity(Non-condensing)
Operating Temperature	-10℃~50℃
Storage Temperature	-15℃~60℃

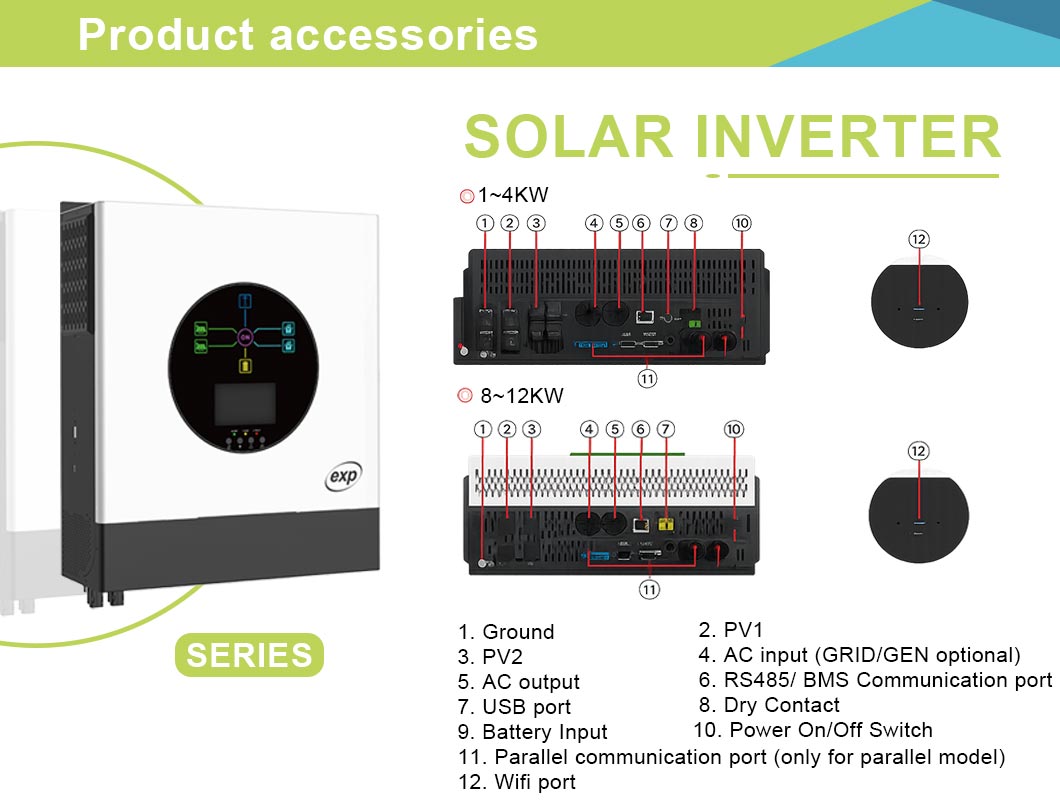

Communication Interface	USB/WIFI/RS-485/CAN
Warranty	2 year
Anti-dust Kit	none	yes	yes	yes	yes	yes	yes	yes
CERTIFICATION &STANDARDS
CE
