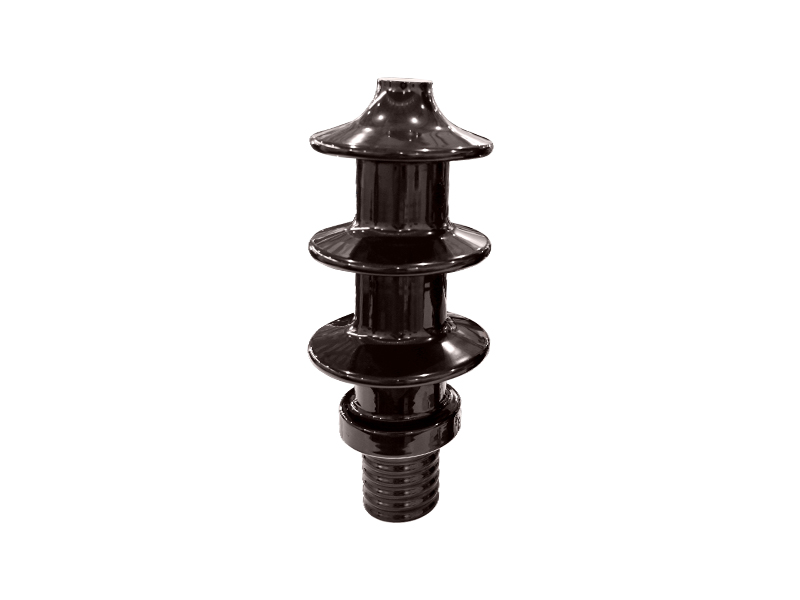

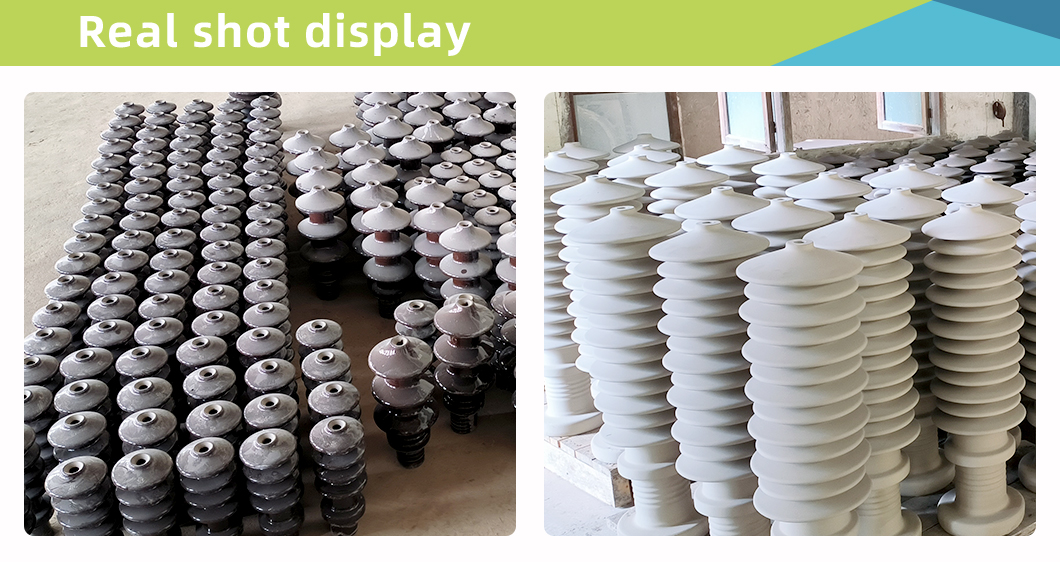

DIN Transformer High Voltage Porcelain Bushing
If you are interested in our products or need technical supports and service,please contact us as bellowing:
- Details
DIN and EN standard
1KV/250A-630A 3KV/250A-630A 1KV/1000A-2000A-3150A
3KV/1000A-2000A-3150A 3KV/6500A 12KV-24KV-36KV/250A
1KV/250A-630A 3KV/250A-630A 1KV/1000A-2000A-3150A
3KV/1000A-2000A-3150A 3KV/6500A 12KV-24KV-36KV/250A
12KV-24KV-36KV/630A 12KV-24KV-36KV/1000A-2000A-3150A
| Model | Dimension(mm) | Tank hole size (mm) | Porcelain shed number | |||||||||
| H | h2 | h3 | Md | d1 | d2 | d3 | d4 | E | C | do | ||
| DIN-12/250 | 367 | 250 | 65 | M12×1.75 | 140 | 12 | 74 | 51 | 146 | 70 | 78 | 2 |
| DIN-12/630 | 400 | 246 | 65 | M20×2.5 | 150 | 20 | 88 | 60 | 174 | 70 | 92 | 2 |
| DIN-24/250 | 457 | 340 | 80 | M12×1.75 | 145 | 12 | 74 | 51 | 146 | 100 | 78 | 3 |
| DIN-24/630 | 490 | 336 | 80 | M20×2.5 | 160 | 20 | 88 | 60 | 174 | 100 | 92 | 3 |
| DIN-36/250 | 557 | 440 | 80 | M12×1.75 | 155 | 12 | 74 | 51 | 146 | 200 | 78 | 4 |
| DIN-36/630 | 615 | 461 | 100 | M20×2.5 | 180 | 20 | 88 | 60 | 174 | 200 | 92 | 4 |
