Asbestos-free Synthetic Fiber Rubber Compressed Sheet and Seals
If you are interested in our products or need technical supports and service,please contact us as bellowing:
- Details

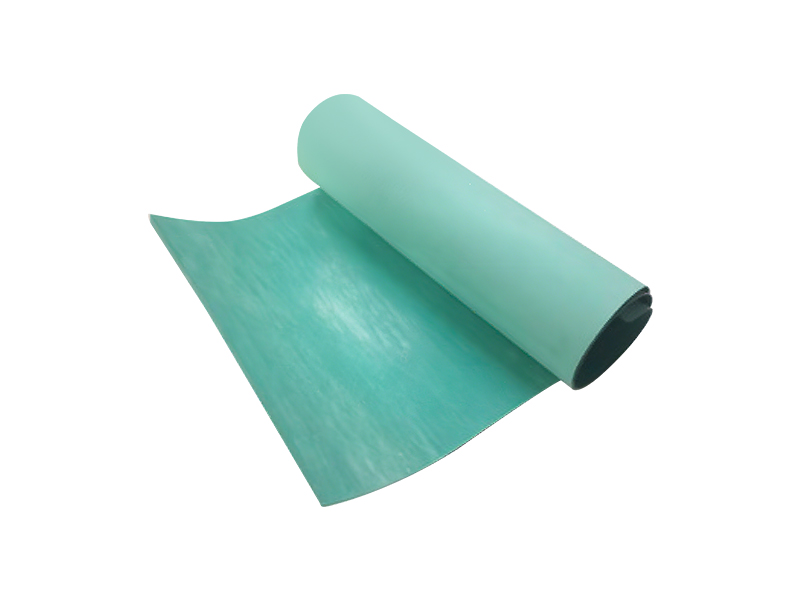

High quality gasket material sheets, composed of aramid, glass, in organic, or carbon fibers, NBR rubber as a binder and different fillers. Fiber gasket sheets with different chemical,thermal and mechanical resistance are made to endure at different loadings, even the most demanding conditions.
Features:
High resistance to seating stress.
Low creep relaxation.
Wide range of operating temperatures and pressures.
Resistance to an extensive range of chemical products.
| Sealpilot NO. | Pressure | Temperature | Practical conditions |
| PNG8100 | 3MPa | Max 260℃ | Air, water, petroleum oil, neutral saline solution for low pressure interface gaskets |
| PNG8108 | 8MPa | Max 300℃ | Heat exchanger tubes, valves, water, fuel, coolant and air |
| PNG8208 | 10MPa | Max 400℃ | High-temperature steam machinery, compressed air |
| Size(mm) | Thickness | 0.4、0.5、0.8、1.0、1.2、1.5、2.0、3.0、4.0、5.0-10.0 （Or produce according to requirements） | |
| Width | 1500*1500、1500*3000、1500*4500、1270*1270 | ||
