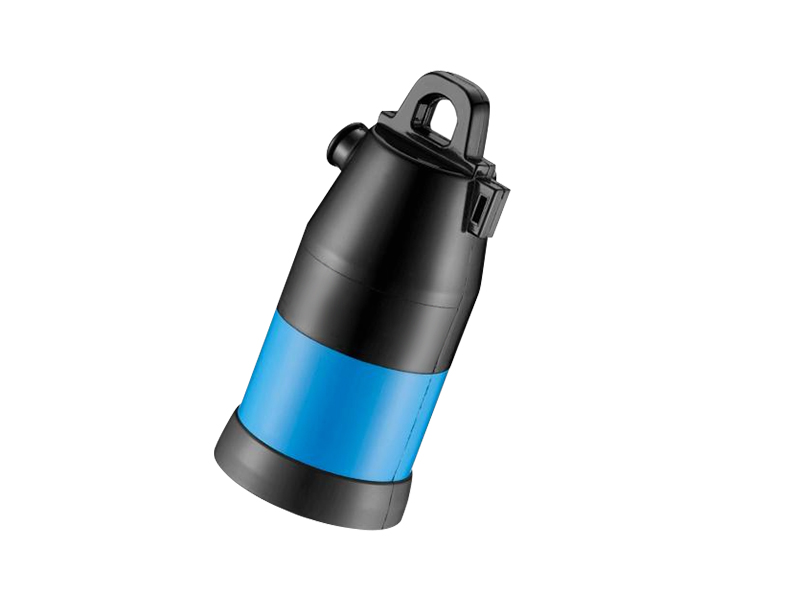

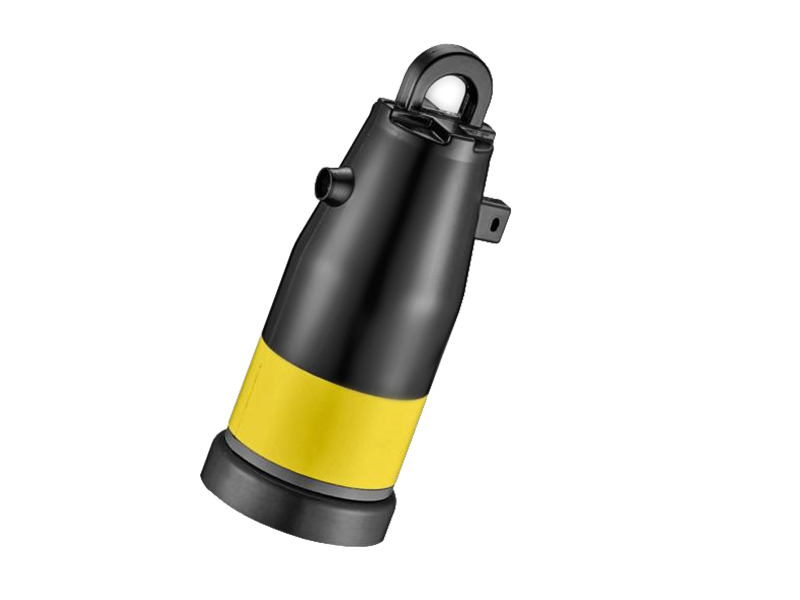

15-35kV 200-600A Loadbreak Insulation Protective Cap for Cable Connector Insulation
If you are interested in our products or need technical supports and service,please contact us as bellowing:
- Details

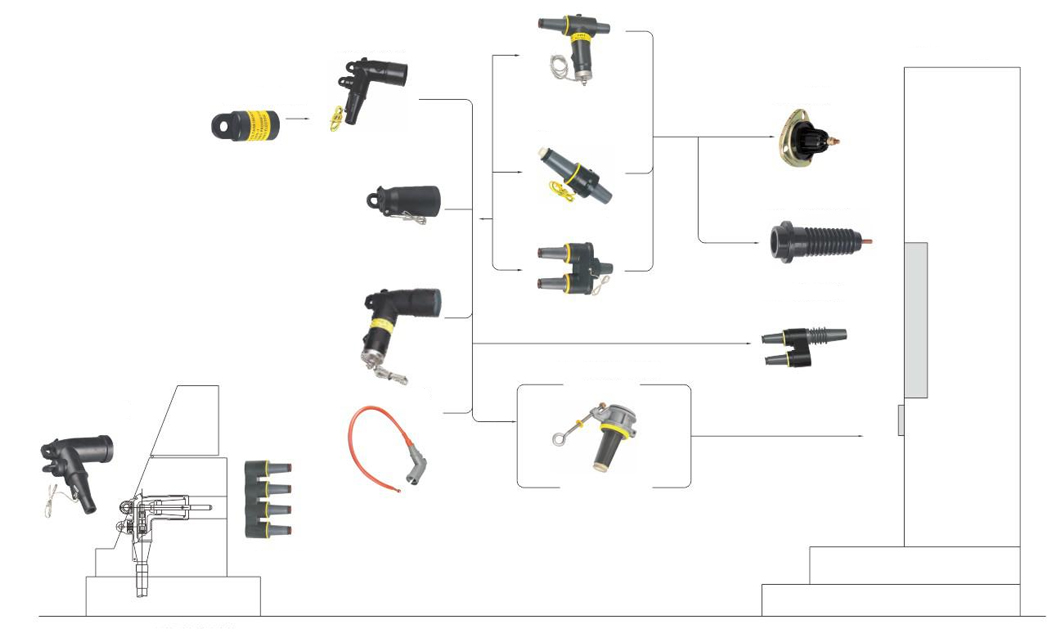

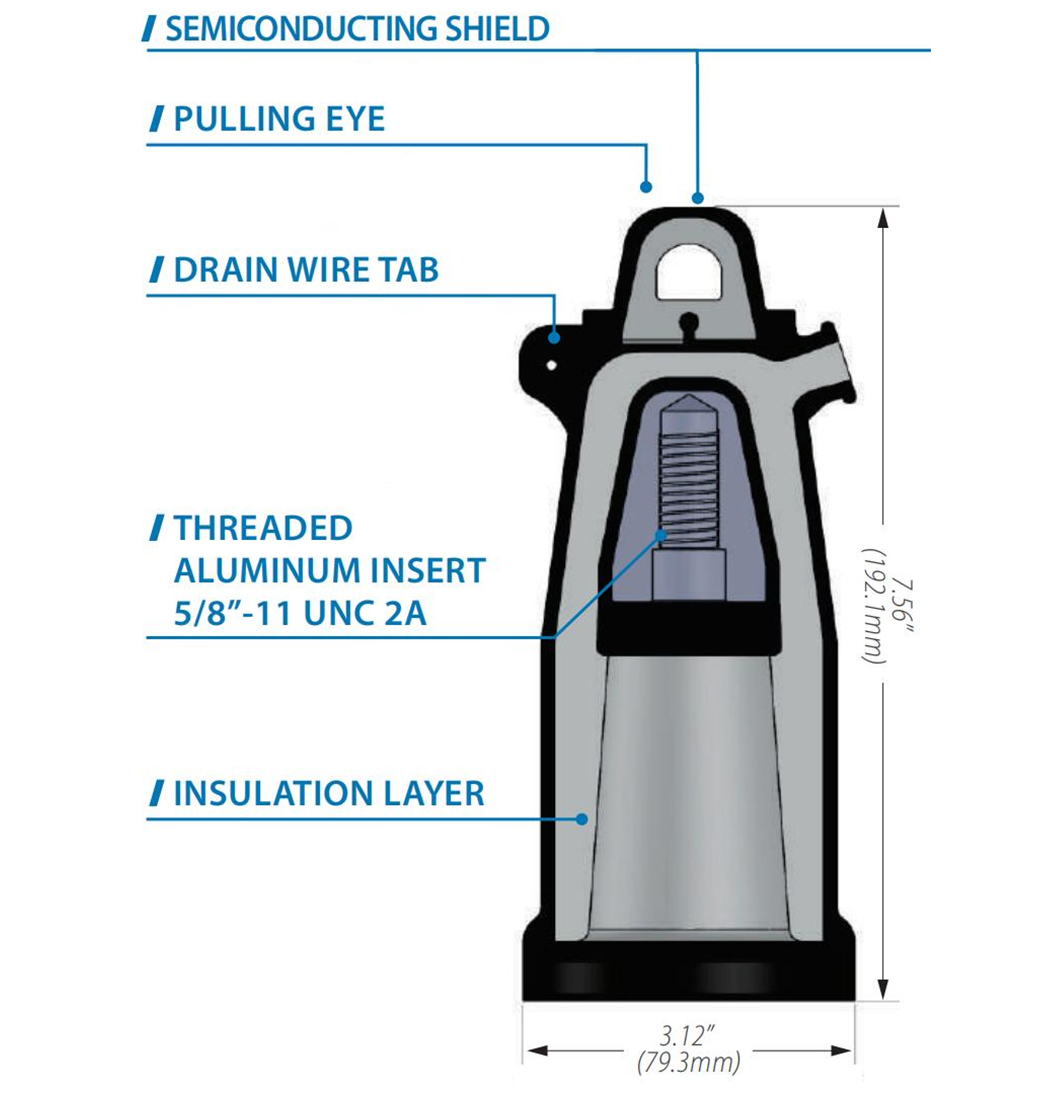

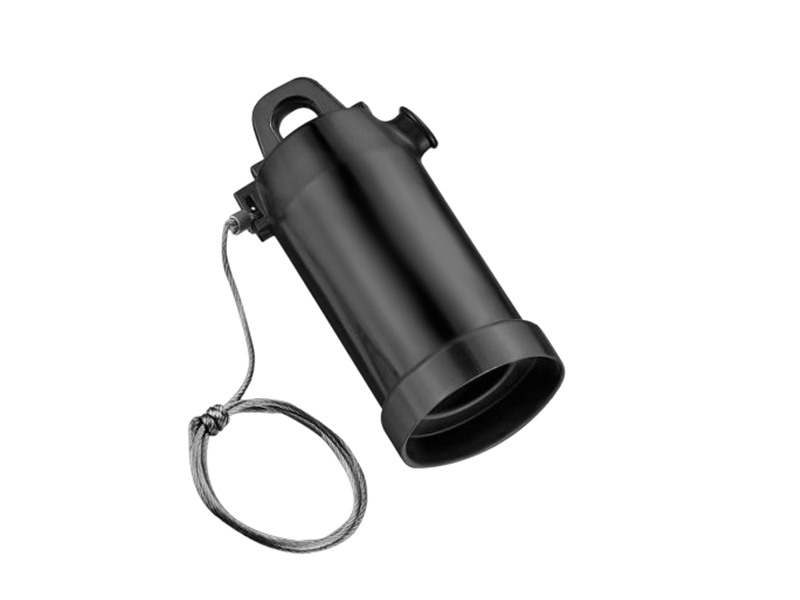

This Insulation Protective Cap is an accessory product to other 15kV 200A products with loadbreak interfaces (bushing inserts, loadbreak junctions, feed thru inserts, etc.).It is designed to physically seal and electrically insulate loadbreak bushing interfaces. When installed on a loadbreak bushing interface, and properly grounded using the attached drain wire, the Loadbreak Insulation Protective Cap provides a submersible, fully shielded insulated cap for energized bushings. The Loadbreak Insulation Protective Cap can be used for temporary or permanent applications.
| Rated Voltage(Phase-to-Phase) | 15kV | 25kV | 35kV |
| Withstand Voltage (50/60Hz) | 34kV/1min. | 40kV/1min. | 50kV/1min. |
| BIL and Full Wave Crest | 95kV | 125kV | 150kV |
| Minimum Corona Voltage Level | 11kV | 19kV | 26kV |
