IEEE 386 Cable Accessories 15kV-35kV 200A LoadBreak Elbow Connector for Pad Mounted Transformer
If you are interested in our products or need technical supports and service,please contact us as bellowing:
- Details

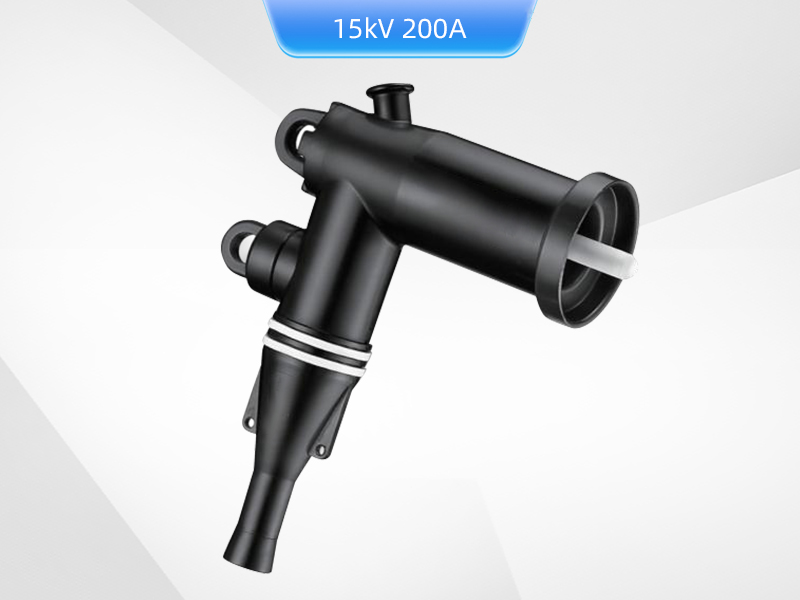

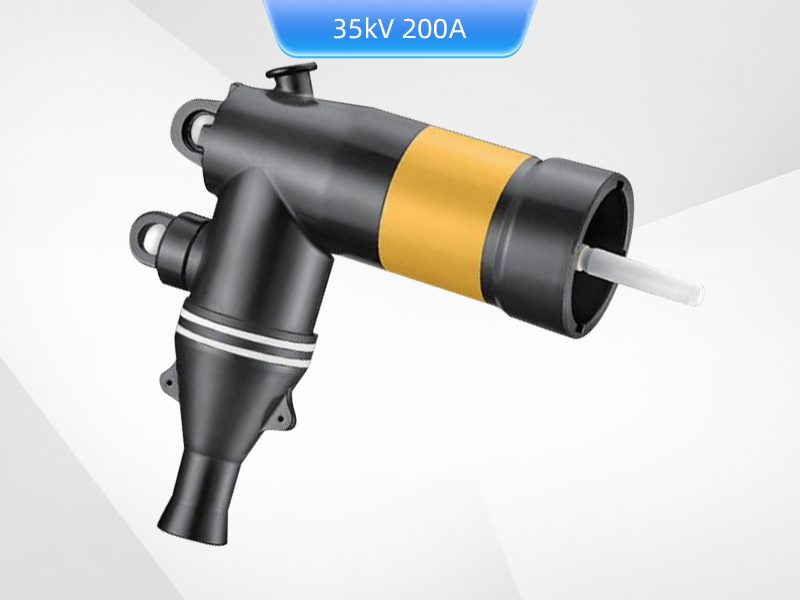

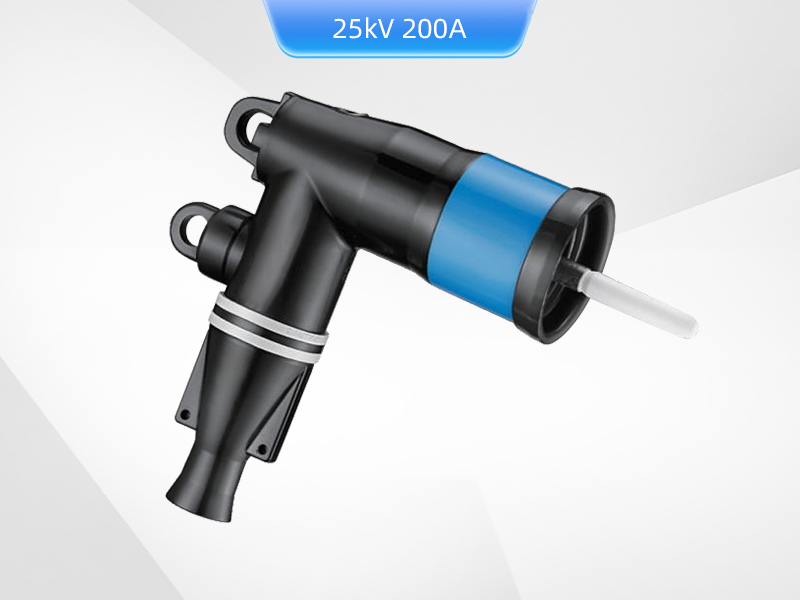

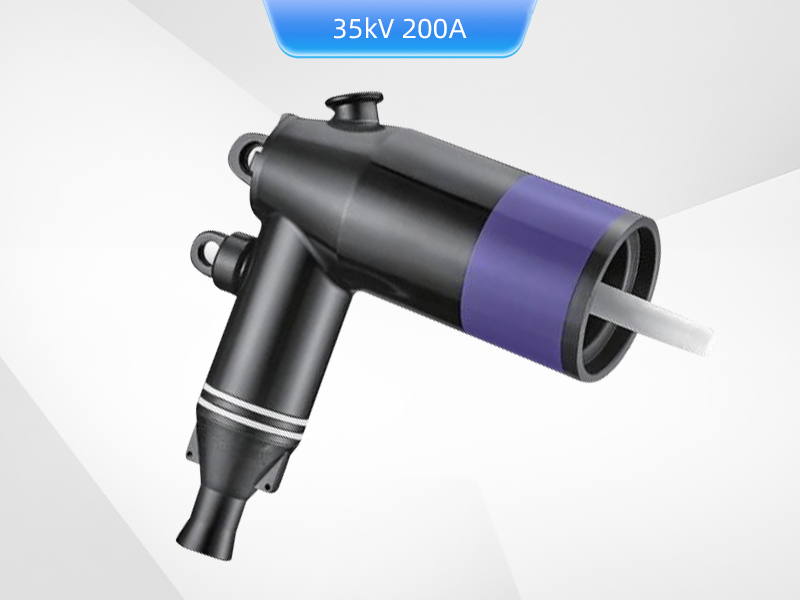

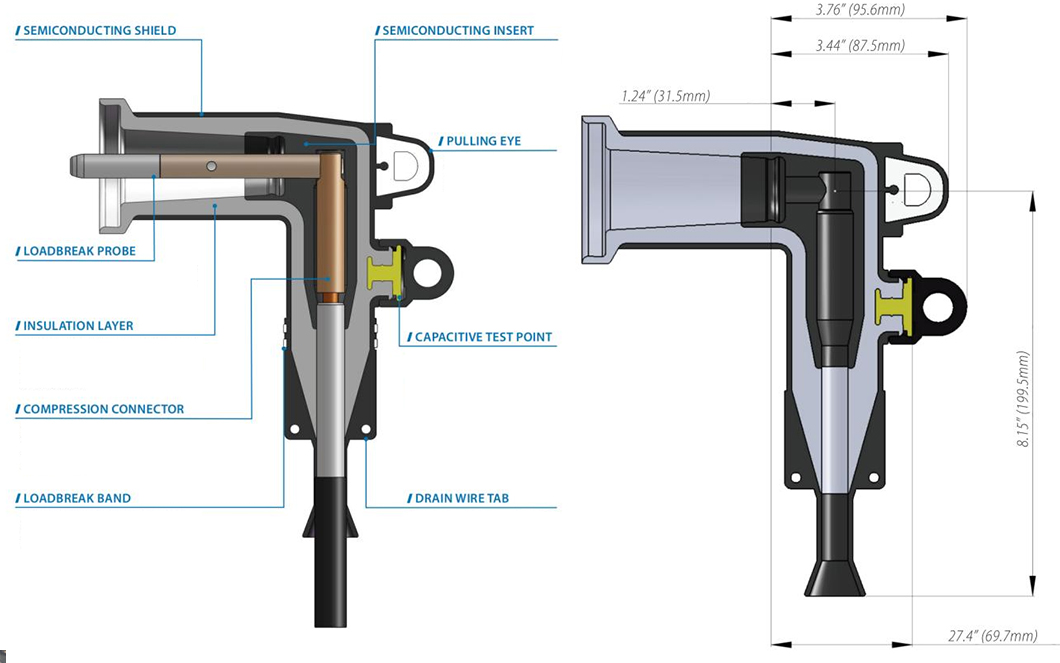

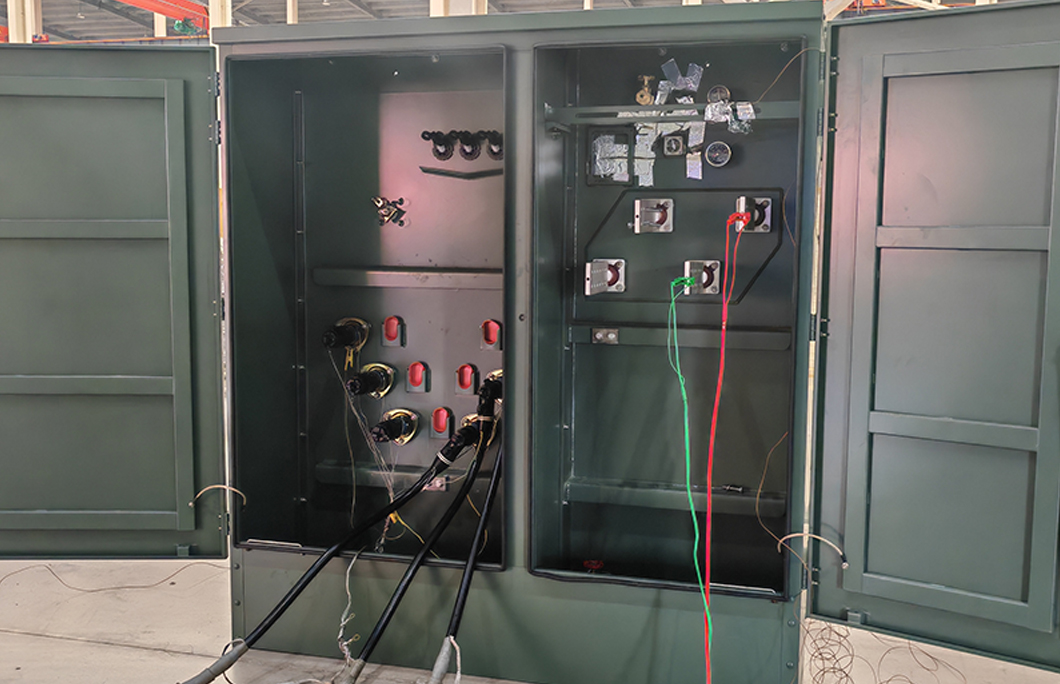

The loadbreak elbow is a fully shielded and insulated termination connecting underground cable to transformers,switchgear,and other apparatus equipped with loadbreak bushings,junctions,or other loadbreak connectors. It meets allthe requirements of IEEE Standard 386(small interface,meet figure 7B in IEEE Std 386-2016).
The loadbreak elbow is molded using high quality peroxide-cured insulating and semi-conducting EPDM rubber,itinclude a stainless steel pulling eye. An optional capacitive test point is available.Included with the elbow kit is a bi-metalor copper compression connector, and a tin plated copper probe with an arc quenching tip.
| Rated Voltage(Phase-to-Phase) | 15kV | 25kV | 35kV |
| Withstand Voltage(50/60Hz) | 34kV/1min. | 34kV/1min. | 50kV/1min. |
| BIL and Full Wave Crest | 95kV | 125kV | 150kV |
| Minimum Corona Voltage Level | 11kV | 19kV | 26kV |
| Continuous Current | 200A | 200A | 200A |
