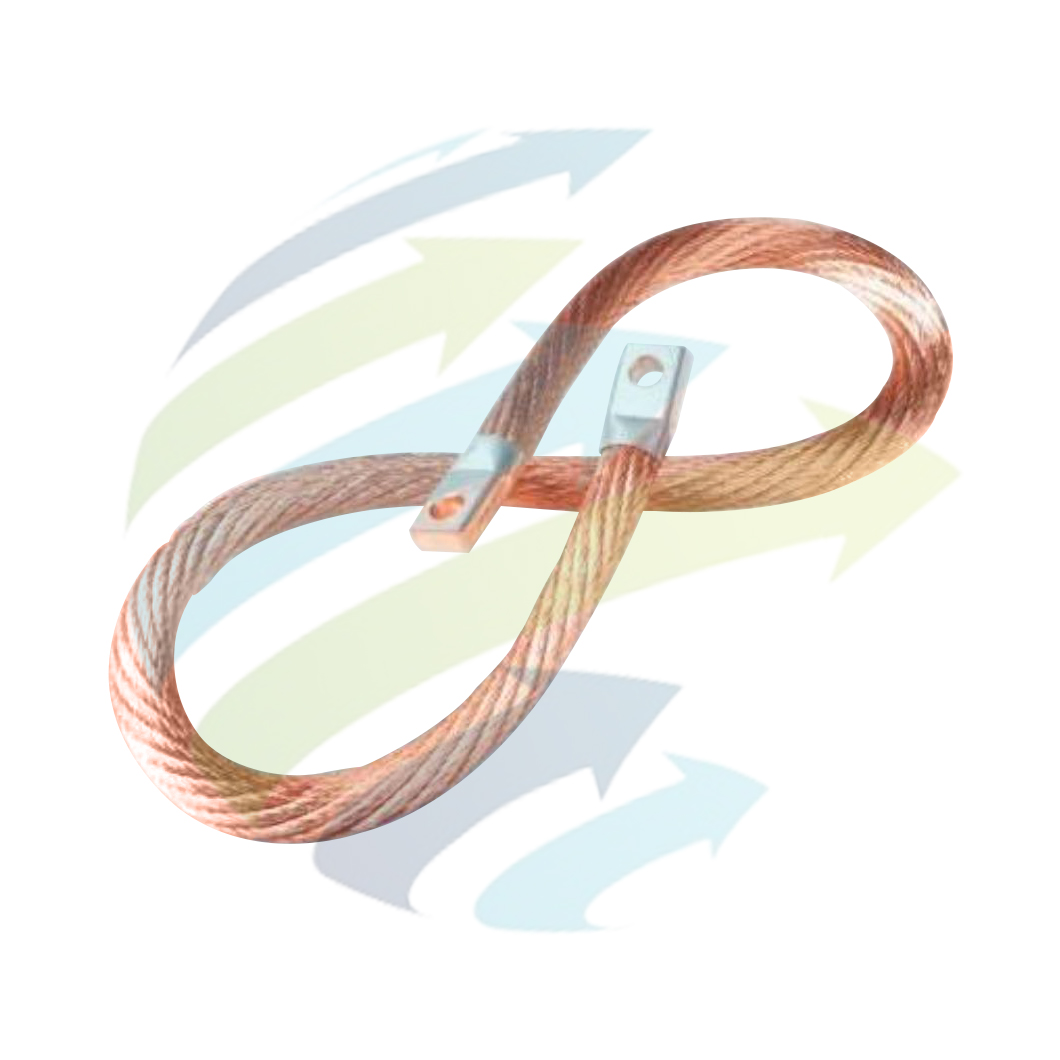

Transformer Copper Stranded Connector With Ferrules
If you are interested in our products or need technical supports and service,please contact us as bellowing:
- Details
Structure and Applications:
BGTJR(X) soft copper stranded wire can be used in electrical installations, switchgear, electric furnaces, and batteries, providing flexible electrical conductivity and grounding.
BGTJR(X) soft copper stranded wire is constructed from T2 copper wire stranded in accordance with the National Standard of the People's Republic of China, GB/T12970.2-2009.
Technical Data:
Material: T2 copper wire, steel content ≥ 99.95%.
Surface Treatment: Bare copper, tinned.
Cross-sectional area: 1.5mm²-2000mm².
BGTJR(X) soft copper stranded wire can be used in electrical installations, switchgear, electric furnaces, and batteries, providing flexible electrical conductivity and grounding.
BGTJR(X) soft copper stranded wire is constructed from T2 copper wire stranded in accordance with the National Standard of the People's Republic of China, GB/T12970.2-2009.
Technical Data:
Material: T2 copper wire, steel content ≥ 99.95%.
Surface Treatment: Bare copper, tinned.
Cross-sectional area: 1.5mm²-2000mm².
Packaging: Coiled, reeled, or on a wooden reel.
| Specification | Structure（For example :46 is the number of pieces per share,5 is the number of shares, and 0.15 is the specification of a single piece） | Outer diameter（mm） | Weight (kg/100m） | Packaging | Corresponding current A |
| 4mm² | 46*5/0.15 | 3.45 | 4 | 100M | 40 |
| 6mm² | 46*6+67/0.15 | 3.5 | 6 | 100M | 60 |
| 8mm² | 67*7/0.15 | 4.75 | 8 | 100M | 64 |
| 10mm² | 67*9/0.15 | 5.05 | 10 | 100M | 80 |
 16mm² | 45*3*7/0.15 | 6 | 16 | 100M | 110 |
| 20mm² | 67*3*5+67*2/0.15 | 6.9 | 20 | 100M | 140 |
| 25mm² | Bare copper ：67*3*7/0.15 Tin-plated copper：50*8*3+46*5/0.15 | 7.4 | 25 | 100M | 150 |
| 35mm² | Bare copper ：67*3*10/0.15 Tin-plated copper ：50*3*13/0.15 | 8.7 | 35 | 100M | 190 |
| 50mm² | Bare copper ：67*3*14/0.15 Tin-plated copper ：50*3*19/0.15 | 10.3 | 50 | 100M | 230 |
| 70mm² | 67*3*20/0.15 | 12.2 | 70 | 100M | 280 |
| 95mm² | 67*4*20/0.15 | 14 | 95 | 50m | 350 |
| 100mm² | 70*4*20/0.15 | 14 | 100 | 50m | 350 |
| 120mm² | 67*5*20/0.15 | 16.5 | 120 | 50m | 390 |
| 150mm² | 67*9*14/0.15 | 18.1 | 150 | 30M | 450 |
| 185mm² | 67*9*18/0.15 | 20 | 185 | Not fixed | 560 |
| 240mm² | 67*10*20/0.15 | 24 | 240 | Not fixed | 720 |
