OEM Custom AS/NZS Standard Porcelain Transformer Bushing for Oil Immersed Transformer

If you are interested in our products or need technical supports and service,please contact us as bellowing:
This is an error tips
This is an error tips
This is an error tips
This is an error tips
This is an error tips
  • Details

Our AS/NZS standard transformer bushings are designed for oil immersed distribution and power transformers for the Australian market. With reliable insulation performance, strong mechanical strength, good sealing, and stable quality, the bushings can be customized according to different voltage classes, dimensions, and installation requirements. OEM and technical drawing support are available.

1. Designed for Australian Market
Complying with AS/NZS standard requirements, suitable for transformer projects in Australia and New Zealand.

2. Reliable Insulation Performance
High-quality porcelain body with stable electrical insulation performance and long service life.

3. Strong Sealing and Mechanical Strength
Excellent sealing structure helps prevent oil leakage and ensures safe operation in outdoor conditions.

4. Customizable Specifications
Voltage class, creepage distance, terminal size, mounting dimensions, and drawing details can be customized.

5. OEM Manufacturing Support

Professional factory supply with stable production capacity, technical support, and export service.

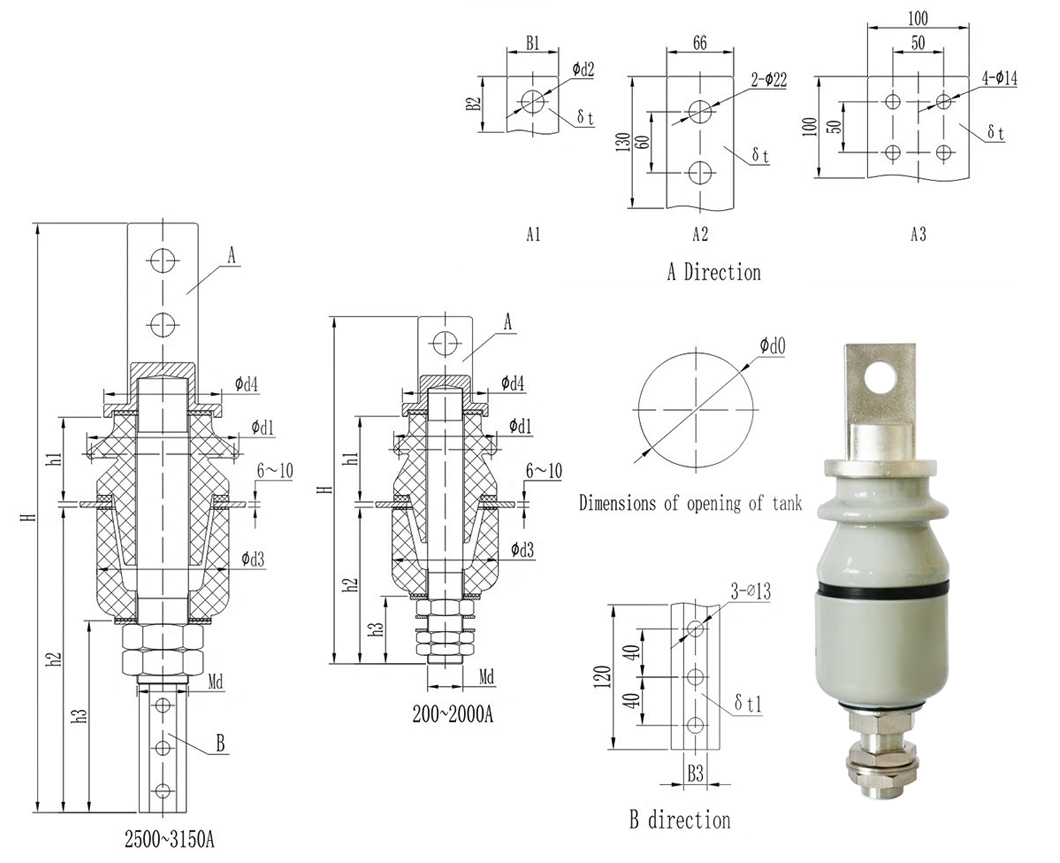

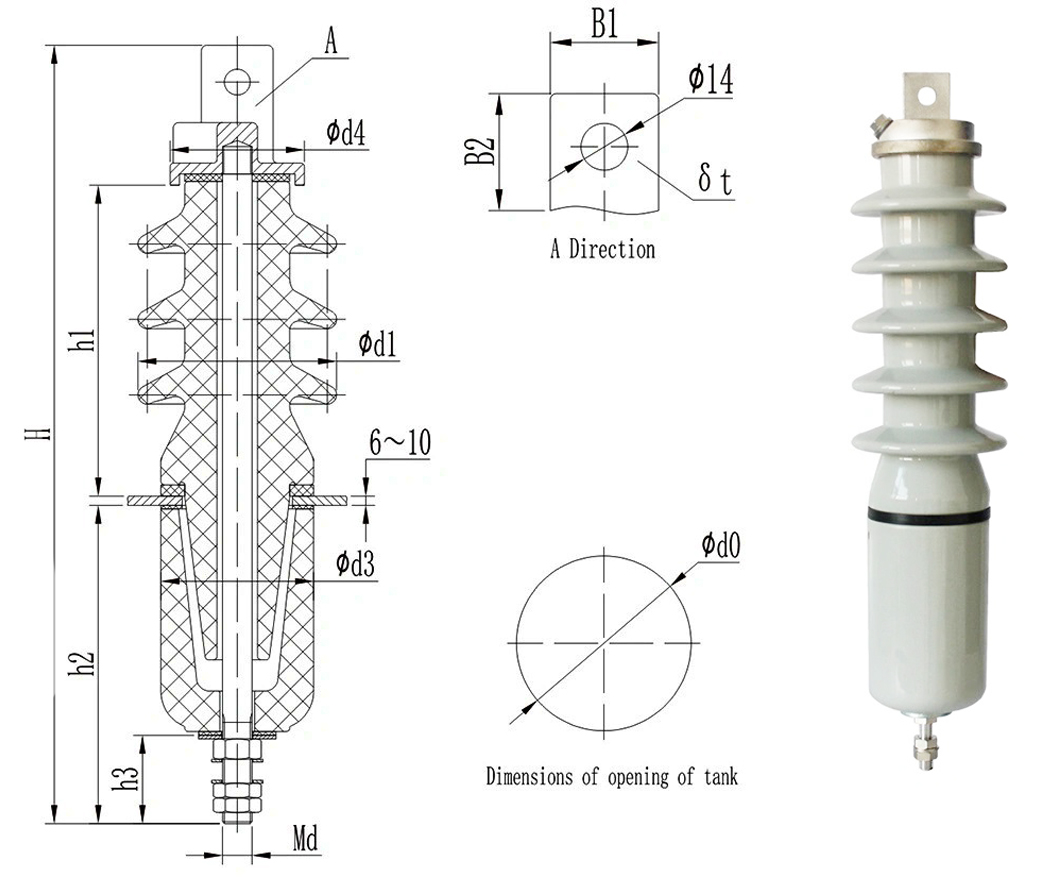

ModelDimensionsweight
(kg)

Hh2h3Mdd1d2d3d4B1×B2tB3t1
AS-1/200205 95 40 M10×1.551 φ1445 39 22×256 --0.5
AS-1/315205 95 40 M12×1.7551 φ1445 39 22×256 --0.6
AS-3/315274 119 45 M12×1.7576 φ1470 58 38×458 --0.8
AS-3/500274 119 45 M16×276 φ1470 58 38×458 --1
AS-3/630324 146 61 M20×2.596 φ1499 80 51×5510 --1.5
AS-3/1000324 146 63 M24×1.596 φ1499 80 51×5516 --1.6
AS-3/1250324 146 63 M33×1.596 φ2299 80 51×5516 --1.8
AS-3/2000416 184 78 M36×2127 4×φ14108 90 100×10014 --2.5
AS-3/2500545 280 174 M45×2142 2×φ22123 110 66×13016 20 35 3.5
AS-3/3150550 285 179 M48×2142 2×φ22123 110 66×13016 26 36 4

ModelDimensionsweight
(kg)
Hh2h3Mdd1d2d3d4B1×B2tB3t1
AS-1/200205 95 40 M10×1.551 φ1445 39 22×256 --0.5
AS-1/315205 95 40 M12×1.7551 φ1445 39 22×256 --0.6
AS-3/315274 119 45 M12×1.7576 φ1470 58 38×458 --0.8
AS-3/500274 119 45 M16×276 φ1470 58 38×458 --1
AS-3/630324 146 61 M20×2.596 φ1499 80 51×5510 --1.5
AS-3/1000324 146 63 M24×1.596 φ1499 80 51×5516 --1.6
AS-3/1250324 146 63 M33×1.596 φ2299 80 51×5516 --1.8
AS-3/2000416 184 78 M36×2127 4×φ14108 90 100×10014 --2.5
AS-3/2500545 280 174 M45×2142 2×φ22123 110 66×13016 20 35 3.5
AS-3/3150550 285 179 M48×2142 2×φ22123 110 66×13016 26 36 4
