Details

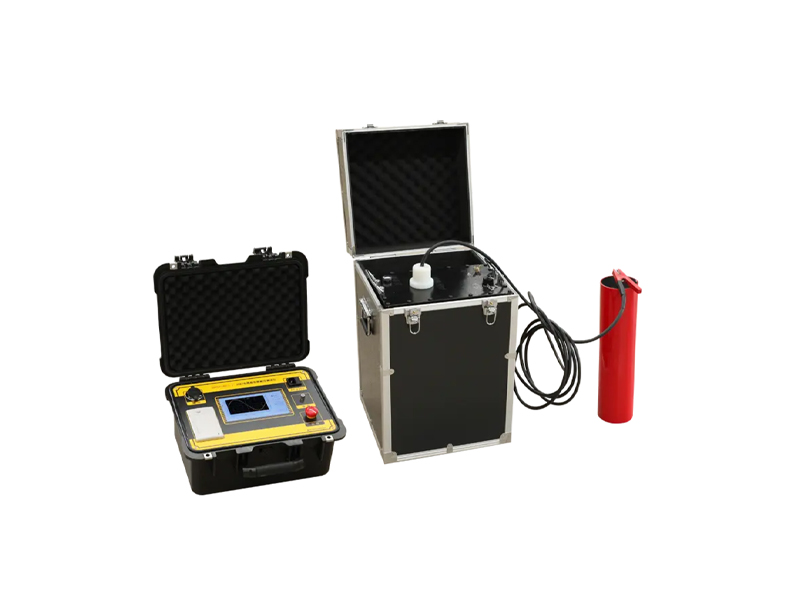

Very Low Frequency AC Hipot Test Set is the direct method to identify the insulation strength of XLPE power cables. It uses 0.1Hz very lo w frequency technology, the capacity is only 1/500 of power frequency. With small size and light weight, it is suitable to make withstand voltage test for large capacitance equipment such as power cables,power capacitors,large and medium generators/motors.

Function:
1. Over-voltage protection function.
2. Over-current protection function.
3. Built-in protective resistor.
4. Sampling from high voltage side, data is morereal
5. With high and low voltage double protection ,protective action time is less than 20ms.

It realizes the fully automatic voltage boost, step-down, measurement and protection as well as the manual intervention in the process of automatic voltage boost.

Closed-loop negative feedback circuit is adopted. No capacity rising during outputting.

Specification	GDVLF-30kV	GDVLF-40kV	GDVLF-50kV	GDVLF-80kV
Rated Output Voltage	30kV(Peak value)	40kV(Peak value)	50kV(Peak value)	80kV(Peak value)
Application	Power cables and generators at 10kV and below	Power cables and generators at 13.8kV and below	Power cables and generators at 15.75kV and below	Power cables and generators at 35kV and below
Load capacity	0.1Hz, ≤ 1.1μF	0.1Hz, ≤ 1.1μF	0.1Hz, ≤ 0.8μF	0.1Hz, ≤ 0.5μF
	0.05Hz, ≤ 2.2μF	0.05Hz, ≤ 2.2μF	0.05Hz, ≤1.6μF	0.05Hz, ≤ 1μF
	0.02Hz, ≤ 5.5μF	0.02Hz, ≤ 5.5μF	0.02Hz, ≤4μF	0.02Hz, ≤ 2.5μF
Output frequency	0.1Hz 、 0.05Hz 、 0.02Hz
Weight	Control unit: 5kg	Control unit: 5kg	Control unit: 5kg	Control unit: 5kg
	Booster: 25kg	Booster: 35kg	Booster: 50kg	Booster I: 25kg
	-	-	-	Booster II: 50kg

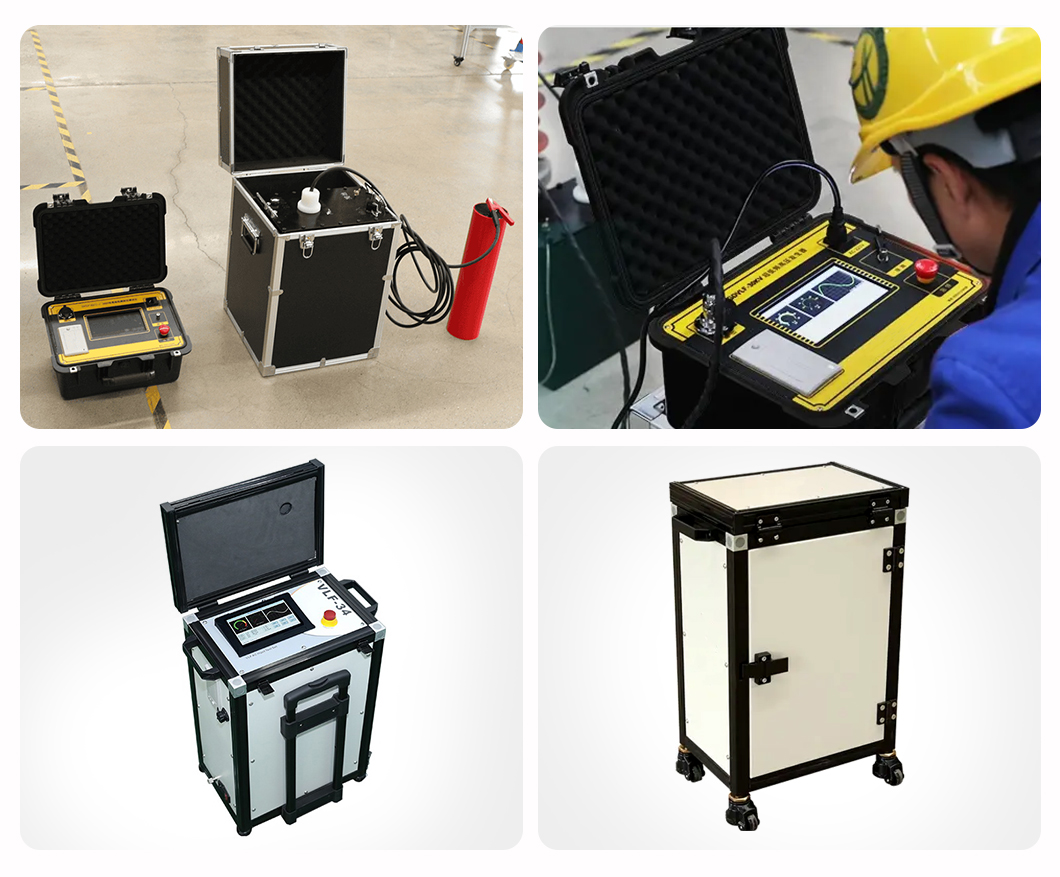

xq_04
