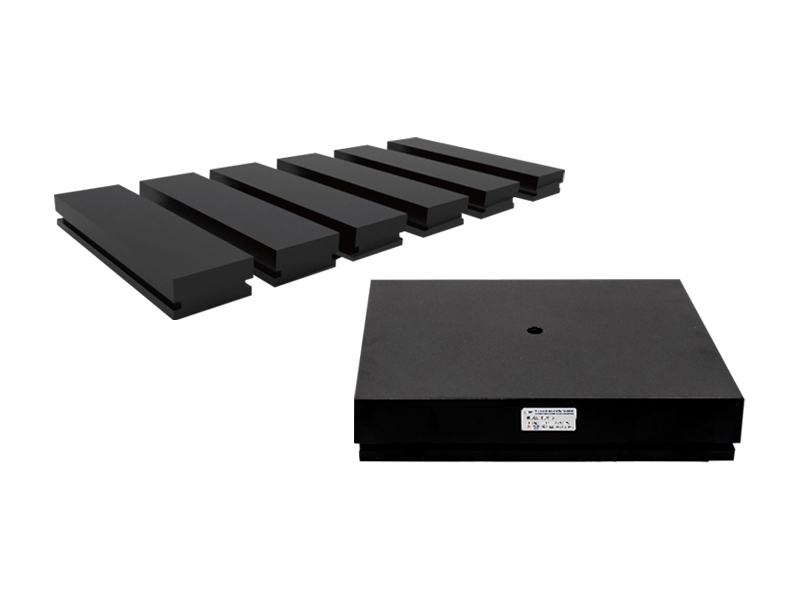

BK-MT Type Matrix Anti Vibration Mount
If you are interested in our products or need technical supports and service,please contact us as bellowing:
- Details
Characteristics2.After heat treatment and stress elimination, the springs have good fatigue resistance.
1.The surface of the spring is treated with Ed and paint, and the rust resistance is excellent. It has passed the salt spray test of ASTM B-117 and 8886.
3.The spring diameter is greater than 0.8 times of the height of the rated disturbance,and the maximum pressure under the spring compression is greater than 50% of the rated disturbance.
4.Internal use of seismic anti-vibration device, high safety performance
5.The internal damping mechanism is designed to effectively avoid resonance phenomenon.
6.All specifications are shock-resistant and corrosion-resistant materials of the shell closed combination.
4.Internal use of seismic anti-vibration device, high safety performance
5.The internal damping mechanism is designed to effectively avoid resonance phenomenon.
6.All specifications are shock-resistant and corrosion-resistant materials of the shell closed combination.

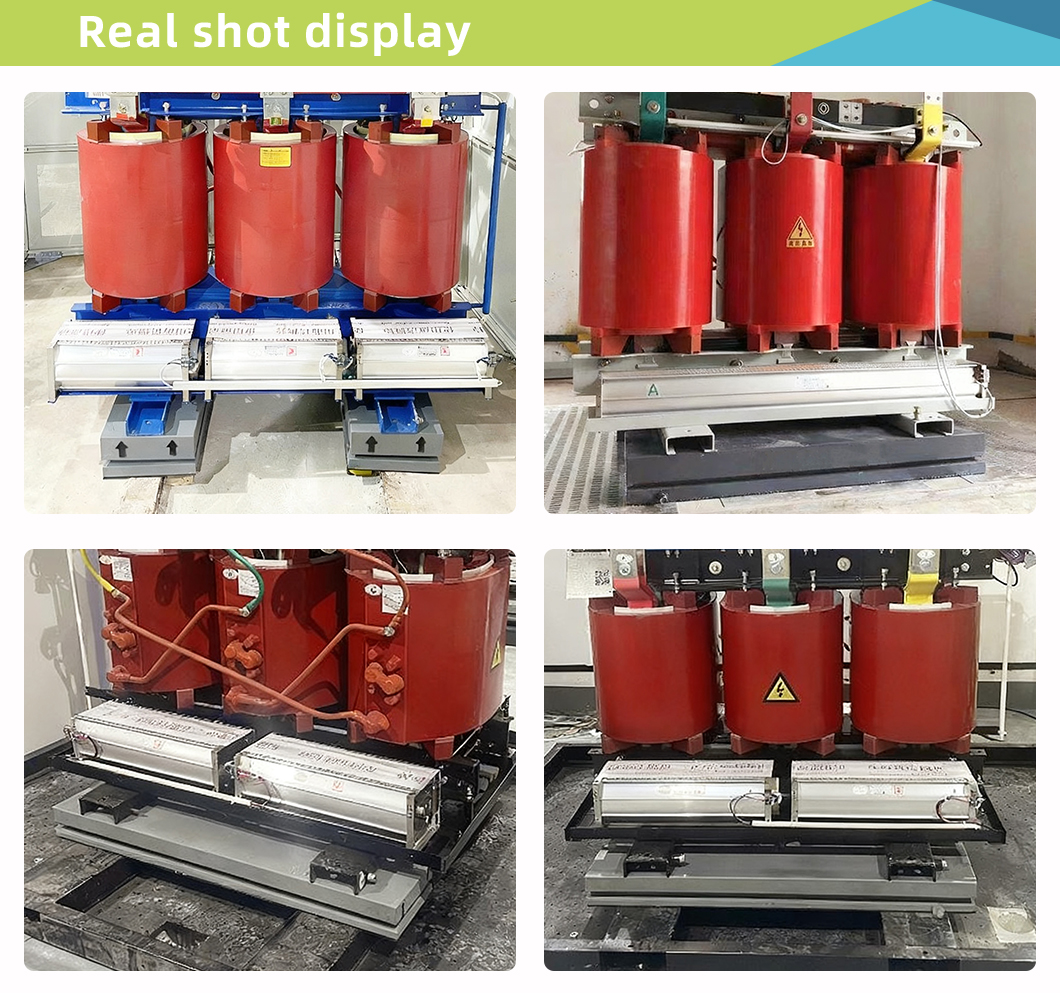

7.Professional vibration reduction device for transformer.
| Tpye | Vertical stiffness | Load range | Size mm | Applicable transformer | ||
| A | B | H | ||||
| BK-MT-93H800 | 32 | 720-880 | 900 | 300 | 150 | 315KVA |
| BK-MT-93H1000 | 40 | 920-1080 | 900 | 300 | 150 | 400KVA |
| BK-MT-123H1200 | 48 | 1100-1280 | 1200 | 300 | 150 | 500KVA |
| BK-MT-123H1400 | 56 | 1320-1480 | 1200 | 300 | 150 | 630KVA |
| BK-MT-123H1600 | 64 | 1520-1680 | 1200 | 300 | 150 | 800KVA |
| BK-MT-123H2000 | 80 | 1920-2080 | 1200 | 300 | 150 | 1000KVA |
| BK-MT-123H2400 | 96 | 2320-2480 | 1200 | 300 | 150 | 1250KVA |
| BK-MT-123H2800 | 112 | 2720-2880 | 1200 | 300 | 150 | 1600KVA |
| BK-MT-153H3200 | 128 | 3120-3280 | 1200 | 300 | 150 | 2000KVA |
| BK-MT-153H3600 | 144 | 3520-3680 | 1200 | 300 | 150 | 2500KVA |
