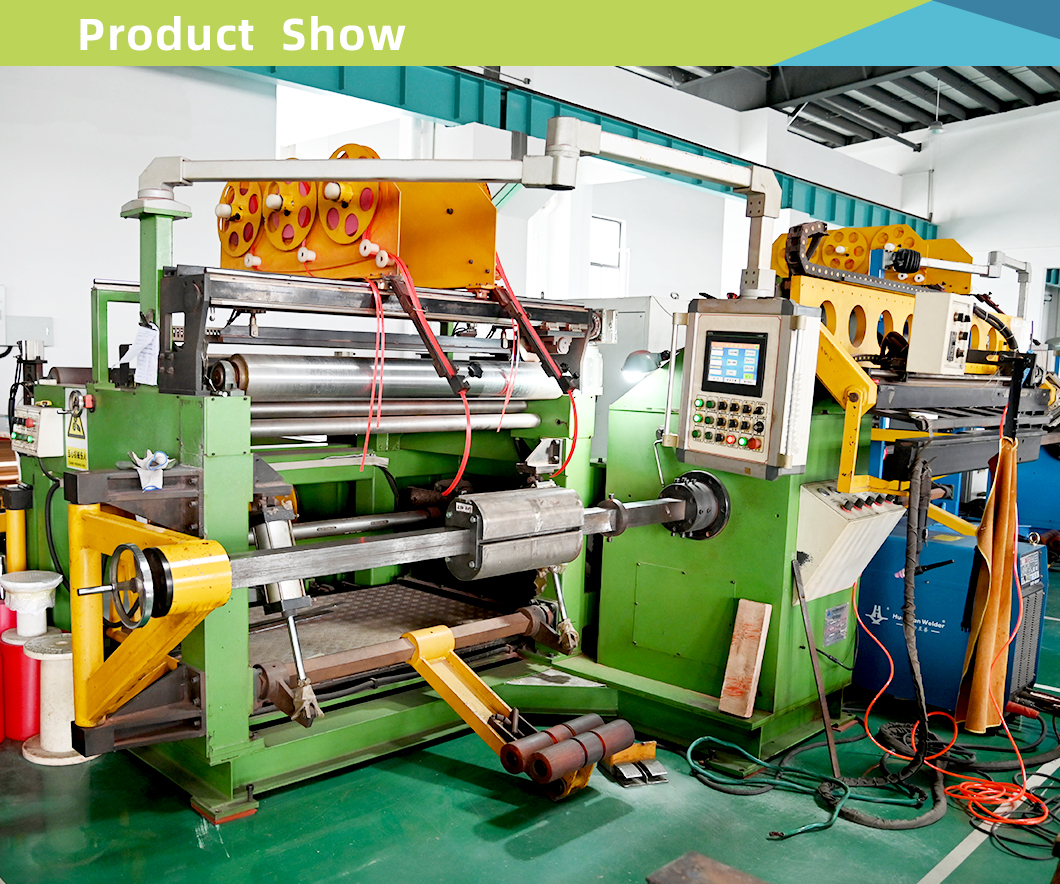

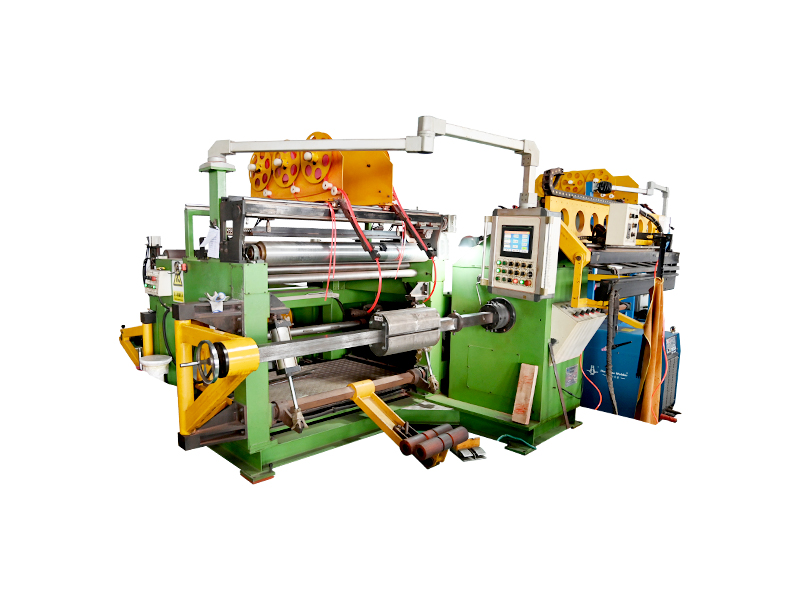

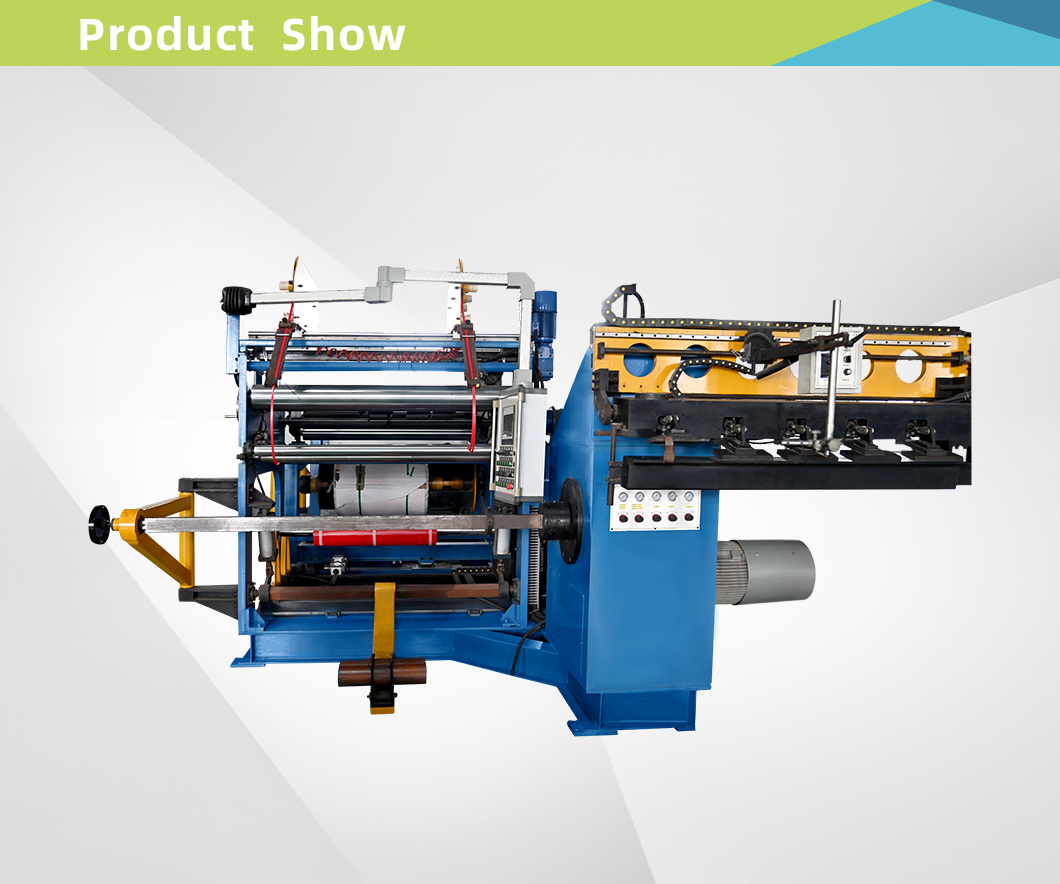

Transformer Low Voltage Foil Winding Machine
If you are interested in our products or need technical supports and service,please contact us as bellowing:
- Details
I. Equipment usage
CNC Double Layer Foil Winding Machine, special production equipment mainly used for
winding low voltage foil wound coils for dry type and oil transformer.
II. Equipment Composition:
1. Unwinding guiding device 2 sets
2. Feeding device 2 sets
3. Deburring device 2 sets
4.Dust removal device 2 sets
5. Deskewing sensing device 2 sets
6. Scissors device 2 sets
7. Layer insulating device 2 sets
8. Layer insulating cutting device 1 set
9. End insulating device 1 set
10. Welding device 1 set
11. Winding device 1 set
12. Coiling pressurising Winding device 1 set
2. Feeding device 2 sets
3. Deburring device 2 sets
4.Dust removal device 2 sets
5. Deskewing sensing device 2 sets
6. Scissors device 2 sets
7. Layer insulating device 2 sets
8. Layer insulating cutting device 1 set
9. End insulating device 1 set
10. Welding device 1 set
11. Winding device 1 set
12. Coiling pressurising Winding device 1 set
13.Electric control system 1 set.
| SN | Name | Unit | Quantity | Remarks |
| 1 | Body of foil winder machine | (Piece) | 1 | Main component of equipment |
| 2 | Welding frame head, main unit | (Piece) | 1 | Main component of equipment |
| 3 | Uncolier | (Piece) | 2 | Main component of equipment |
| 4 | Layer insulating trolley | (Nos) | 1 | Main component of equipment |
| 5 | Hydraulic coil cutter | (Nos) | 1 | Assistive tool |
| 6 | Argon welder | (Set) | 1 | Dedicated device |
| 7 | Cooling water tank, water pump | (Set) | 1 | Dedicated device |
| 8 | square shaft (with fixture) | (Nos) | 1 | Dedicated accessory |
| 9 | Foil shelf connector | (Piece) | 2 | Dedicated accessory |
| 10 | Foil shelf wrench | (Piece) | 1 | Dedicated tool |
| 11 | Winding machine instructions | (Nos) | 1 | Delivery attached documentation |
| 12 | Argon welder materials | (Nos) | 1 | Delivery attached documentation |
| 13 | Internal hexagonal wrench | (Piece) | 4 | Tool (placed in the water tank) |
| 14 | Vise grip pliers | (Piece) | 2 | Tool (placed in the water tank) |
| 15 | Roller shear blade | (Piece) | 2 | Spare parts (placed in the water tank) |
