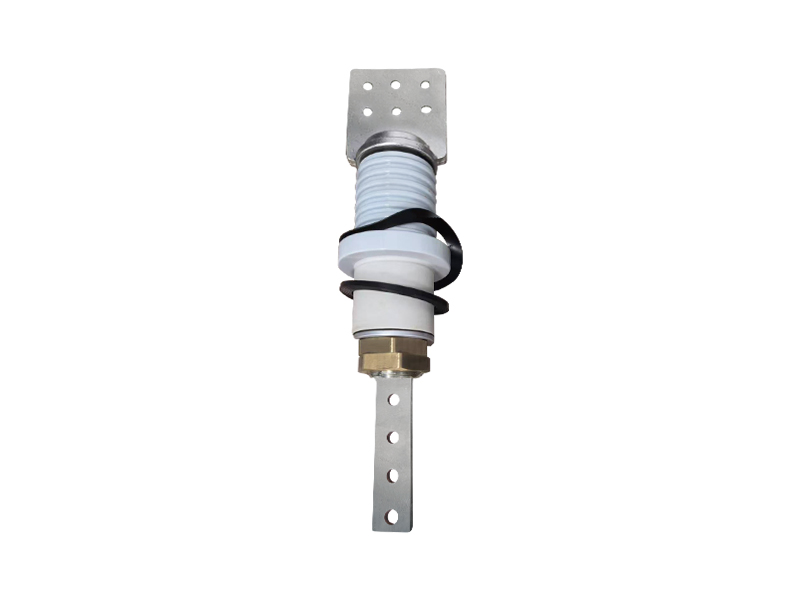

5kV 6000A ANSI Transformer Porcelain Bushing
- Details
ANSI HV Bushing Eye Bolt Built-in Flexible Wire
Information:
The Threaded Bushings for voltage of 5kV are supplied assembled with the respective porcelain, NBR gaskets, copper threaded rod, blued steel spin grip nut, zinc-plated brass connector and stainless steel lock washer and nut.
1.Material: porcelain insulator
2.Glaze color: light gray
3.Rated voltage: 5KV
4.Rated current: 6000A
5.Standard: ANSI
Model Explanation
High-voltage bushings are either oil-filled or condenser bushings. Oil-filled bushings have a central conducting rod or tube
through which the conductor passes. Around this, a series of insulating barriers are held apart by spacers. The barriers and spacers are enclosed in a skirted porcelain shell that is filled with oil. Condenser bushings are similar except that the central rod is wound with alternating layers of insulation and foil. This results in a path from the conductor to the case consisting of a series of condensers. The layers are designed to provide an approximately equal voltage drop between each condenser. In some condenser bushings, the whole bushing is enclosed in a skirted porcelain shell. Other types have only the exposed part of the bushing enclosed in the porcelain shell.
Our Advantage
* High voltage
* Good strength
* Good insulating properties
* Lightning-withstand
* Anti-corrosion
* Rustproof
* Mature brass processing
* Using bright tin makes it not easy to be scratched
