BWY-806 Series Oil Level Temperature Controller

If you are interested in our products or need technical supports and service,please contact us as bellowing:
This is an error tips
This is an error tips
This is an error tips
This is an error tips
This is an error tips
  • Details

BWY-806 series oil level temperature controller uses a new generation of "multi-turn spring tube" as the driving element, the instrument greatly improves the temperature measurement accuracy and service life. All stainless steel material gram body can effectively protect the internal components from environmental impact and dirt invasion.

Description:

Technical parameters

I. Execution standard: JB/T 6302-2016

II. Ambient temperature:-50℃-+55℃

III. Range:0~160℃

IV. Protection class : IP65

V. Indication accuracy : 1.5 grade

VI. Setting accuracy: ±2℃

VII. Dial graduation value: 2℃

VIII. Return value of travel switch: ≤8℃

IX. Insulation withstand voltage: between contacts and contact to ground, 2kV/1min

X. Contact capacity: AC 250V/5A

XI. Factory temperature design value: K1 = 50℃, K2 = 60℃, K3 = 75℃, K4 = 95℃, K5 = 115℃, K6 = 125℃.

XII. Junction box: Terminal should be able to access 2.5mm^2 cable.

XIII. Outlet hole thread:3*M25*1.5

XIV. Conforms to the transmitter:φ140mm*333mm

XV. Overall dimensions:Head 132mm*290mm*100mm

XVI. Shell color and material: Stainless steel natural color

XVII. Fastener material: stainless steel A4-70

XVIII. Capillary material: stainless steel, plus stainless steel jacket

XIX. Temperature package material: stainless steel 304



Product Model

Model

Capillary length/m

Dial Output Signal

Type

Warm pack form

BWY-806

6

/

compact

Simple Warm Bag

BWY-806A

6

1*PT100

BWY-806AA

6

2*PT100

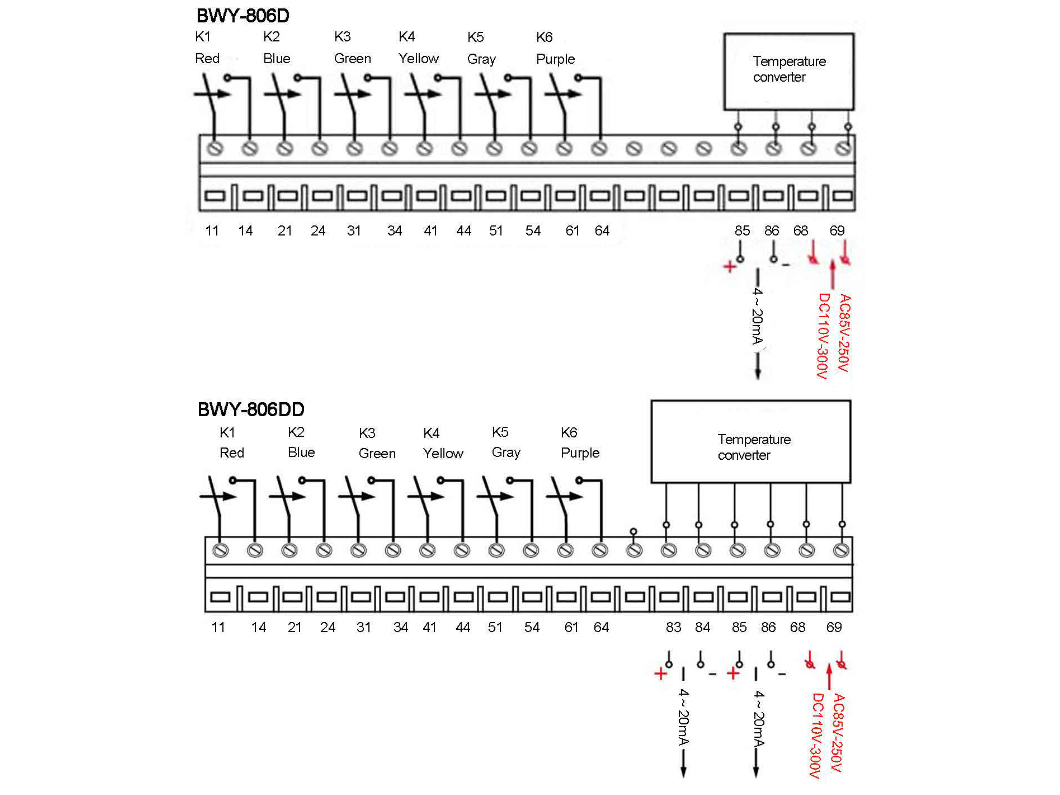

BWY-806D

6

1*4~20mA

BWY-806DD

6

2*4~20mA

BWY-806AD

6

1*PT100+1*4~20mA

BWY-806F

6

/

Combination

Used in conjunction with the PT-F15 transmitter

Note:Capillary length (generally 6m、9m、12m),others can be ordered by need.



Our Advantage

* Cheap

* Customization acceptable

* Good accuracy
