Transformer Bimetal Thermometer
- Details
Industrial bimetal thermometer is a measurement,the low temperature field testing industrial instrumentation, direct measurement of gas, liquid and vapor temperatures. This instrument has no harmful mercury, easy to read, durable and so on.

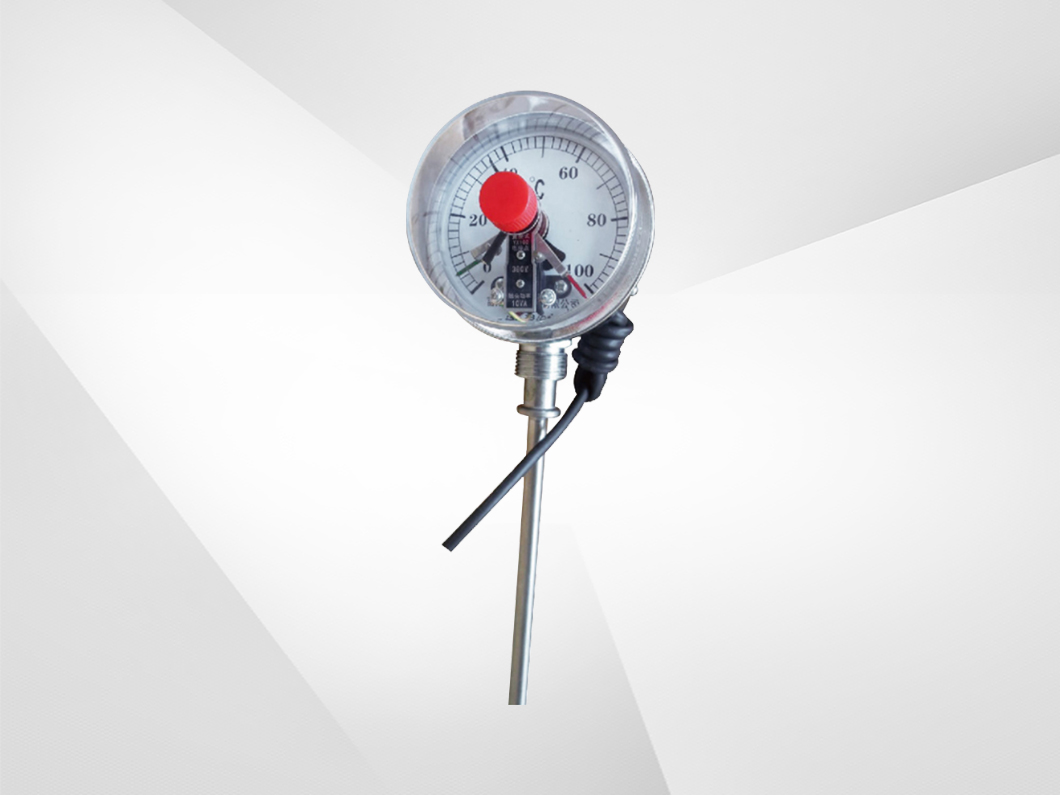

Electrical contacts bimetal thermometer is suitable for low,warm spot detection and automatic control instruments, can directly measure the temperature of the measured medium, and the temperature change of the measured medium or automatic control signals.
Model Number Indication
WSS ▢—▢▢▢
▢：Additional features
▢：Surface diameter
▢：Depending on the
▢：Installation
Diameter | Code | Reading Direction | Code | Installation | Code | Additional Features | Code |
Φ60 | 3 | Radial directior | 1 | Activities external thread M27X2 | 1 | Electrical contacts | X |
Φ100 | 4 | Axial | 0 | Activities in the thread M27X2 | 2 | Outdoor | J |
Φ150 | 5 | 135℃ | 2 | Fixed mounting thread | 3 | Three anti-type | F |
Note:
1.Fixed mounting thread size, according to user needs.
2 can provide various types of users with special dedicated bimetallic thermometer.
3.461,462 Adjustable bimetallic thermometer, observing instrument according to need security header in the range of 90 degrees to adjust the tilt angle.
I. Accuracy class:1.5
II. Insertion depth：50-2000mm
III. Temperature range:-40℃-600℃
Product Model
WSS-411
WSS-411S
WSS-411BF/PT100
WSS-481BF
Our Advantage
* Cheap
* Customization acceptable
* Good accuracy
